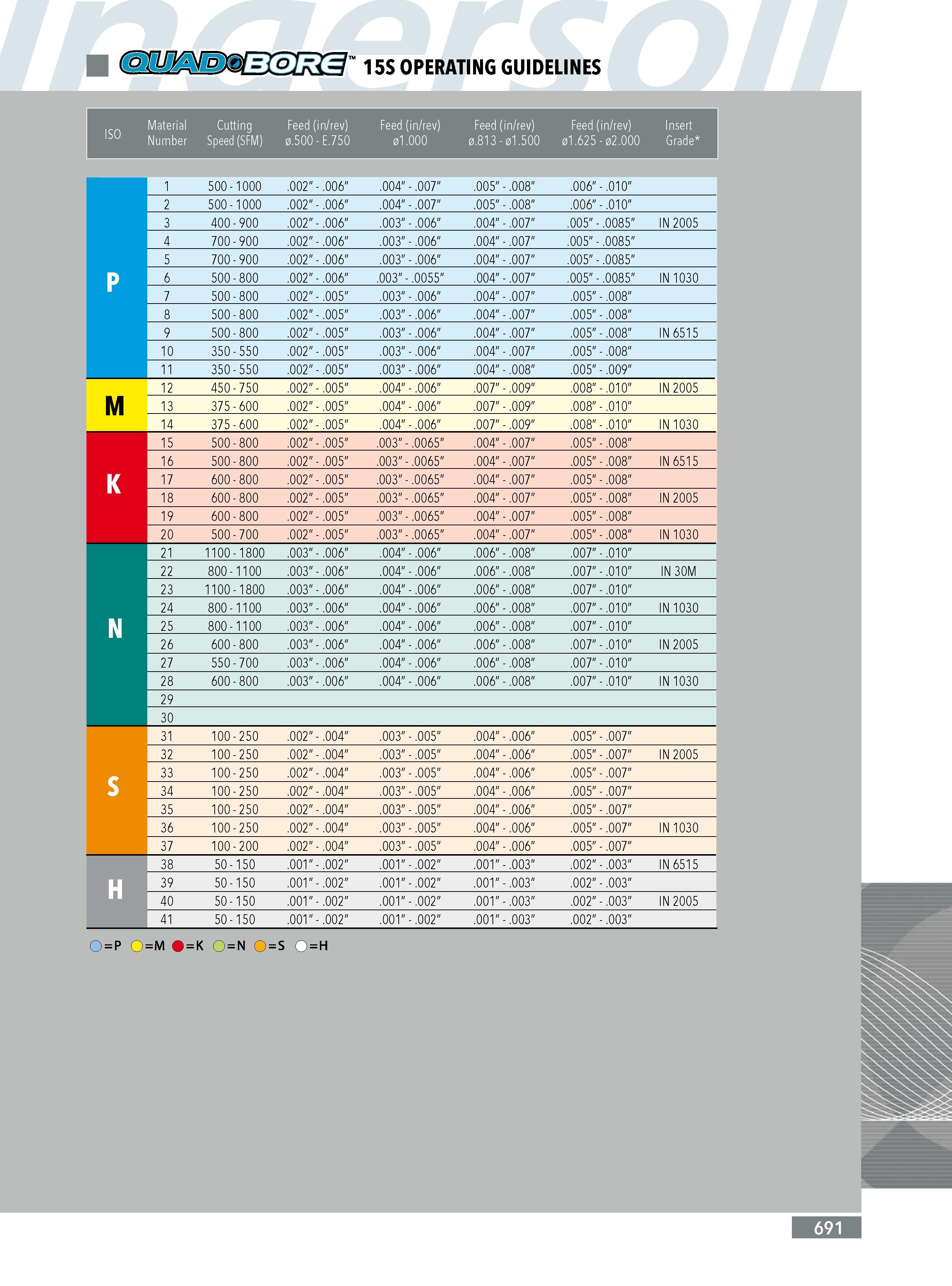

689 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.691 |
|||||
Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 691 0689 Lab2u 15S OPERATING GUIDELINES Material ISO Number Cutting Feed (in rev) Feed (in rev) Feed (in rev) Feed (in rev) Insert Speed (SFM) 0.500 - E.750 01.000 0.813 - 01.500 01.625 - 02.000 Grade 1 500 - 1000 .002" - .006" .004" - .007" .005" - .008" .006" - .010" 2 500 - 1000 .002" - .006" .004" - .007" .005" - .008" .006" - .010" 3 400 - 900 .002" - .006" .003" - .006" .004" - .007" .005" - .0085" IN 2005 4 700 - 900 .002" - .006" .003" - .006" .004" - .007" .005" - .0085" 5 700 - 900 .002" - .006" .003" - .006" .004" - .007" .005" - .0085" P 6 500 - 800 .002" - .006" .003" - .0055" .004" - .007" .005" - .0085" IN 1030 I 7 500 - 800 .002" - .005" .003" - .006" .004" - .007" .005" - .008" 8 500 - 800 .002" - .005" .003" - .006" .004" - .007" .005" - .008" 9 500 - 800 .002" - .005" .003" - .006" .004" - .007" .005" - .008" IN 6515 10 350 - 550 .002" - .005" .003" - .006" .004" - .007" .005" - .008" 11 350 - 550 .002" - .005" .003" - .006" .004" - .008" .005" - .009" 12 450 - 750 .002" - .005" .004" - .006" .007" - .009" .008" - .010" IN 2005 M 13 375 - 600 .002" - .005" .004" - .006" .007" - .009" .008" - .010" 14 375 - 600 .002" - .005" .004" - .006" .007" - .009" .008" - .010" IN 1030 15 500 - 800 .002" - .005" .003" - .0065" .004" - .007" .005" - .008" 16 500 - 800 .002" - .005" .003" - .0065" .004" - .007" .005" - .008" IN 6515 K 17 600 - 800 .002" - .005" .003" - .0065" .004" - .007" .005" - .008" 18 600 - 800 .002" - .005" .003" - .0065" .004" - .007" .005" - .008" IN 2005 19 600 - 800 .002" - .005" .003" - .0065" .004" - .007" .005" - .008" 20 500 - 700 .002" - .005" .003" - .0065" .004" - .007" .005" - .008" IN 1030 21 1100 - 1800 .003" - .006" .004" - .006" .006" - .008" .007" - .010" 22 800 - 1100 .003" - .006" .004" - .006" .006" - .008" .007" - .010" IN 30M 23 1100 - 1800 .003" - .006" .004" - .006" .006" - .008" .007" - .010" 24 800 - 1100 .003" - .006" .004" - .006" .006" - .008" .007" - .010" IN 1030 wm 25 800 - 1100 .003" - .006" .004" - .006" .006" - .008" .007" - .010" 26 600 - 800 .003" - .006" .004" - .006" .006" - .008" .007" - .010" IN 2005 27 550 - 700 .003" - .006" .004" - .006" .006" - .008" .007" - .010" 28 600 - 800 .003" - .006" .004" - .006" .006" - .008" .007" - .010" IN 1030 29 30 31 100 - 250 .002" - .004" .003" - .005" .004" - .006" .005" - .007" 32 100 - 250 .002" - .004" .003" - .005" .004" - .006" .005" - .007" IN 2005 33 100 - 250 .002" - .004" .003" - .005" .004" - .006" .005" - .007" S 34 100 - 250 .002" - .004" .003" - .005" .004" - .006" .005" - .007" 35 100 - 250 .002" - .004" .003" - .005" .004" - .006" .005" - .007" 36 100 - 250 .002" - .004" .003" - .005" .004" - .006" .005" - .007" IN 1030 37 100 - 200 .002" - .004" .003" - .005" .004" - .006" .005" - .007" 38 50 - 150 .001" - .002" .001" - .002" .001" - .003" .002" - .003" IN 6515 H 39 50 - 150 .001" - .002" .001" - .002" .001" - .003" .002" - .003" 40 50 - 150 .001" - .002" .001" - .002" .001" - .003" .002" - .003" IN 2005 41 50 - 150 .001" - .002" .001" - .002" .001" - .003" .002" - .003" Q P 0M (J N Q S 0 H 691 |
|||||
