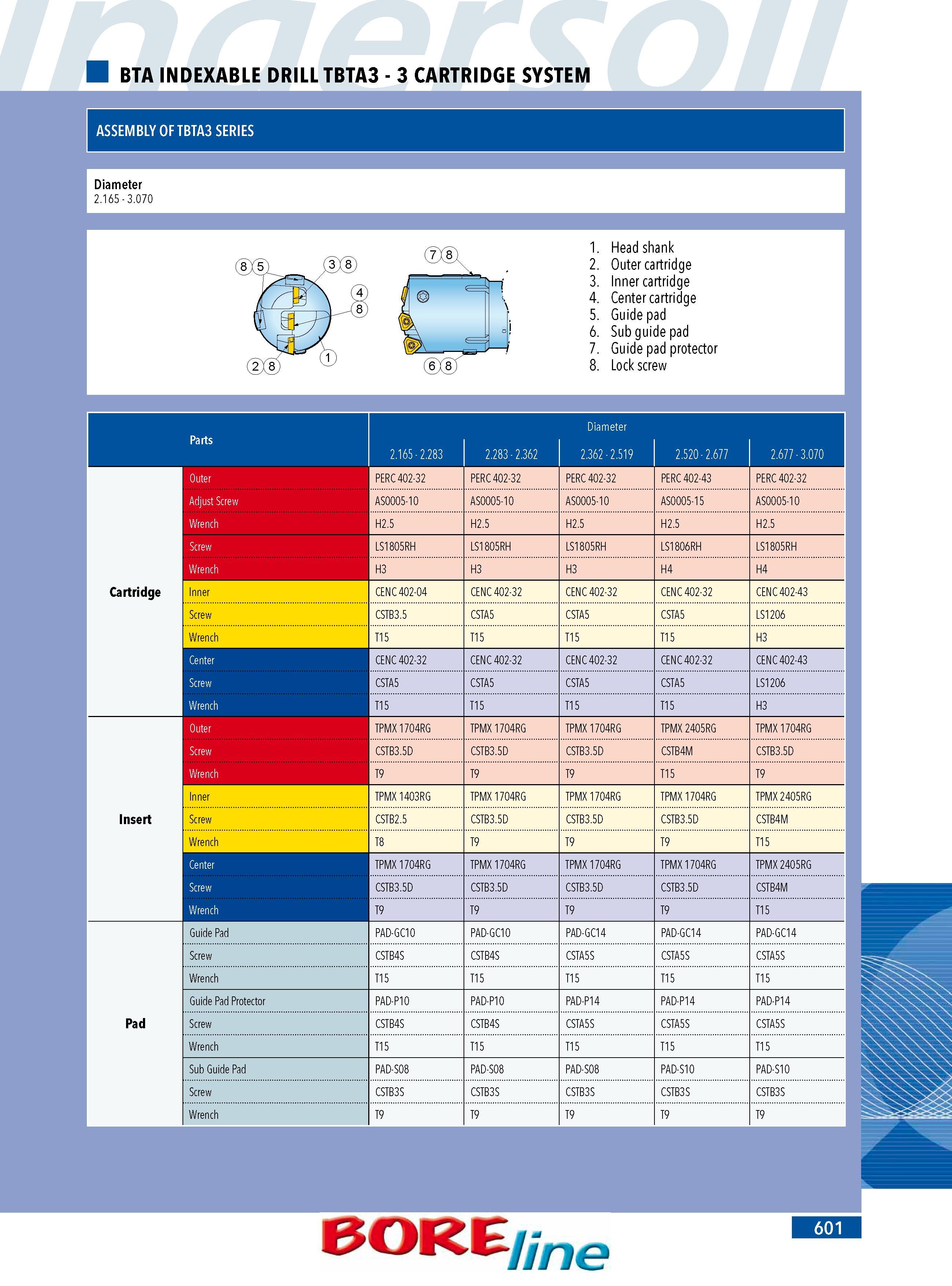

BTA INDEXABLE DRILL TBTA3 - 3 CARTRIDGE SYSTEM ASSEMBLY OF TBTA3 SERIES Diameter 2.165 - 3.070 (Tfs) 1. Head shank 2. Outer cartridge 3. Inner cartridge 4. Center cartridge 5. Guide pad 1 6. Sub guide pad W 7. Guide pad protector (i) 8. Lock screw Diameter 2.165 - 2.283 2.283 - 2.362 2.362 - 2.519 2.520 - 2.677 2.677 - 3.070 Outer PERC 402-32 PERC 402-32 PERC 402-32 PERC 402-43 PERC 402-32 Adjust Screw AS0005-10 AS0005-10 AS0005-10 AS0005-15 AS0005-10 Wrench H2.5 H2.5 H2.5 H2.5 H2.5 Screw LS1805RH LS1805RH LS1805RH LS1806RH LS1805RH H4 Wrench H3 H3 H3 H4 Cartridge Inner CENC 402-04 CENC 402-32 CENC 402-32 CENC 402-32 CENC 402-43 Screw CSTB3.5 CSTA5 CSTA5 CSTA5 LS1206 Wrench T15 T15 T15 T15 H3 Center CENC 402-32 CENC 402-32 CENC 402-32 CENC 402-32 CENC 402-43 Screw CSTA5 CSTA5 CSTA5 CSTA5 LS1206 Wrench T15 T15 T15 T15 H3 Outer TPMX1704RG TPMX 1704RG TPMX 1704RG TPMX 2405RG TPMX 1704RG Screw CSTB3.5D CSTB3.5D CSTB3.5D CSTB4M CSTB3.5D Wrench T9 T9 T9 T15 T9 Inner TPMX 1403RG TPMX 1704RG TPMX 1704RG TPMX 1704RG TPMX 2405RG Insert Screw CSTB2.5 CSTB3.5D CSTB3.5D CSTB3.5D CSTB4M Wrench T8 T9 T9 T9 T15 Center TPMX 1704RG TPMX 1704RG TPMX 1704RG TPMX 1704RG TPMX 2405RG Screw CSTB3.5D CSTB3.5D CSTB3.5D CSTB3.5D CSTB4M Wrench T9 T9 T9 T9 T15 Guide Pad PAD-GC10 PAD-GC10 PAD-GC14 PAD-GC14 PAD-GC14 Screw CSTB4S CSTB4S CSTA5S CSTA5S CSTA5S Wrench T15 T15 T15 T15 T15 Guide Pad Protector PAD-P10 PAD-P10 PAD-P14 PAD-P14 PAD-P14 Pad Screw CSTB4S CSTB4S CSTA5S CSTA5S CSTA5S Wrench T15 T15 T15 T15 T15 Sub Guide Pad PAD-S08 PAD-S08 PAD-S08 PAD-S10 PAD-S10 Screw CSTB3S CSTB3S CSTB3S CSTB3S CSTB3S Wrench T9 T9 T9 T9 T9 BORE ne 601
