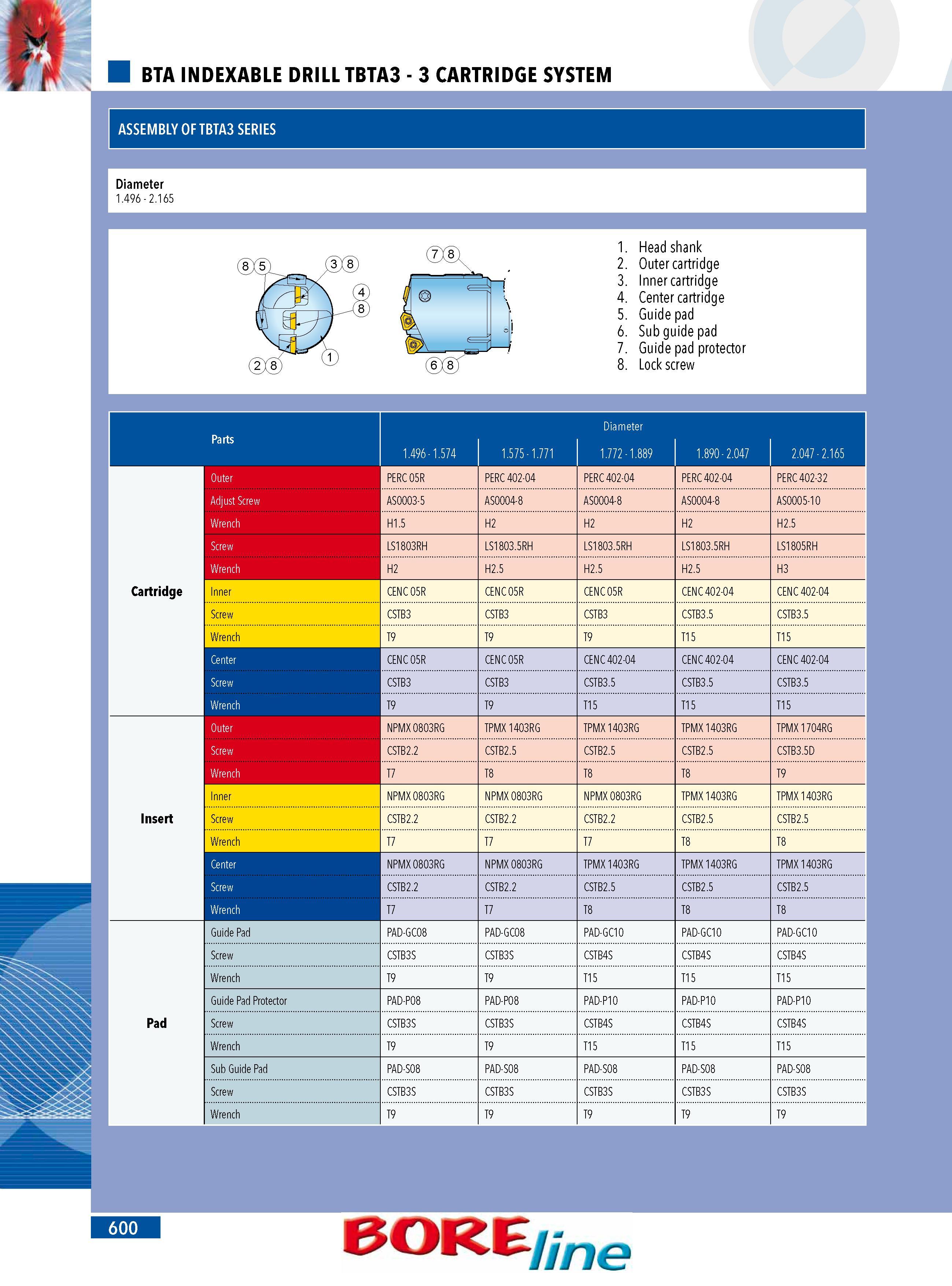

BTA INDEXABLE DRILL TBTA3 - 3 CARTRIDGE SYSTEM ASSEMBLY OF TBTA3 SERIES Diameter 1.496 - 2.165 Head shank Outer cartridge Inner cartridge Center cartridge Guide pad Sub guide pad Guide pad protector Lock screw 8 Parts Diameter 1.496 - 1.574 1.575 - 1.771 1.772 - 1.889 1.890 - 2.047 2.047 - 2.165 Outer PERC05R PERC 402-04 PERC 402-04 PERC 402-04 PERC 402-32 Adjust Screw AS0003-5 AS0004-8 AS0004-8 AS0004-8 AS0005-10 Wrench H1.5 H2 H2 H2 H2.5 Screw LS1803RH LS1803.5RH LS1803.5RH LS1803.5RH LS1805RH Wrench H2 H2.5 H2.5 H2.5 H3 Cartridge Inner CENC 05R CENC 05R CENC 05R CENC 402-04 CENC 402-04 Screw CSTB3 CSTB3 CSTB3 CSTB3.5 CSTB3.5 Wrench T9 T9 T9 T15 T15 Center CENC 05R CENC 05R CENC 402-04 CENC 402-04 CENC 402-04 Screw CSTB3 CSTB3 CSTB3.5 CSTB3.5 CSTB3.5 Wrench T9 T9 T15 T15 T15 Outer NPMX 0803RG TPMX1403RG TPMX 1403RG TPMX 1403RG TPMX 1704RG Screw CSTB2.2 CSTB2.5 CSTB2.5 CSTB2.5 CSTB3.5D Wrench T7 T8 T8 T8 T9 Inner NPMX 0803RG NPMX 0803RG NPMX 0803RG TPMX 1403RG TPMX 1403RG Insert Screw CSTB2.2 CSTB2.2 CSTB2.2 CSTB2.5 CSTB2.5 Wrench T7 T7 T7 T8 T8 Center NPMX 0803RG NPMX 0803RG TPMX 1403RG TPMX 1403RG TPMX 1403RG Screw CSTB2.2 CSTB2.2 CSTB2.5 CSTB2.5 CSTB2.5 Wrench T7 T7 T8 T8 T8 Guide Pad PAD-GC08 PAD-GC08 PAD-GC10 PAD-GC10 PAD-GC10 Screw CSTB3S CSTB3S CSTB4S CSTB4S CSTB4S Wrench T9 T9 T15 T15 T15 Guide Pad Protector PAD-P08 PAD-P08 PAD-P10 PAD-P10 PAD-P10 Pad Screw CSTB3S CSTB3S CSTB4S CSTB4S CSTB4S Wrench T9 T9 T15 T15 T15 Sub Guide Pad PAD-S08 PAD-S08 PAD-S08 PAD-S08 PAD-S08 Screw CSTB3S CSTB3S CSTB3S CSTB3S CSTB3S Wrench T9 T9 T9 T9 T9 600 BORE ne
