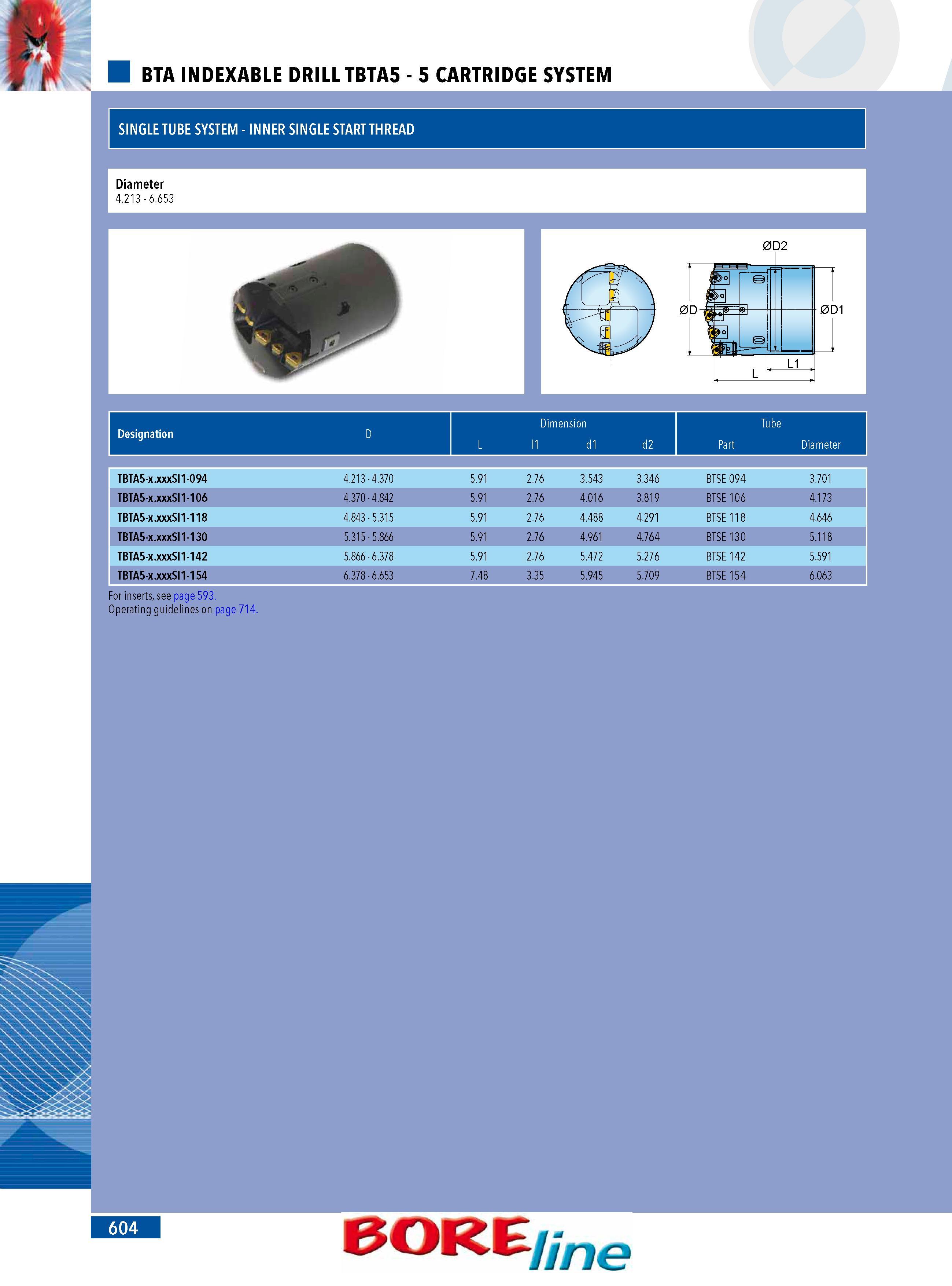

602 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.604

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 604 0602 Lab2u

BTA INDEXABLE DRILL TBTA5 - 5 CARTRIDGE SYSTEM SINGLE TUBE SYSTEM - INNER SINGLE START THREAD Diameter 4.213 - 6.653 D Dimension Tube Designation L 11 d1 d2 Part Diameter TBTA5-x.xxxSI1-094 4.213 - 4.370 5.91 2.76 3.543 3.346 BTSE 094 3.701 TBTA5-x.xxxSI1-106 4.370 - 4.842 5.91 2.76 4.016 3.819 BTSE 106 4.173 TBTA5-x.xxxSI1-118 4.843 - 5.315 5.91 2.76 4.488 4.291 BTSE 118 4.646 TBTA5-x.xxxSI1-130 5.315 - 5.866 5.91 2.76 4.961 4.764 BTSE 130 5.118 TBTA5-x.xxxSI1-142 5.866 - 6.378 5.91 2.76 5.472 5.276 BTSE 142 5.591 TBTA5-x.xxxSI1-154 6.378 - 6.653 7.48 3.35 5.945 5.709 BTSE 154 6.063 For inserts see page 593. Operating guidelines on page 714. 604 0ORE ne
