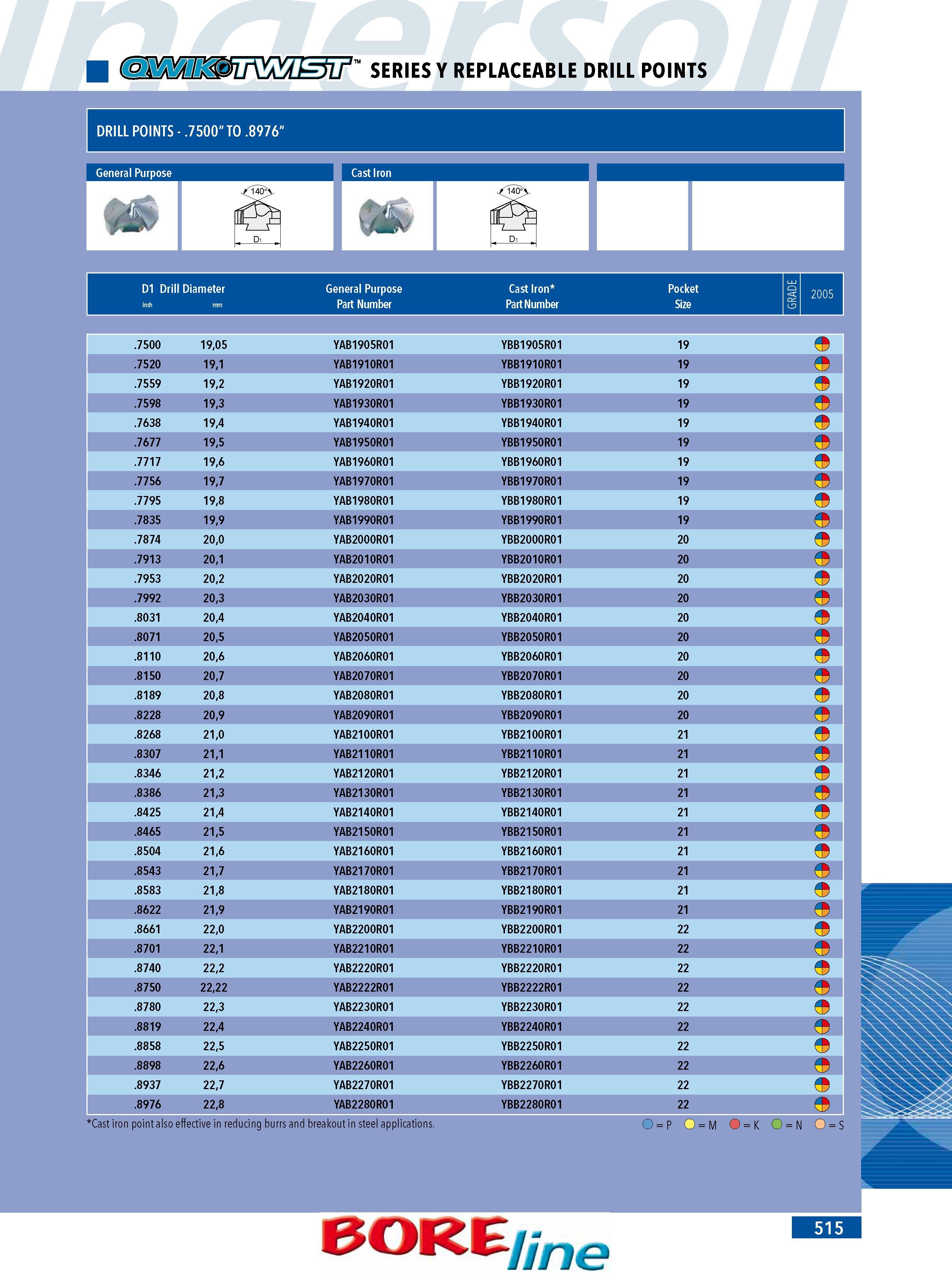

513 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.515

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 515 0513 Lab2u

SERIES Y REPLACEABLE DRILL POINTS Cast iron point also effective in reducing burrs and breakout in steel applications. D1 Drill Diameter inch mm General Purpose Part Number Cast Iron Part Number Pocket Size E 2005 GR .7500 1905 YAB1905R01 YBB1905R01 19 .7520 191 YAB1910R01 YBB1910R01 19 .7559 192 YAB1920R01 YBB1920R01 19 .7598 193 YAB1930R01 YBB1930R01 19 .7638 194 YAB1940R01 YBB1940R01 19 .7677 195 YAB1950R01 YBB1950R01 19 .7717 196 YAB1960R01 YBB1960R01 19 .7756 197 YAB1970R01 YBB1970R01 19 .7795 198 YAB1980R01 YBB1980R01 19 .7835 199 YAB1990R01 YBB1990R01 19 .7874 200 YAB2000R01 YBB2000R01 20 .7913 201 YAB2010R01 YBB2010R01 20 .7953 202 YAB2020R01 YBB2020R01 20 .7992 203 YAB2030R01 YBB2030R01 20 .8031 204 YAB2040R01 YBB2040R01 20 .8071 205 YAB2050R01 YBB2050R01 20 .8110 206 YAB2060R01 YBB2060R01 20 .8150 207 YAB2070R01 YBB2070R01 20 .8189 208 YAB2080R01 YBB2080R01 20 .8228 209 YAB2090R01 YBB2090R01 20 .8268 210 YAB2100R01 YBB2100R01 21 .8307 211 YAB2110R01 YBB2110R01 21 .8346 212 YAB2120R01 YBB2120R01 21 .8386 213 YAB2130R01 YBB2130R01 21 .8425 214 YAB2140R01 YBB2140R01 21 .8465 215 YAB2150R01 YBB2150R01 21 .8504 216 YAB2160R01 YBB2160R01 21 .8543 217 YAB2170R01 YBB2170R01 21 .8583 218 YAB2180R01 YBB2180R01 21 .8622 219 YAB2190R01 YBB2190R01 21 .8661 220 YAB2200R01 YBB2200R01 22 .8701 221 YAB2210R01 YBB2210R01 22 .8740 222 YAB2220R01 YBB2220R01 22 .8750 2222 YAB2222R01 YBB2222R01 22 .8780 223 YAB2230R01 YBB2230R01 22 .8819 224 YAB2240R01 YBB2240R01 22 .8858 225 YAB2250R01 YBB2250R01 22 .8898 226 YAB2260R01 YBB2260R01 22 .8937 227 YAB2270R01 YBB2270R01 22 .8976 228 YAB2280R01 YBB2280R01 22 O P O M O K O N O S
