511 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.513

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 513 0511 Lab2u

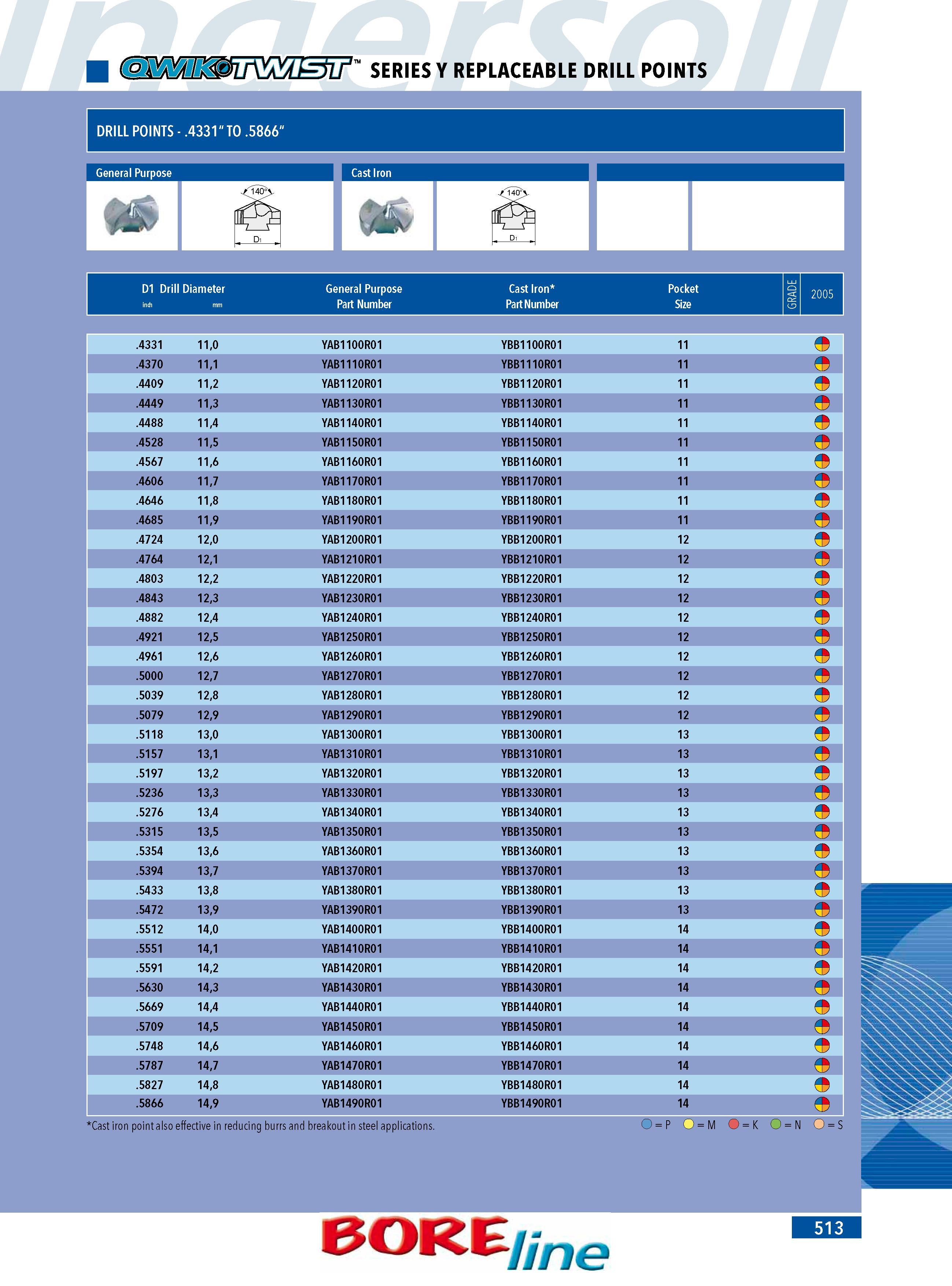

SERIES Y REPLACEABLE DRILL POINTS D1 Drill Diameter General Purpose Cast Iron Pocket E 2005 GR inch mm Part Number Part Number Size Cast iron point also effective in reducing burrs and breakout in steel applications. .4331 110 YAB1100R01 YBB1100R01 11 .4370 111 YAB1110R01 YBB1110R01 11 .4409 112 YAB1120R01 YBB1120R01 11 .4449 113 YAB1130R01 YBB1130R01 11 .4488 114 YAB1140R01 YBB1140R01 11 .4528 115 YAB1150R01 YBB1150R01 11 .4567 116 YAB1160R01 YBB1160R01 11 .4606 117 YAB1170R01 YBB1170R01 11 .4646 118 YAB1180R01 YBB1180R01 11 .4685 119 YAB1190R01 YBB1190R01 11 .4724 120 YAB1200R01 YBB1200R01 12 .4764 121 YAB1210R01 YBB1210R01 12 .4803 122 YAB1220R01 YBB1220R01 12 .4843 123 YAB1230R01 YBB1230R01 12 .4882 124 YAB1240R01 YBB1240R01 12 .4921 125 YAB1250R01 YBB1250R01 12 .4961 126 YAB1260R01 YBB1260R01 12 .5000 127 YAB1270R01 YBB1270R01 12 .5039 128 YAB1280R01 YBB1280R01 12 .5079 129 YAB1290R01 YBB1290R01 12 .5118 130 YAB1300R01 YBB1300R01 13 .5157 131 YAB1310R01 YBB1310R01 13 .5197 132 YAB1320R01 YBB1320R01 13 .5236 133 YAB1330R01 YBB1330R01 13 .5276 134 YAB1340R01 YBB1340R01 13 .5315 135 YAB1350R01 YBB1350R01 13 .5354 136 YAB1360R01 YBB1360R01 13 .5394 137 YAB1370R01 YBB1370R01 13 .5433 138 YAB1380R01 YBB1380R01 13 .5472 139 YAB1390R01 YBB1390R01 13 .5512 140 YAB1400R01 YBB1400R01 14 .5551 141 YAB1410R01 YBB1410R01 14 .5591 142 YAB1420R01 YBB1420R01 14 .5630 143 YAB1430R01 YBB1430R01 14 .5669 144 YAB1440R01 YBB1440R01 14 .5709 145 YAB1450R01 YBB1450R01 14 .5748 146 YAB1460R01 YBB1460R01 14 .5787 147 YAB1470R01 YBB1470R01 14 .5827 148 YAB1480R01 YBB1480R01 14 .5866 149 YAB1490R01 YBB1490R01 14 O P O M O K O N O S
