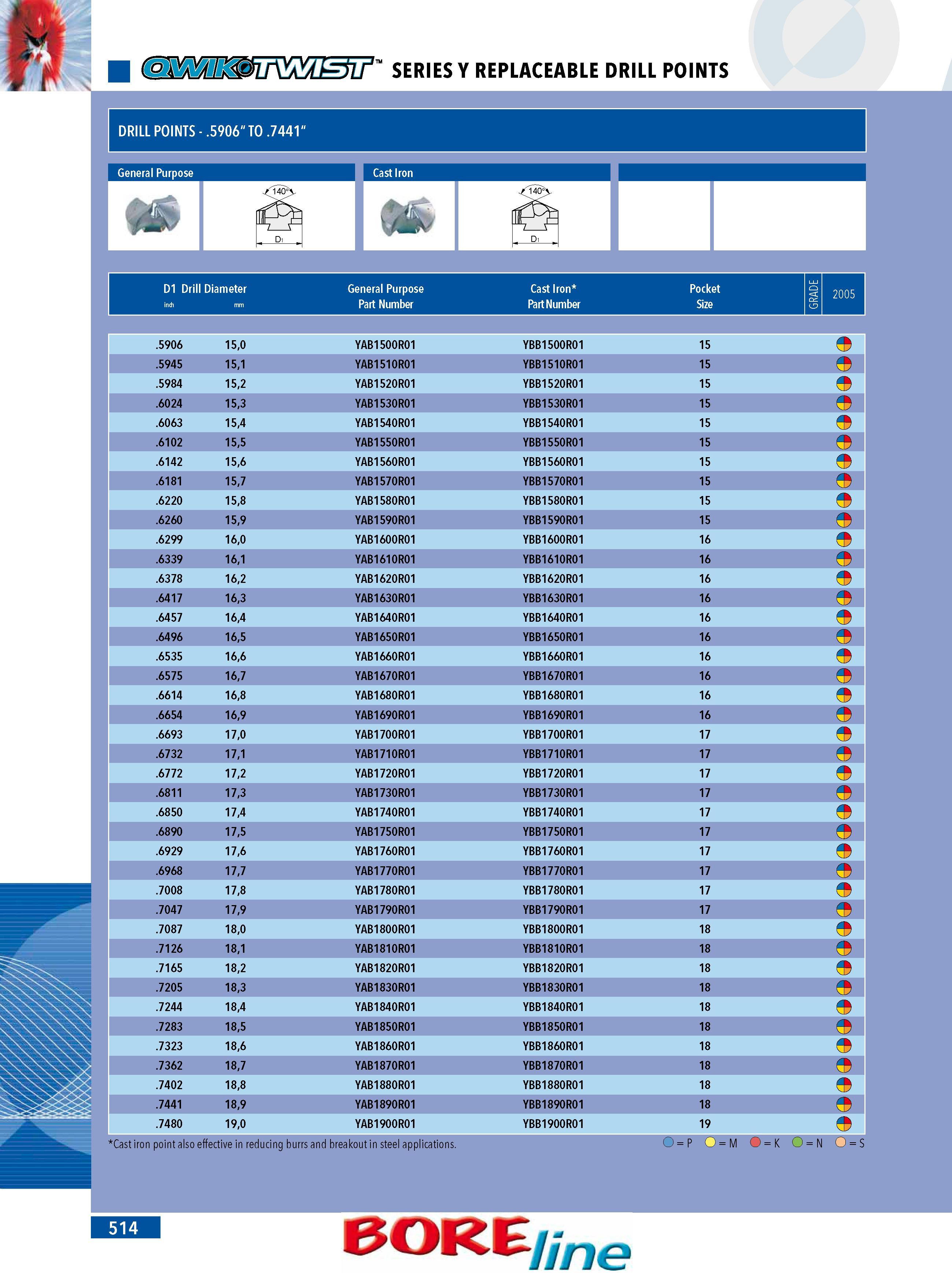

SERIES Y REPLACEABLE DRILL POINTS DRILL POINTS - .5906 TO .7441 General Purpose D1 Drill Diameter General Purpose Cast Iron Pocket E 2005 GR inch mm Part Number Part Number Size Cast iron point also effective in reducing burrs and breakout in steel applications. .5906 150 YAB1500R01 YBB1500R01 15 .5945 151 YAB1510R01 YBB1510R01 15 .5984 152 YAB1520R01 YBB1520R01 15 .6024 153 YAB1530R01 YBB1530R01 15 .6063 154 YAB1540R01 YBB1540R01 15 .6102 155 YAB1550R01 YBB1550R01 15 .6142 156 YAB1560R01 YBB1560R01 15 .6181 157 YAB1570R01 YBB1570R01 15 .6220 158 YAB1580R01 YBB1580R01 15 .6260 159 YAB1590R01 YBB1590R01 15 .6299 160 YAB1600R01 YBB1600R01 16 .6339 161 YAB1610R01 YBB1610R01 16 .6378 162 YAB1620R01 YBB1620R01 16 .6417 163 YAB1630R01 YBB1630R01 16 .6457 164 YAB1640R01 YBB1640R01 16 .6496 165 YAB1650R01 YBB1650R01 16 .6535 166 YAB1660R01 YBB1660R01 16 .6575 167 YAB1670R01 YBB1670R01 16 .6614 168 YAB1680R01 YBB1680R01 16 .6654 169 YAB1690R01 YBB1690R01 16 .6693 170 YAB1700R01 YBB1700R01 17 .6732 171 YAB1710R01 YBB1710R01 17 .6772 172 YAB1720R01 YBB1720R01 17 .6811 173 YAB1730R01 YBB1730R01 17 .6850 174 YAB1740R01 YBB1740R01 17 .6890 175 YAB1750R01 YBB1750R01 17 .6929 176 YAB1760R01 YBB1760R01 17 .6968 177 YAB1770R01 YBB1770R01 17 .7008 178 YAB1780R01 YBB1780R01 17 .7047 179 YAB1790R01 YBB1790R01 17 .7087 180 YAB1800R01 YBB1800R01 18 .7126 181 YAB1810R01 YBB1810R01 18 .7165 182 YAB1820R01 YBB1820R01 18 .7205 183 YAB1830R01 YBB1830R01 18 .7244 184 YAB1840R01 YBB1840R01 18 .7283 185 YAB1850R01 YBB1850R01 18 .7323 186 YAB1860R01 YBB1860R01 18 .7362 187 YAB1870R01 YBB1870R01 18 .7402 188 YAB1880R01 YBB1880R01 18 .7441 189 YAB1890R01 YBB1890R01 18 .7480 190 YAB1900R01 YBB1900R01 19 O P O M O K O N O S BOREine
