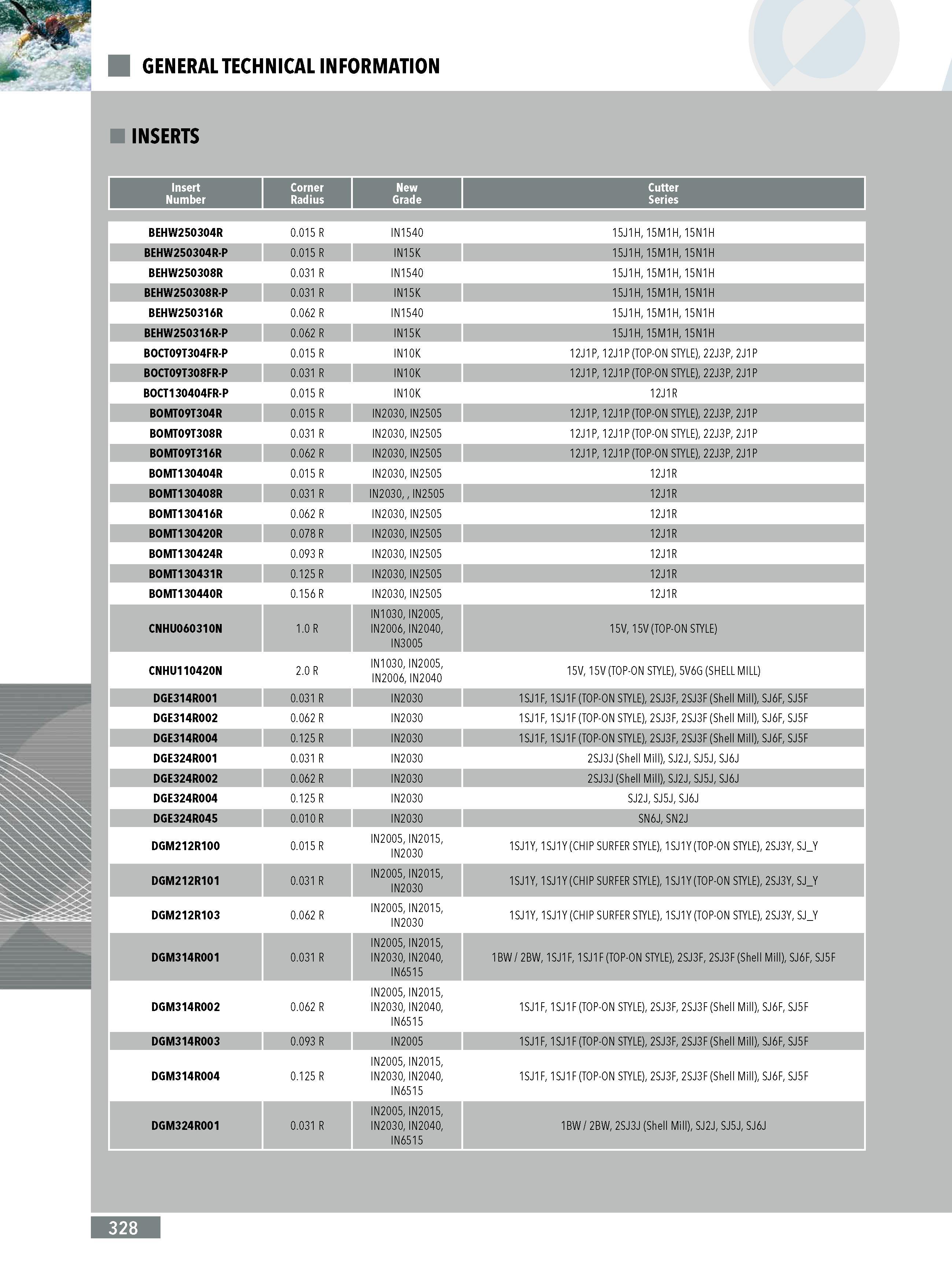

GENERAL TECHNICAL INFORMATION INSERTS Insert Corner New Cutter Number Radius Grade Series BEHW250304R 0.015 R IN1540 15J1H 15M1H 15N1H BEHW250304R-P 0.015 R IN15K 15J1H 15M1H 15N1H BEHW250308R 0.031 R IN1540 15J1H 15M1H 15N1H BEHW250308R-P 0.031 R IN15K 15J1H 15M1H 15N1H BEHW250316R 0.062 R IN1540 15J1H 15M1H 15N1H BEHW250316R-P 0.062 R IN15K 15J1H 15M1H 15N1H BOCT09T304FR-P 0.015 R IN10K 12J1P 12J1P (TOP-ON STYLE) 22J3P 2J1P BOCT09T308FR-P 0.031 R IN10K 12J1P 12J1P (TOP-ON STYLE) 22J3P 2J1P BOCT130404FR-P 0.015 R IN10K 12J1R BOMT09T304R 0.015 R IN2030 IN2505 12J1P 12J1P (TOP-ON STYLE) 22J3P 2J1P BOMT09T308R 0.031 R IN2030 IN2505 12J1P 12J1P (TOP-ON STYLE) 22J3P 2J1P BOMT09T316R 0.062 R IN2030 IN2505 12J1P 12J1P (TOP-ON STYLE) 22J3P 2J1P BOMT130404R 0.015 R IN2030 IN2505 12J1R BOMT130408R 0.031 R IN2030 IN2505 12J1R BOMT130416R 0.062 R IN2030 IN2505 12J1R BOMT130420R 0.078 R IN2030 IN2505 12J1R BOMT130424R 0.093 R IN2030 IN2505 12J1R BOMT130431R 0.125 R IN2030 IN2505 12J1R BOMT130440R 0.156 R IN2030 IN2505 12J1R CNHU060310N 1.0 R IN1030 IN2005 IN2006 IN2040 IN3005 15V 15V (TOP-ON STYLE) CNHU110420N 2.0 R IN1030 IN2005 IN2006 IN2040 15 V 15V (TOP-ON STYLE) 5V6G (SHELL MILL) DGE314R001 0.031 R IN2030 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGE314R002 0.062 R IN2030 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGE314R004 0.125 R IN2030 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGE324R001 0.031 R IN2030 2SJ3J (SheII MiII) SJ2J SJ5J SJ6J DGE324R002 0.062 R IN2030 2SJ3J (SheII MiII) SJ2J SJ5J SJ6J DGE324R004 0.125 R IN2030 SJ2JSJ5J SJ6J DGE324R045 0.010 R IN2030 SN6J SN2J DGM212R100 0.015 R IN2005 IN2015 IN2030 1SJ1Y 1SJ1Y (CHIP SURFER STYLE) 1SJ1Y (TOP-ON STYLE) 2SJ3Y SJY DGM212R101 0.031 R IN2005 IN2015 IN2030 1SJ1Y 1SJ1Y (CHIP SURFER STYLE) 1SJ1Y (TOP-ON STYLE) 2SJ3Y SJY DGM212R103 0.062 R IN2005 IN2015 IN2030 1SJ1Y 1SJ1Y (CHIP SURFER STYLE) 1SJ1Y (TOP-ON STYLE) 2SJ3Y SJY DGM314R001 0.031 R IN2005 IN2015 IN2030 IN2040 IN6515 1BW 2BW 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGM314R002 0.062 R IN2005 IN2015 IN2030 IN2040 IN6515 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGM314R003 0.093 R IN2005 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGM314R004 0.125 R IN2005 IN2015 IN2030 IN2040 IN6515 1SJ1F 1SJ1F (TOP-ON STYLE) 2SJ3F 2SJ3F (SheII MiII) SJ6F SJ5F DGM324R001 0.031 R IN2005 IN2015 IN2030 IN2040 IN6515 1BW 2BW 2SJ3J (SheII MiII) SJ2J SJ5J SJ6J 328
