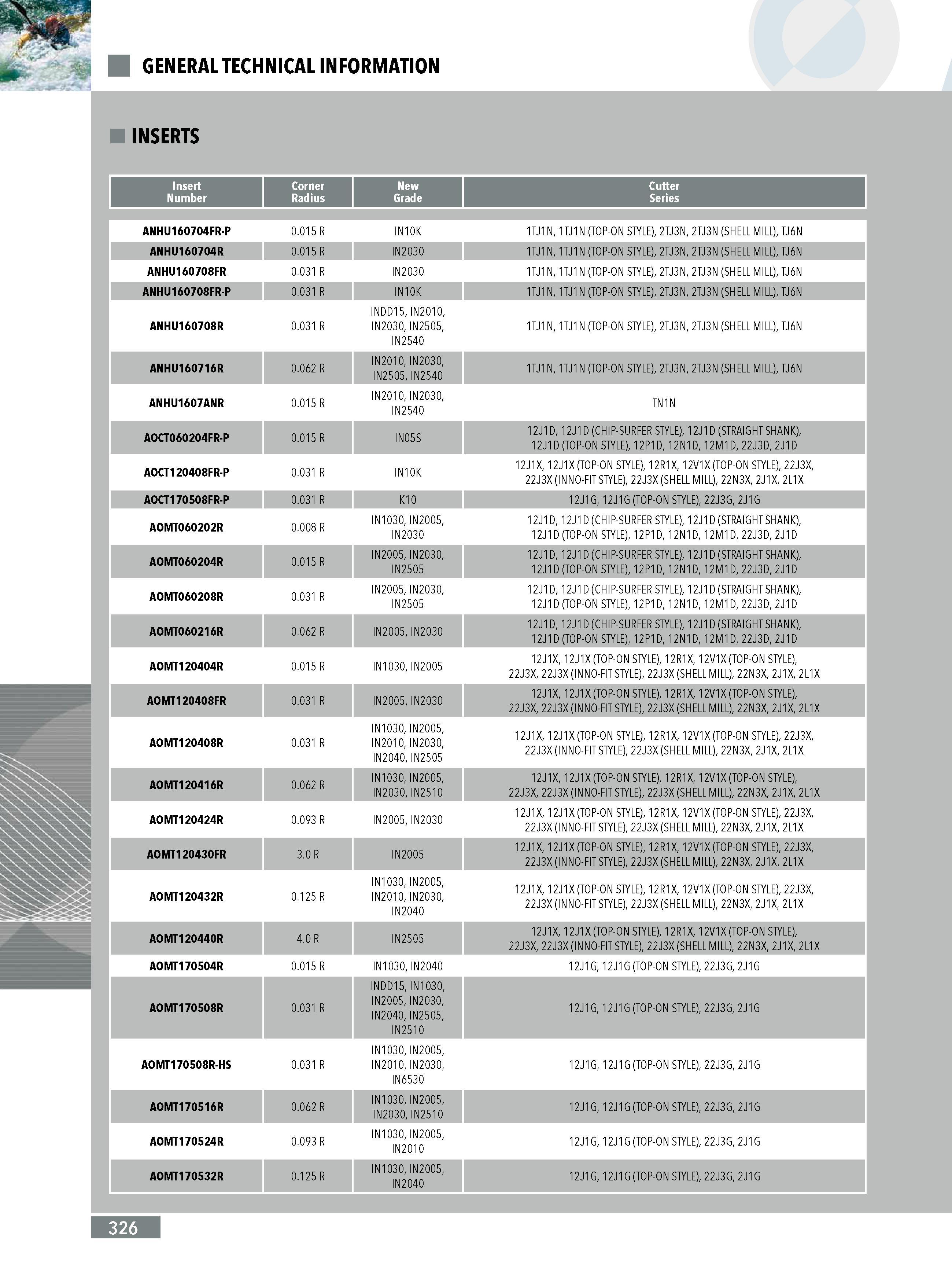

GENERAL TECHNICAL INFORMATION INSERTS Insert Corner New Cutter Number Radius Grade Series ANHU160704FR-P 0.015 R IN10K 1TJ1N 1TJ1N (TOP-ON STYLE) 2TJ3N 2TJ3N (SHELL MILL) TJ6N ANHU160704R 0.015 R IN2030 1TJ1N 1TJ1N (TOP-ON STYLE) 2TJ3N 2TJ3N (SHELL MILL) TJ6N ANHU160708FR 0.031 R IN2030 1TJ1N 1TJ1N (TOP-ON STYLE) 2TJ3N 2TJ3N (SHELL MILL) TJ6N ANHU160708FR-P 0.031 R IN10K 1TJ1N 1TJ1N (TOP-ON STYLE) 2TJ3N 2TJ3N (SHELL MILL) TJ6N ANHU160708R 0.031 R INDD15 IN2010 IN2030 IN2505 IN2540 1TJ1N 1TJ1N (TOP-ON STYLE) 2TJ3N 2TJ3N (SHELL MILL) TJ6N ANHU160716R 0.062 R IN2010 IN2030 IN2505 IN2540 1TJ1N 1TJ1N (TOP-ON STYLE) 2TJ3N 2TJ3N (SHELL MILL) TJ6N ANHU1607ANR 0.015 R IN2010 IN2030 IN2540 TN1N AOCT060204FR-P 0.015 R IN05S 12J1D 12J1D (CHIP-SURFER STYLE) 12J1D (STRAIGHT SHANK) 12J1D (TOP-ON STYLE) 12P1D 12N1D 12M1D 22J3D 2J1D AOCT120408FR-P 0.031 R IN10K 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X (INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOCT170508FR-P 0.031 R K10 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G AOMT060202R 0.008 R IN1030 IN2005 IN2030 12J1D 12J1D (CHIP-SURFER STYLE) 12J1D (STRAIGHT SHANK) 12J1D (TOP-ON STYLE) 12P1D 12N1D 12M1D 22J3D 2J1D AOMT060204R 0.015 R IN2005 IN2030 IN2505 12J1D 12J1D (CHIP-SURFER STYLE) 12J1D (STRAIGHT SHANK) 12J1D (TOP-ON STYLE) 12P1D 12N1D 12M1D 22J3D 2J1D AOMT060208R 0.031 R IN2005 IN2030 IN2505 12J1D 12J1D (CHIP-SURFER STYLE) 12J1D (STRAIGHT SHANK) 12J1D (TOP-ON STYLE) 12P1D 12N1D 12M1D 22J3D 2J1D AOMT060216R 0.062 R IN2005 IN2030 12J1D 12J1D (CHIP-SURFER STYLE) 12J1D (STRAIGHT SHANK) 12J1D (TOP-ON STYLE) 12P1D 12N1D 12M1D 22J3D 2J1D AOMT120404R 0.015 R IN1030 IN2005 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X(INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120408FR 0.031 R IN2005 IN2030 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X(INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120408R 0.031 R IN1030 IN2005 IN2010 IN2030 IN2040 IN2505 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X (INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120416R 0.062 R IN1030 IN2005 IN2030 IN2510 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X(INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120424R 0.093 R IN2005 IN2030 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X (INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120430FR 3.0 R IN2005 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X (INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120432R 0.125 R IN1030 IN2005 IN2010 IN2030 IN2040 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X (INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT120440R 4.0 R IN2505 12J1X 12J1X (TOP-ON STYLE) 12R1X 12V1X (TOP-ON STYLE) 22J3X 22J3X(INNO-FIT STYLE) 22J3X (SHELL MILL) 22N3X 2J1X 2L1X AOMT170504R 0.015 R IN1030 IN2040 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G INDD15 IN1030 AOMT170508R 0.031 R IN2005 IN2030 IN2040 IN2505 IN2510 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G AOMT170508R-HS 0.031 R IN1030 IN2005 IN2010 IN2030 IN6530 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G AOMT170516R 0.062 R IN1030 IN2005 IN2030 IN2510 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G AOMT170524R 0.093 R IN1030 IN2005 IN2010 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G AOMT170532R 0.125 R IN1030 IN2005 IN2040 12J1G 12J1G (TOP-ON STYLE) 22J3G 2J1G 326
