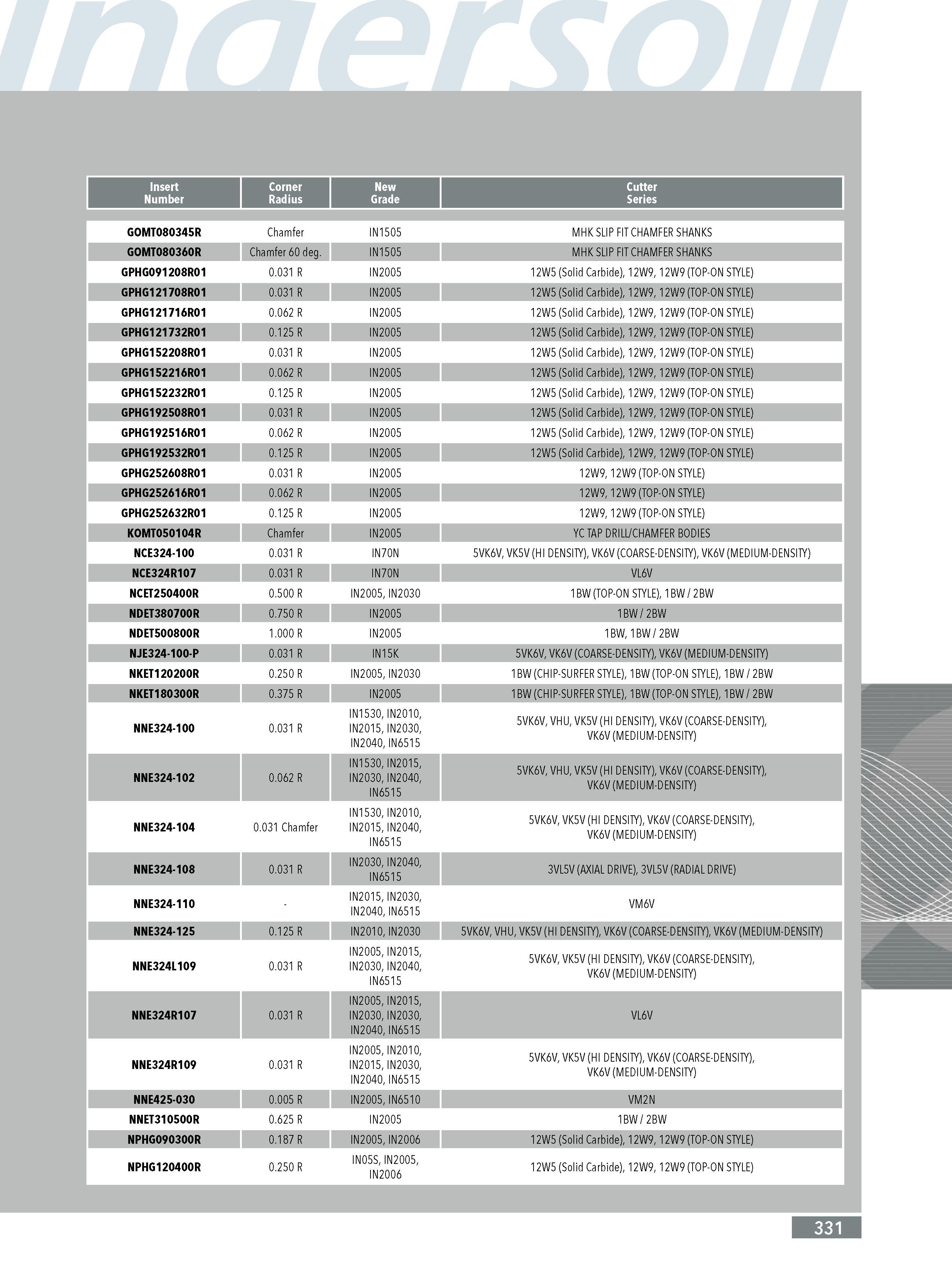

Insert Corner New Cutter Number Radius Grade Series GOMT080345R Chamfer IN1505 MHK SLIP FIT CHAMFER SHANKS GOMT080360R Chamfer 60 deg. IN1505 MHK SLIP FIT CHAMFER SHANKS GPHG091208R01 0.031 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG121708R01 0.031 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG121716R01 0.062 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG121732R01 0.125 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG152208R01 0.031 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG152216R01 0.062 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG152232R01 0.125 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG192508R01 0.031 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG192516R01 0.062 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG192532R01 0.125 R IN2005 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) GPHG252608R01 0.031 R IN2005 12W9 12W9 (TOP-ON STYLE) GPHG252616R01 0.062 R IN2005 12W9 12W9 (TOP-ON STYLE) GPHG252632R01 0.125 R IN2005 12W9 12W9 (TOP-ON STYLE) KOMT050104R Chamfer IN2005 YC TAP DRILL CHAMFER BODIES NCE324-100 0.031 R IN70N 5VK6V VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NCE324R107 0.031 R IN70N VL6V NCET250400R 0.500 R IN2005 IN2030 1BW (TOP-ON STYLE) 1BW 2BW NDET380700R 0.750 R IN2005 1BW 2BW NDET500800R 1.000 R IN2005 1BW 1BW 2BW NJE324-100-P 0.031 R IN15K 5VK6V VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NKET120200R 0.250 R IN2005 IN2030 1BW (CHIP-SURFER STYLE) 1BW (TOP-ON STYLE) 1BW 2BW NKET180300R 0.375 R IN2005 1BW (CHIP-SURFER STYLE) 1BW (TOP-ON STYLE) 1BW 2BW NNE324-100 0.031 R IN1530 IN2010 IN2015 IN2030 IN2040 IN6515 5VK6V VHU VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NNE324-102 0.062 R IN1530 IN2015 IN2030 IN2040 IN6515 5VK6V VHU VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NNE324-104 0.031 Chamfer IN1530 IN2010 IN2015 IN2040 IN6515 5VK6V VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NNE324-108 0.031 R IN2030 IN2040 IN6515 3VL5V (AXIAL DRIVE) 3VL5V (RADIAL DRIVE) NNE324-110 IN2015 IN2030 IN2040 IN6515 VM6V NNE324-125 0.125 R IN2010 IN2030 5VK6V VHU VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NNE324L109 0.031 R IN2005 IN2015 IN2030 IN2040 IN6515 5VK6V VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) IN2005 IN2015 NNE324R107 0.031 R IN2030 IN2030 IN2040 IN6515 VL6V NNE324R109 0.031 R IN2005 IN2010 IN2015 IN2030 IN2040 IN6515 5VK6V VK5V (HI DENSITY) VK6V (COARSE-DENSITY) VK6V (MEDIUM-DENSITY) NNE425-030 0.005 R IN2005 IN6510 VM2N NNET310500R 0.625 R IN2005 1BW 2BW NPHG090300R 0.187 R IN2005 IN2006 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) NPHG120400R 0.250 R IN05S IN2005 IN2006 12W5 (SoIid Carbide) 12W9 12W9 (TOP-ON STYLE) 331
