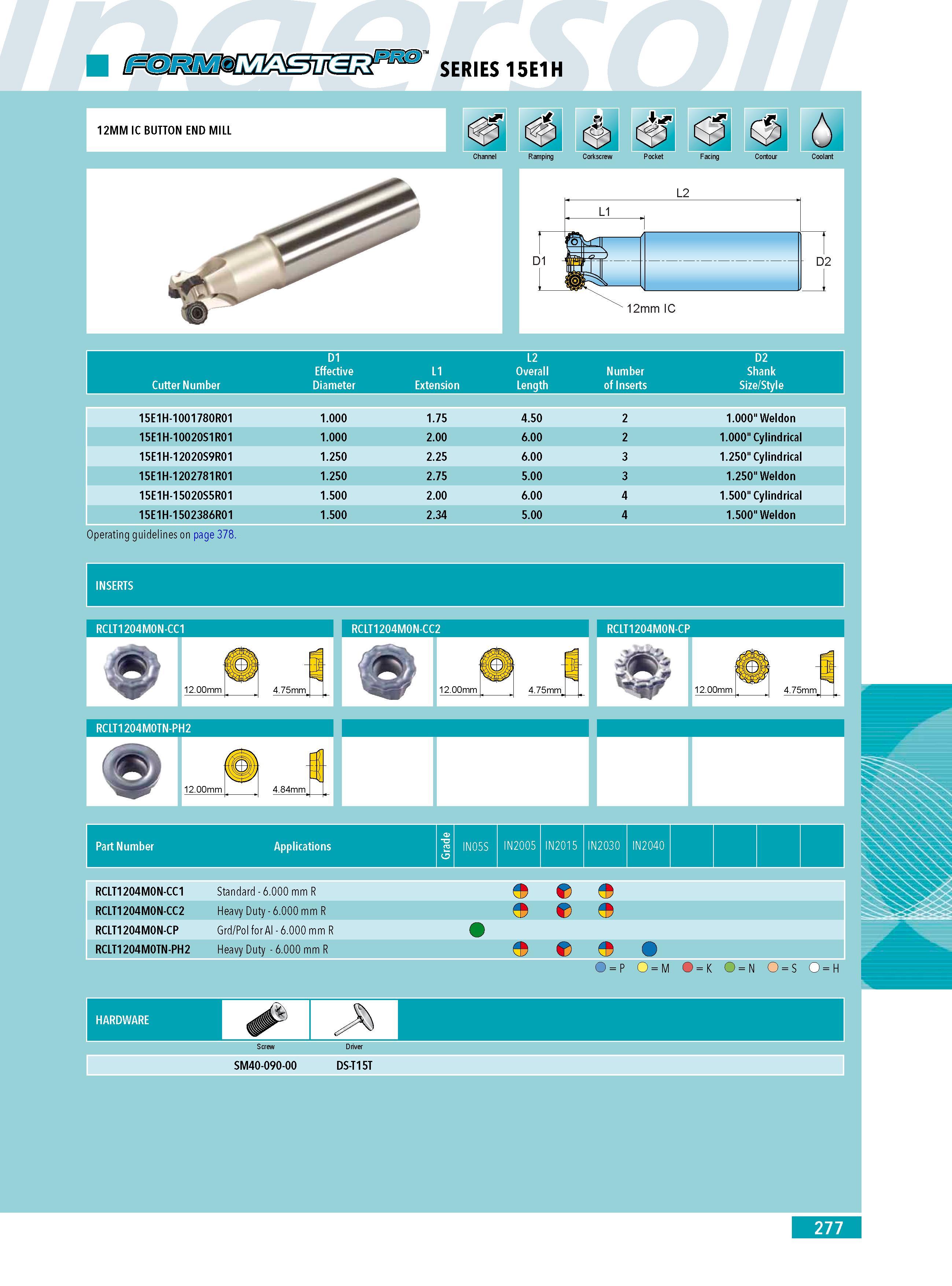

D1 L2 D2 Effective L1 Overall Number Shank Cutter Number Diameter Extension Length of Inserts Size Style 15E1H-1001780R01 1.000 1.75 4.50 2 1.000" Weldon 15E1H-10020S1R01 1.000 2.00 6.00 2 1.000" Cylindrical 15E1H-12020S9R01 1.250 2.25 6.00 3 1.250" Cylindrical 15E1H-1202781R01 1.250 2.75 5.00 3 1.250" Weldon 15E1H-15020S5R01 1.500 2.00 6.00 4 1.500" Cylindrical 15E1H-1502386R01 1.500 2.34 5.00 4 1.500" Weldon Operating guidelines on page 378. RCLT1204M0N-CC1 4.75mm RCLT1204M0N-CC2 RCLT1204M0N-CP s 4.75mm RCLT1204M0TN-PH2 Part Number Applications IN05S IN2005 IN2015 IN2030 IN2040 RCLT1204M0N-CC1 Standard - 6.000 mm R RCLT1204M0N-CC2 Heavy Duty - 6.000 mm R c rCLT1204M0N-CP Grd Pol for Al - 6.000 mm R RCLT1204M0TN-PH2 Heavy Duty - 6.000 mm R O P O M O K O N O S O H 277
