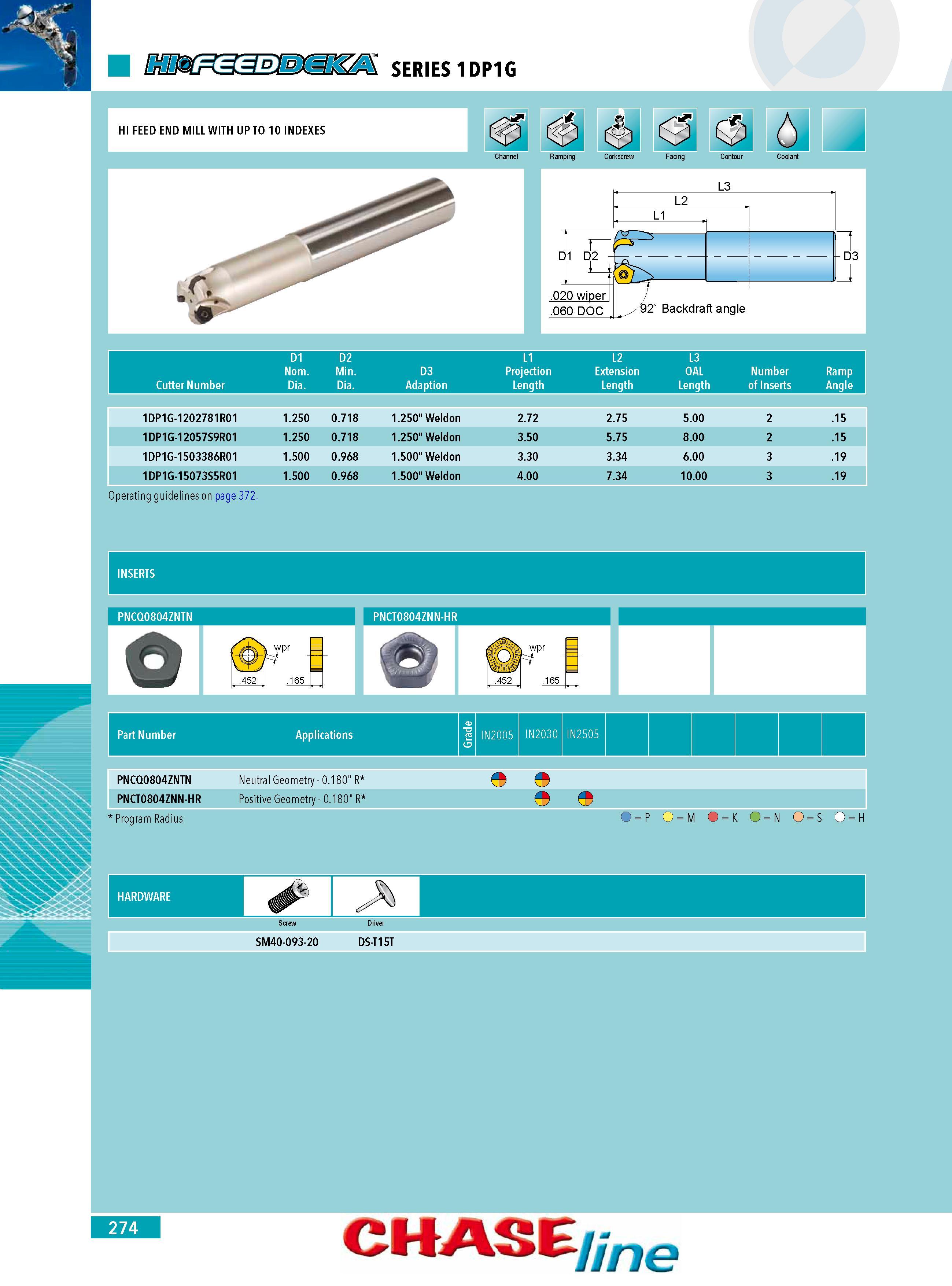

SERIES 1DP1G D1 D2 L1 L2 L3 Nom. Min. D3 Projection Extension OAL Number Ramp Cutter Number Dia. Dia. Adaption Length Length Length of Inserts Angle 1DP1G-1202781R01 1.250 0.718 1.250" Weldon 2.72 2.75 5.00 2 .15 1DP1G-12057S9R01 1.250 0.718 1.250" Weldon 3.50 5.75 8.00 2 .15 1DP1G-1503386R01 1.500 0.968 1.500" Weldon 3.30 3.34 6.00 3 .19 1DP1G-15073S5R01 1.500 0.968 1.500" Weldon 4.00 7.34 10.00 3 .19 Operating guidelines on page 372. PNCQ0804ZNTN Neutral Geometry - 0.180 R PNCT0804ZNN-HR Positive Geometry - 0.180 R Program Radius H 1 1 O S o 0 K 1 1 M 1 1 0 P 1 1 o HARDWARE El Screw Driver SM40-093-20 DS-T15T CHASE e
