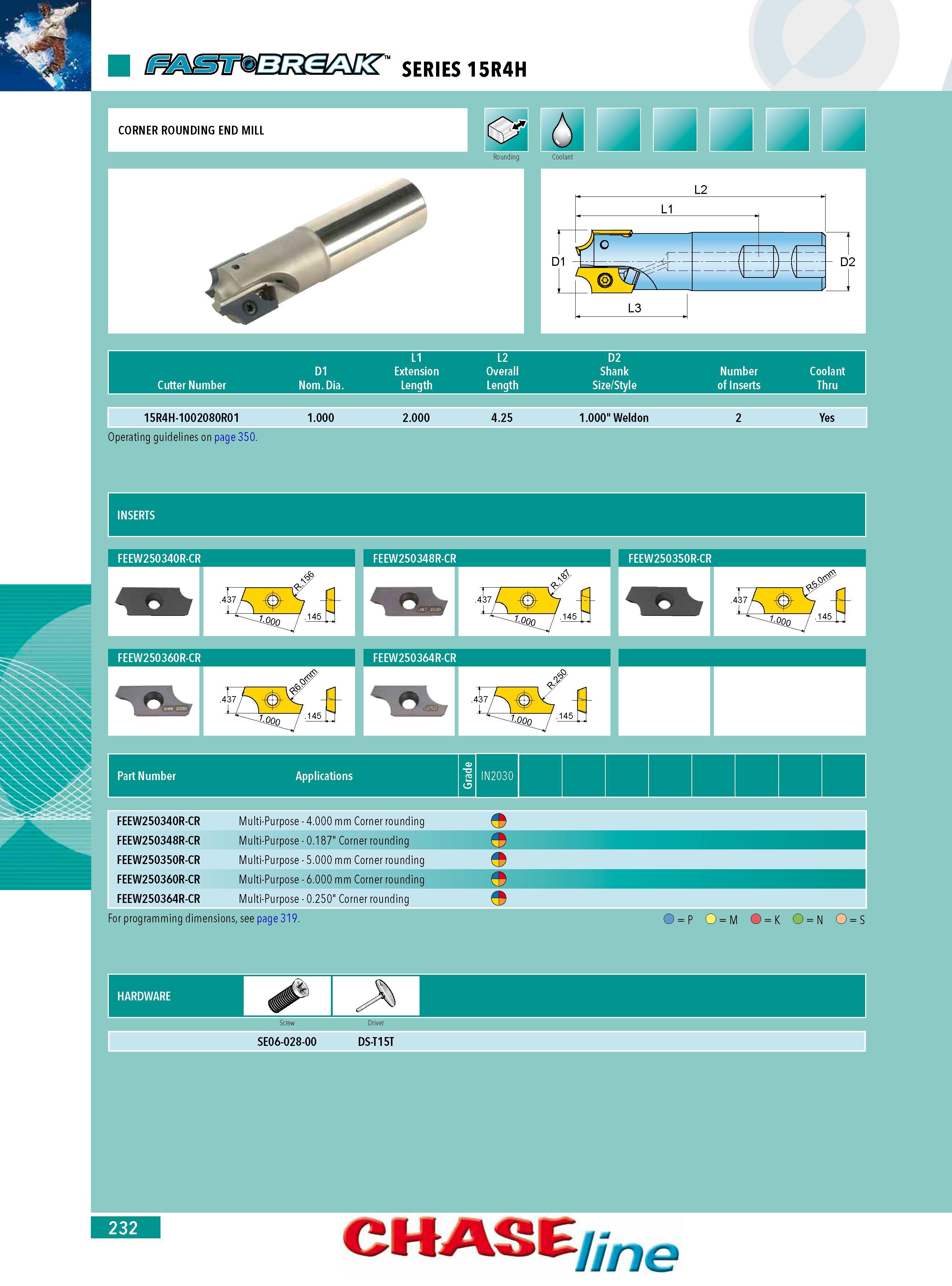

SERIES 15R4H CORNER ROUNDING END MILL Rounding Cutter Number D1 Nom. Dia. L1 Extension Length L2 Overall Length D2 Shank Size Style Number of Inserts Coolant Thru 15R4H-1002080R01 1.000 2.000 4.25 1.000" Weldon 2 Yes Operating guidelines on page 350. FEEW250340R-CR FEEW250348R-CR FEEW250350R-CR FEEW250360R-CR Part Number Applications For programming dimensions see page 319. FEEW250340R-CR Multi-Purpose - 4.000 mm Corner rounding FEEW250348R-CR Multi-Purpose - 0.187" Corner rounding FEEW250350R-CR Multi-Purpose - 5.000 mm Corner rounding FEEW250360R-CR Multi-Purpose - 6.000 mm Corner rounding FEEW250364R-CR Multi-Purpose - 0.250" Corner rounding O P O M O K O N O S HARDWARE K3 Screw Driver SE06-028-00 DS-T15T 232 CHASt ne
