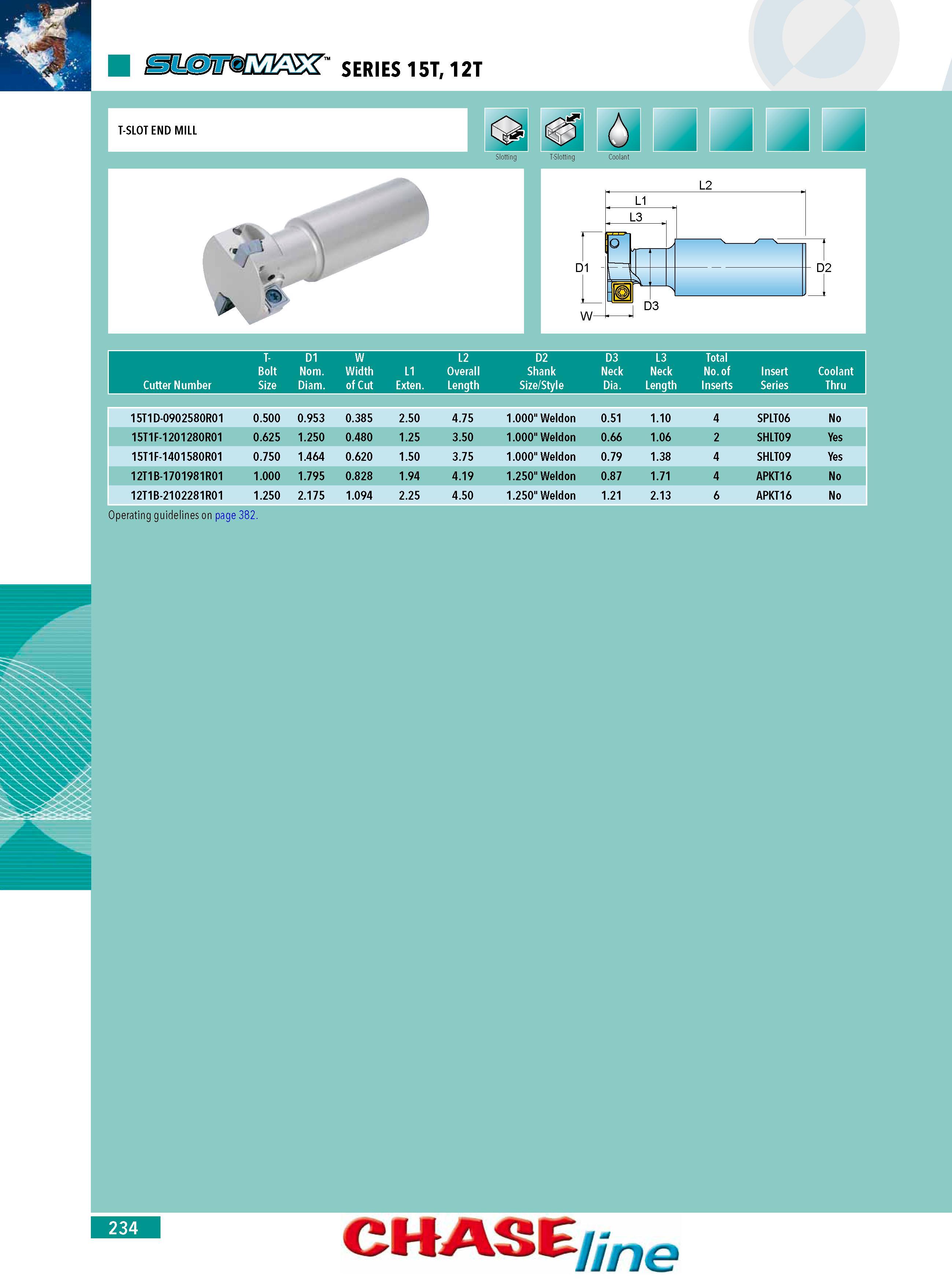

SERIES 15T 12T T-SLOT END MILL Slotting T- D1 W L2 D2 D3 Bolt Nom. Width L1 Overall Shank Neck Cutter Number Size Diam. of Cut Exten. Length Size Style Dia. 15T1D-0902580R01 0.500 0.953 0.385 2.50 4.75 1.000" Weldon 0.51 1.10 4 SPLT06 No 15T1F-1201280R01 0.625 1.250 0.480 1.25 3.50 1.000" Weldon 0.66 1.06 2 SHLT09 Yes 15T1F-1401580R01 0.750 1.464 0.620 1.50 3.75 1.000" Weldon 0.79 1.38 4 SHLT09 Yes 12T1B-1701981R01 1.000 1.795 0.828 1.94 4.19 1.250" Weldon 0.87 1.71 4 APKT16 No 12T1B-2102281R01 1.250 2.175 1.094 2.25 4.50 1.250" Weldon 1.21 2.13 6 APKT16 No Operating guidelines on page 382. 234 CHASE ne
