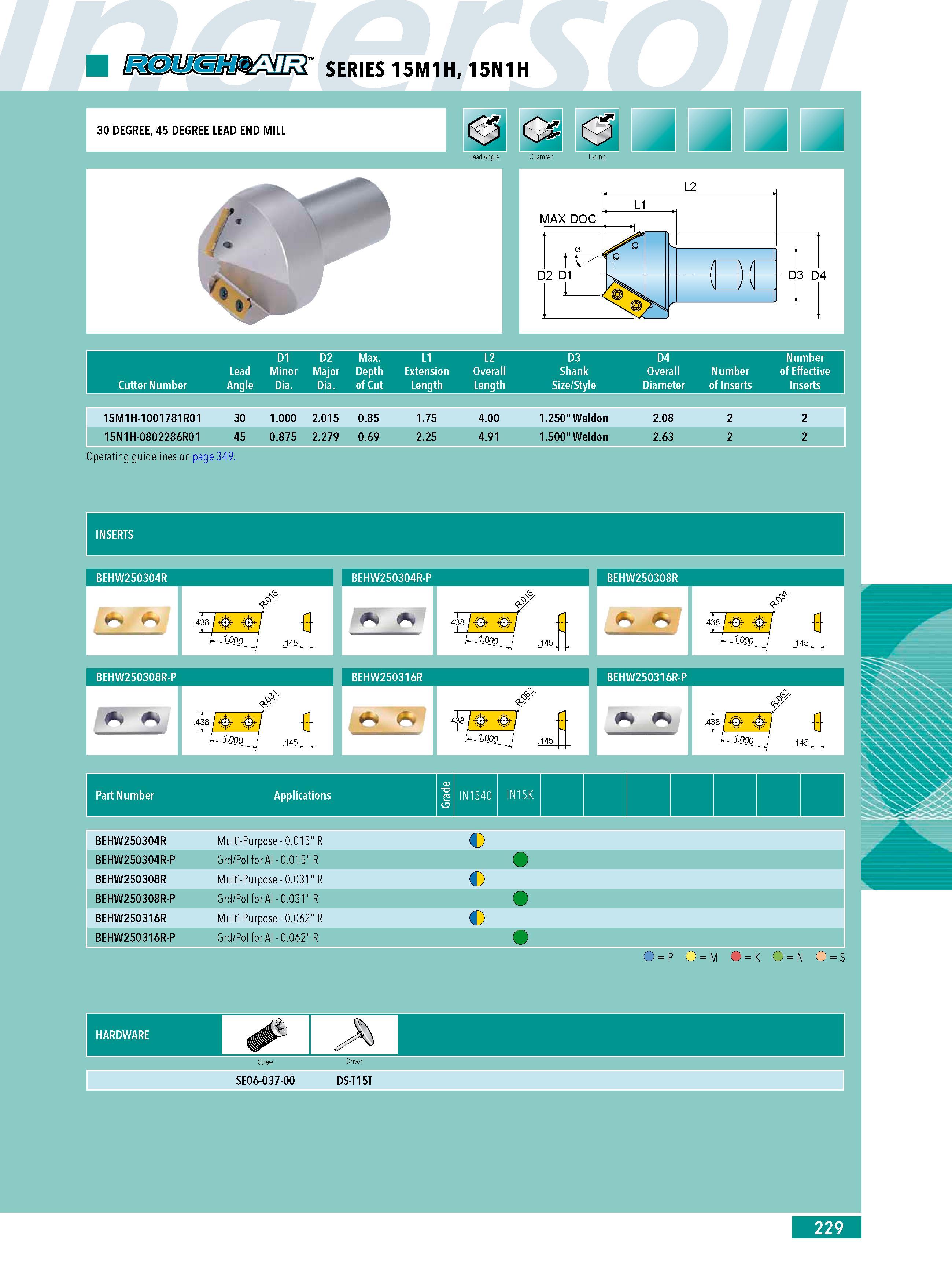

SERIES 15M1H 15N1H 30 DEGREE 45 DEGREE LEAD END MILL D1 D2 Max. L1 L2 D3 D4 Lead Minor Major Depth Extension Overall Shank Overall Number Cutter Number Angle Dia. Dia. of Cut Length Length Size Style Diameter of Inserts 15M1H-1001781R01 30 1.000 2.015 0.85 1.75 4.00 1.250" Weldon 2.08 2 2 15N1H-0802286R01 45 0.875 2.279 0.69 2.25 4.91 1.500" Weldon 2.63 2 2 Operating guidelines on page 349. BEHW250304R BEHW250304R-P BEHW250308R BEHW250308R-P BEHW250316R BEHW250316R-P Part Number Applications IN1540 IN15K BEHW250304R Multi-Purpose - 0.015" R C BEHW250304R-P Grd Pol for Al - 0.015" R O BEHW250308R Multi-Purpose - 0.031" R BEHW250308R-P Grd Pol for Al - 0.031" R O BEHW250316R Multi-Purpose - 0.062" R C BEHW250316R-P Grd Pol for Al - 0.062" R p O M O K O N O S 229
