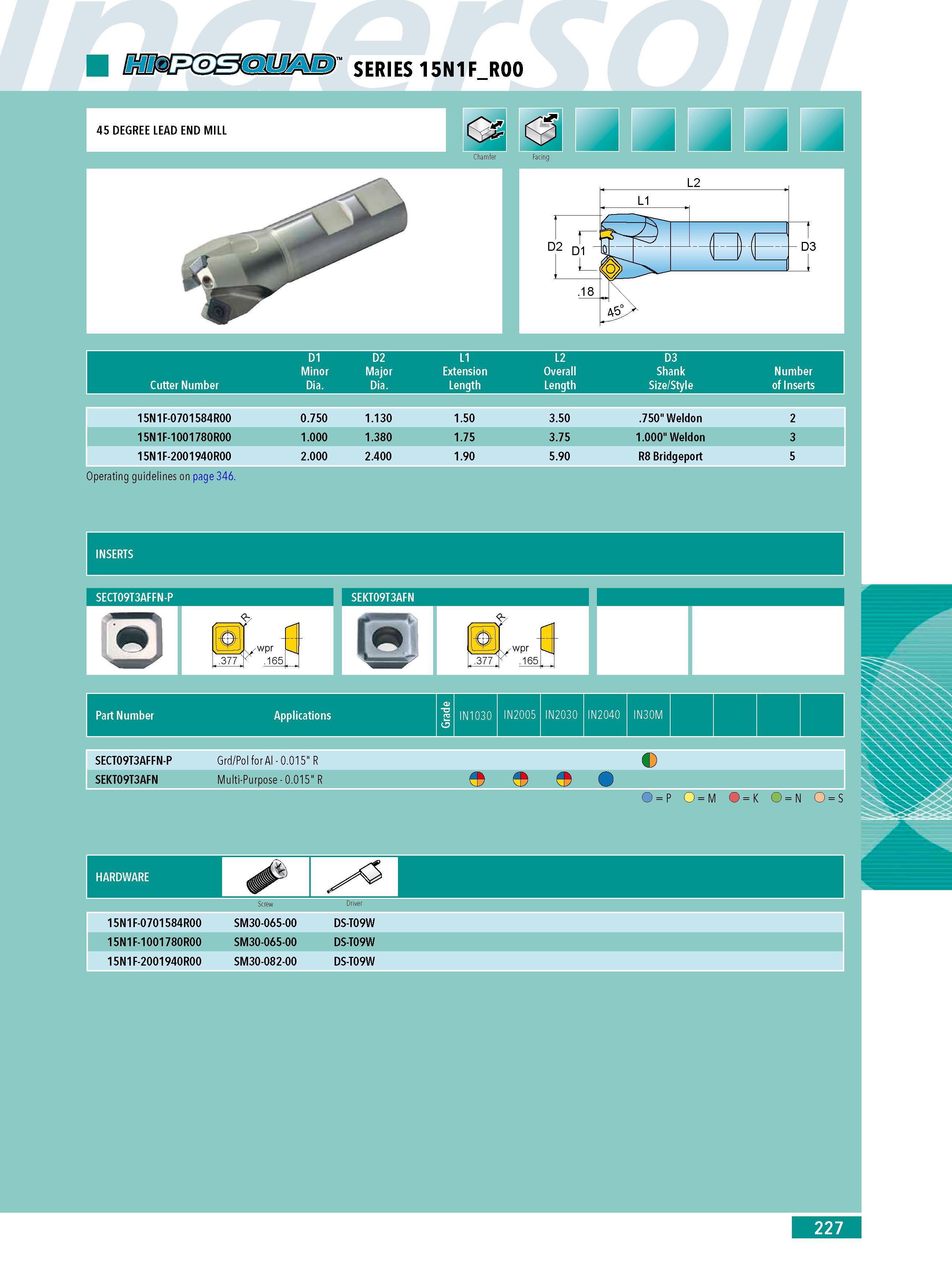

225 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.227

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 227 0225 Lab2u

D1 D2 L1 L2 D3 Minor Major Extension Overall Shank Number Cutter Number Dia. Dia. Length Length Size Style of Inserts 15N1F-0701584R00 0.750 1.130 1.50 3.50 .750" Weldon 2 15N1F-1001780R00 1.000 1.380 1.75 3.75 1.000" Weldon 3 15N1F-2001940R00 2.000 2.400 1.90 5.90 R8 Bridgeport 5 Operating guidelines on page 346. INSERTS SECT09T3AFFN-P Part Number SEKT09T3AFN .377 wpr .1651 Applications IN1030 IN2005 IN2030 IN2040 IN30M SECT09T3AFFN-P Grd Pol for Al - 0.015" R SEKT09T3AFN Multi-Purpose - 0.015" R O P O M O K O N O S 15N1F-0701584R00 SM30-065-00 DS-T09W 15N1F-1001780R00 SM30-065-00 DS-T09W 15N1F-2001940R00 SM30-082-00 DS-T09W Driver 227
