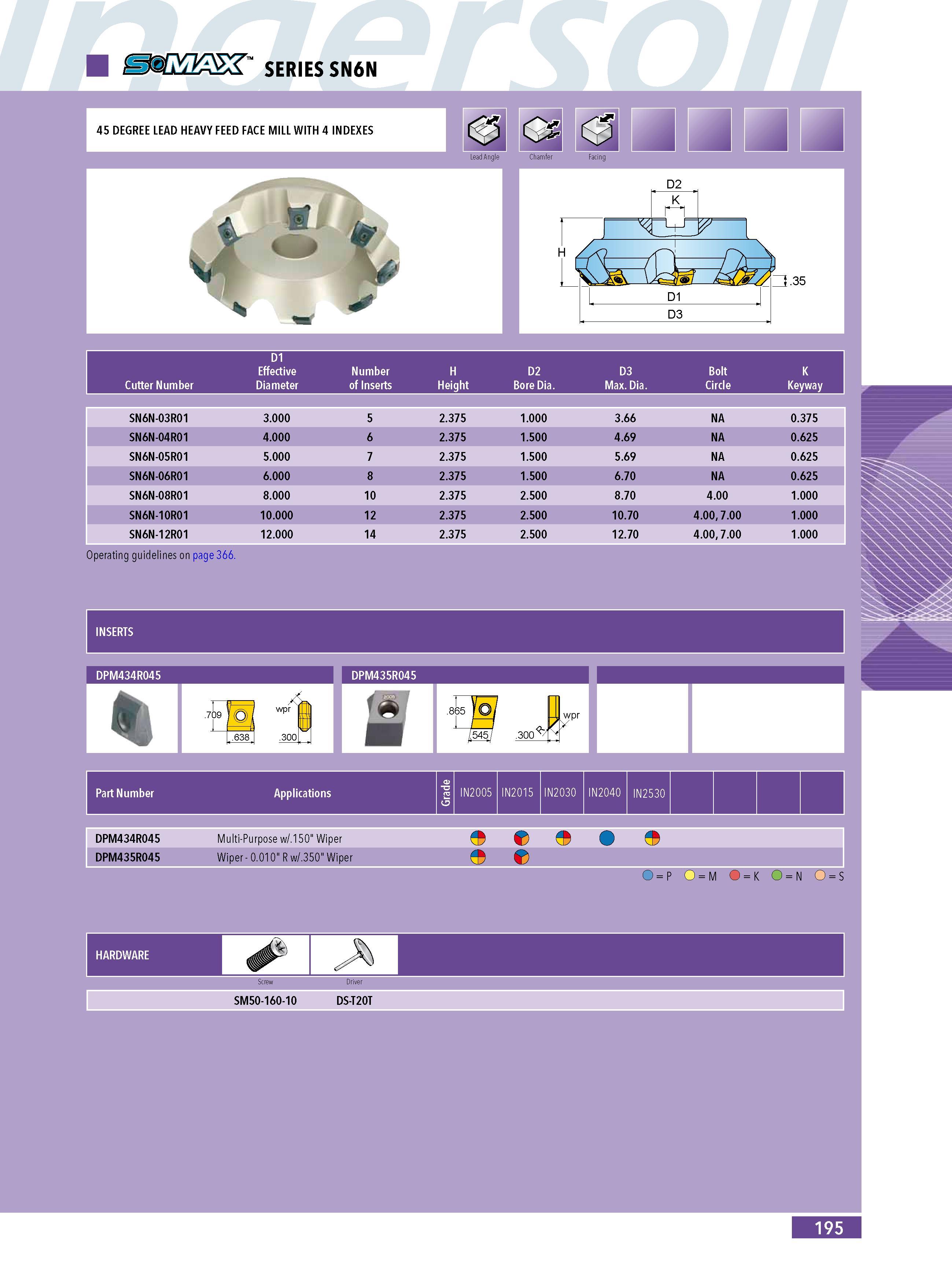

SERIES SN6N D1 Effective Number H D2 D3 Bolt K Cutter Number Diameter of Inserts Height Bore Dia. Max. Dia. Circle Keyway Operating guidelines on page 366. DPM434R045 DPM435R045 wpr J .3001 .865 15451 Part Number Applications IN2005 IN2015 IN2030 IN2040 IN2530 SN6N-03R01 3.000 5 2.375 1.000 3.66 NA 0.375 SN6N-04R01 4.000 6 2.375 1.500 4.69 NA 0.625 SN6N-05R01 5.000 7 2.375 1.500 5.69 NA 0.625 SN6N-06R01 6.000 8 2.375 1.500 6.70 NA 0.625 SN6N-08R01 8.000 10 2.375 2.500 8.70 4.00 1.000 SN6N-10R01 10.000 12 2.375 2.500 10.70 4.00 7.00 1.000 SN6N-12R01 12.000 14 2.375 2.500 12.70 4.00 7.00 1.000 DPM434R045 Multi-Purpose w .150" Wiper DPM435R045 Wiper - 0.010" R w .350" Wiper O P O M O K O N O S 195
