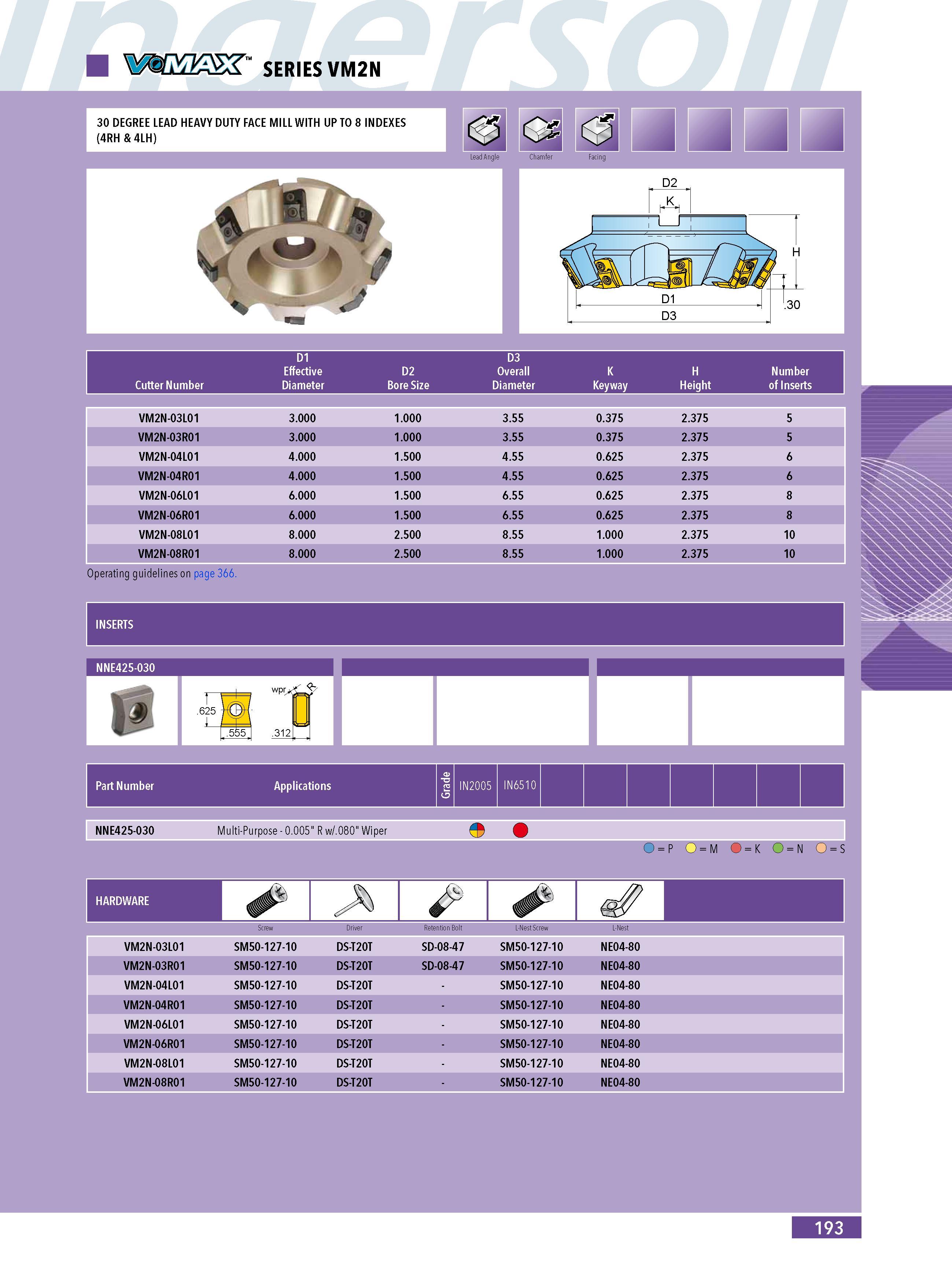

SERIES VM2N 30 DEGREE LEAD HEAVY DUTY FACE MILL WITH UP TO 8 INDEXES (4RH & 4LH) Lead Angle Chamfer Facing D2 D1 .30 D1 D3 Effective D2 Overall K H Number Cutter Number Diameter Bore Size Diameter Keyway Height of Inserts Operating guidelines on page 366. NNE425-030 Part Number Applications NNE425-030 Multi-Purpose - 0.005" R w .080" Wiper VM2N-03L01 3.000 1.000 3.55 0.375 2.375 5 VM2N-03R01 3.000 1.000 3.55 0.375 2.375 5 VM2N-04L01 4.000 1.500 4.55 0.625 2.375 6 VM2N-04R01 4.000 1.500 4.55 0.625 2.375 6 VM2N-06L01 6.000 1.500 6.55 0.625 2.375 8 VM2N-06R01 6.000 1.500 6.55 0.625 2.375 8 VM2N-08L01 8.000 2.500 8.55 1.000 2.375 10 VM2N-08R01 8.000 2.500 8.55 1.000 2.375 10 O P O M O K O N O S Screw Driver Retention Bolt L-Nest Screw L-Nest VM2N-03L01 SM50-127-10 DS-T20T SD-08-47 SM50-127-10 NE04-80 VM2N-03R01 SM50-127-10 DS-T20T SD-08-47 SM50-127-10 NE04-80 VM2N-04L01 SM50-127-10 DS-T20T SM50-127-10 NE04-80 VM2N-04R01 SM50-127-10 DS-T20T SM50-127-10 NE04-80 VM2N-06L01 SM50-127-10 DS-T20T SM50-127-10 NE04-80 VM2N-06R01 SM50-127-10 DS-T20T SM50-127-10 NE04-80 VM2N-08L01 SM50-127-10 DS-T20T SM50-127-10 NE04-80 VM2N-08R01 SM50-127-10 DS-T20T SM50-127-10 NE04-80 193
