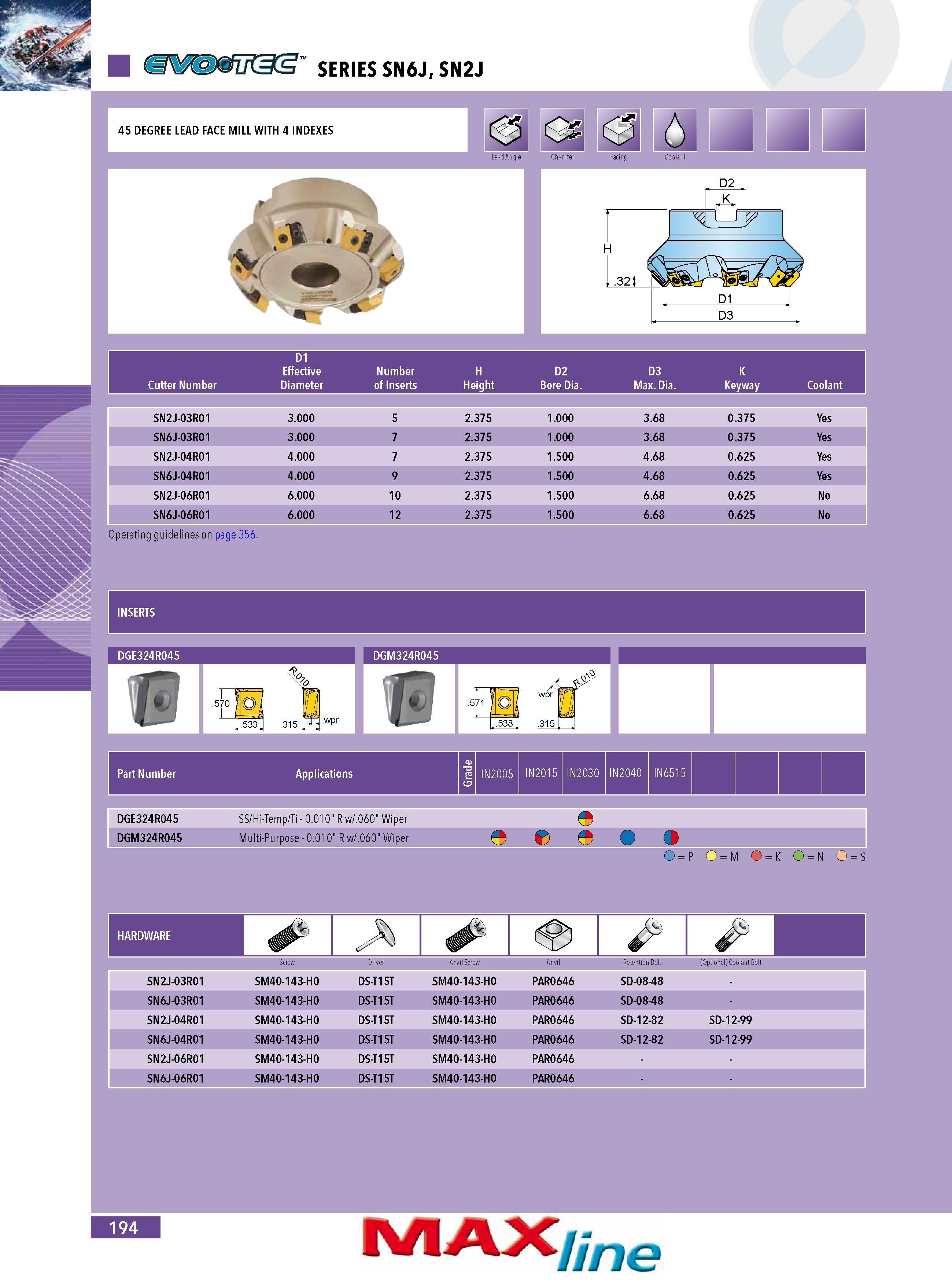

SERIES SN6J SN2J 45 DEGREE LEAD FACE MILL WITH 4 INDEXES Lead Angle Chamfer Facing Coolant D2 1 1 V .32T- D1 D3 Cutter Number D1 Effective Diameter Number of Inserts H Height D2 Bore Dia. D3 Max. Dia. K Keyway Coolant SN2J-03R01 3.000 5 2.375 1.000 3.68 0.375 Yes SN6J-03R01 3.000 7 2.375 1.000 3.68 0.375 Yes SN2J-04R01 4.000 7 2.375 1.500 4.68 0.625 Yes SN6J-04R01 4.000 9 2.375 1.500 4.68 0.625 Yes SN2J-06R01 6.000 10 2.375 1.500 6.68 0.625 No SN6J-06R01 6.000 12 2.375 1.500 6.68 0.625 No Operating guidelines on page 356. DGE324R045 SS Hi-Temp Ti - 0.010" R w .060" Wiper DGM324R045 Multi-Purpose - 0.010" R w .060" Wiper O 3 H O P O M O K O N O S HARDWARE Screw Driver Anvil Screw Anvil Retention Bolt (Optional) Coolant Bolt SN2J-03R01 SM40-143-H0 DS-T15T SM40-143-H0 PAR0646 SD-08-48 SN6J-03R01 SM40-143-H0 DS-T15T SM40-143-H0 PAR0646 SD-08-48 SN2J-04R01 SM40-143-H0 DS-T15T SM40-143-H0 PAR0646 SD-12-82 SD-12-99 SN6J-04R01 SM40-143-H0 DS-T15T SM40-143-H0 PAR0646 SD-12-82 SD-12-99 SN2J-06R01 SM40-143-H0 DS-T15T SM40-143-H0 PAR0646 SN6J-06R01 SM40-143-H0 DS-T15T SM40-143-H0 PAR0646 194 MAX me
