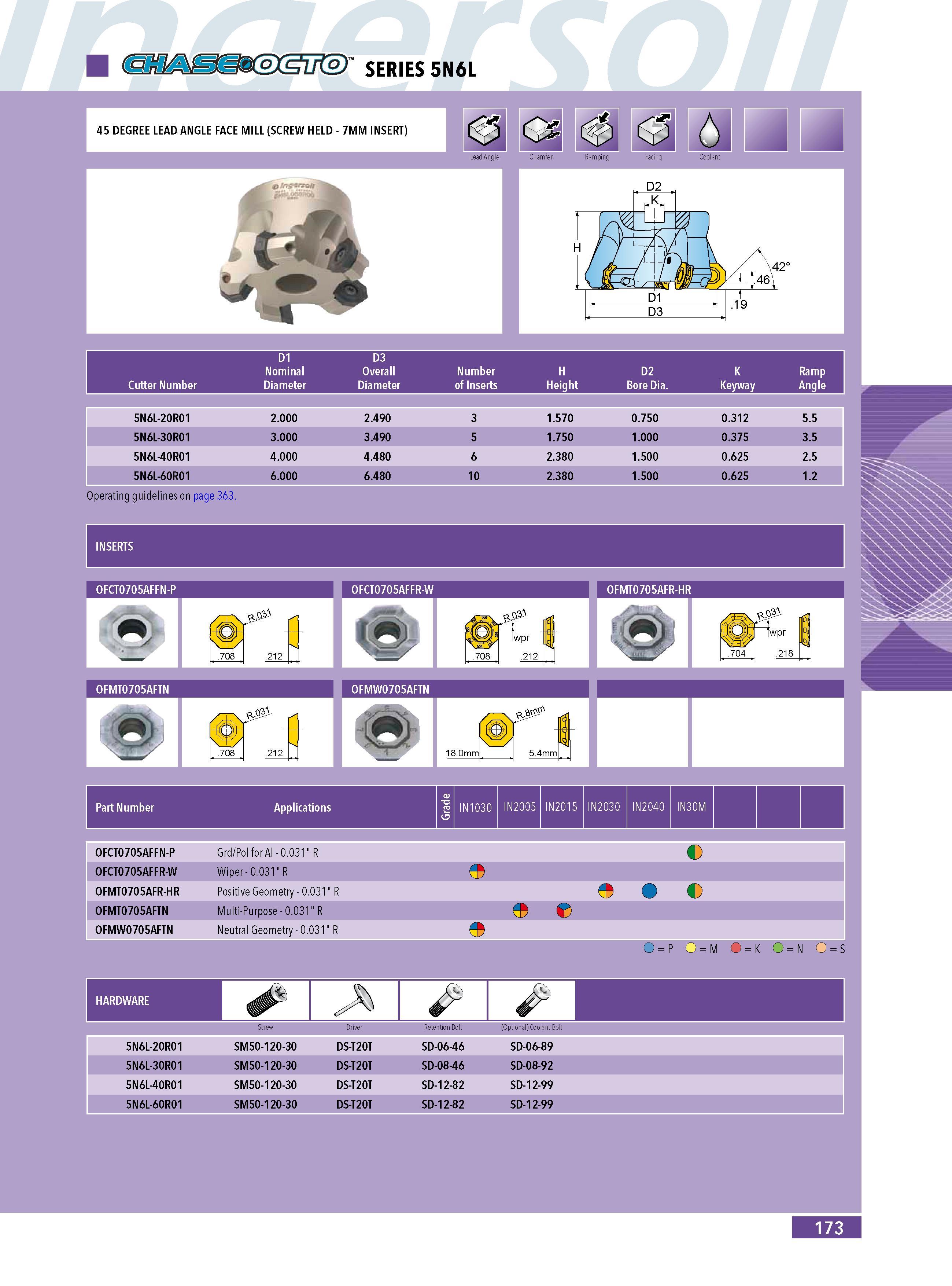

SERIES 5N6L 45 DEGREE LEAD ANGLE FACE MILL (SCREW HELD - 7MM INSERT) D1 D3 Nominal Overall Number H D2 K Ramp Cutter Number Diameter Diameter of Inserts Height Bore Dia. Keyway Angle 5N6L-20R01 2.000 2.490 3 1.570 0.750 0.312 5.5 5N6L-30R01 3.000 3.490 5 1.750 1.000 0.375 3.5 5N6L-40R01 4.000 4.480 6 2.380 1.500 0.625 2.5 5N6L-60R01 6.000 6.480 10 2.380 1.500 0.625 1.2 Operating guidelines on page 363. OFCT0705AFFN-P OFMT0705AFTN OFCT0705AFFR-W OFMW0705AFTN .8PS" Part Number Applications IN1030 IN2005 IN2015 IN2030 IN2040 IN30M OFCT0705AFFN-P Grd Pol for Al - 0.031" R OFCT0705AFFR-W Wiper - 0.031" R OFMT0705AFR-HR Positive Geometry - 0.031" R OFMT0705AFTN Multi-Purpose - 0.031" R OFMW0705AFTN Neutral Geometry - 0.031" R O P O M O K O N O S Screw Driver Retention Bolt (Optional) Coolant Bolt 5N6L-20R01 SM50-120-30 DS-T20T SD-06-46 SD-06-89 5N6L-30R01 SM50-120-30 DS-T20T SD-08-46 SD-08-92 5N6L-40R01 SM50-120-30 DS-T20T SD-12-82 SD-12-99 5N6L-60R01 SM50-120-30 DS-T20T SD-12-82 SD-12-99 173
