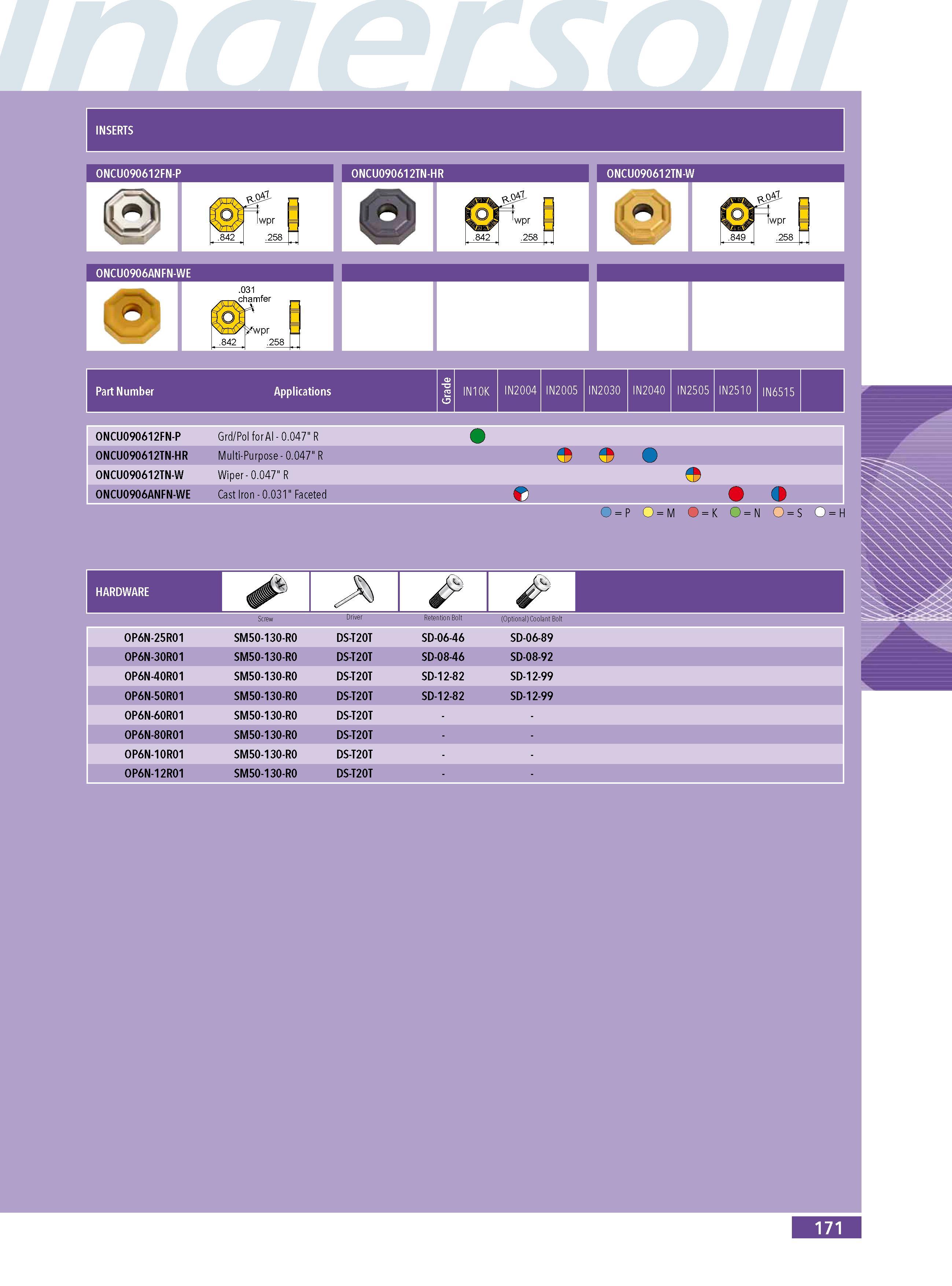

169 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.171

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 171 0169 Lab2u

INSERTS ONCU090612FN-P ONCU0906ANFN-WE ONCU090612TN-HR jO L .031 chamfer Fwpr .842 I .258 rr ONCU090612TN-W Part Number Applications IN10K IN2004 IN2005 IN2030 IN2040 IN2505 IN2510 IN6515 ONCU090612FN-P Grd Pol for Al - 0.047" R ONCU090612TN-HR Multi-Purpose - 0.047" R o ONCU090612TN-W Wiper - 0.047" R ONCU0906ANFN-WE Cast Iron - 0.031" Faceted c 3 P 1 1 M K N O S O H Screw Dn er Retention Bolt (Optional) Coolant Bolt OP6N-25R01 SM50-130-R0 DS-T20T SD-06-46 SD-06-89 OP6N-30R01 SM50-130-R0 DS-T20T SD-08-46 SD-08-92 OP6N-40R01 SM50-130-R0 DS-T20T SD-12-82 SD-12-99 OP6N-50R01 SM50-130-R0 DS-T20T SD-12-82 SD-12-99 OP6N-60R01 SM50-130-R0 DS-T20T OP6N-80R01 SM50-130-R0 DS-T20T OP6N-10R01 SM50-130-R0 DS-T20T OP6N-12R01 SM50-130-R0 DS-T20T 171
