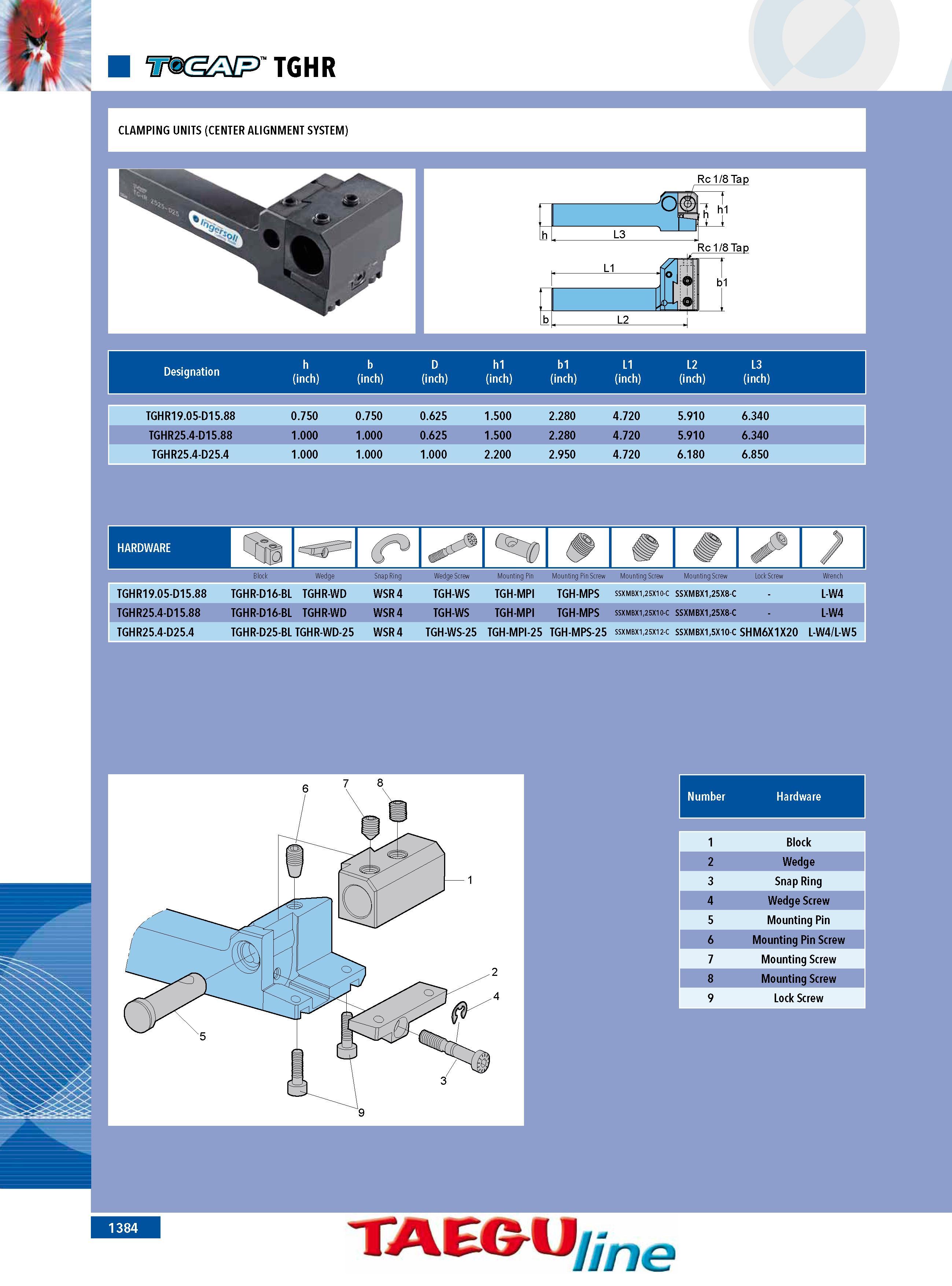

TGHR CLAMPING UNITS (CENTER ALIGNMENT SYSTEM) J O L3 Rc 1 8 Tap QTJ Rc 1 8 Tap L1 b1 L2 Designation h (inch) b (inch) D (inch) h1 (inch) b1 (inch) L1 (inch) L2 (inch) L3 (inch) TGHR19.05-D15.88 0.750 0.750 0.625 1.500 2.280 4.720 5.910 6.340 TGHR25.4-D15.88 1.000 1.000 0.625 1.500 2.280 4.720 5.910 6.340 TGHR25.4-D25.4 1.000 1.000 1.000 2.200 2.950 4.720 6.180 6.850 HARDWARE c&:d -fJ Block Wedge Snap Ring Wedge Screw Mounting Pin Mounting Pin Screw Mounting Screw Mounting Screw Lock Screw Wrench TGHR19.05-D15.88 TGHR-D16-BL TGHR-WD WSR 4 TGH-WS TGH-MPI TGH-MPS SSXMBX125X10-C -C 8- 5X 2 BX s SX S L-W4 TGHR25.4-D15.88 TGHR-D16-BL TGHR-WD WSR 4 TGH-WS TGH-MPI TGH-MPS SSXMBX125X10-C -C 8- 5X 2 BX s SX S L-W4 TGHR25.4-D25.4 TGHR-D25-BL TGHR-WD-25 WSR 4 TGH-WS-25 TGH-MPI-25 TGH-MPS-25 SSXMBX125X12-C SSXMBX15X10-C SHM6X1X20 L-W4 L-W5 Number Hardware 1 Block 2 Wedge 3 Snap Ring 4 Wedge Screw 5 Mounting Pin 6 Mounting Pin Screw 7 Mounting Screw 8 Mounting Screw 9 Lock Screw 1384 TAEGU line
