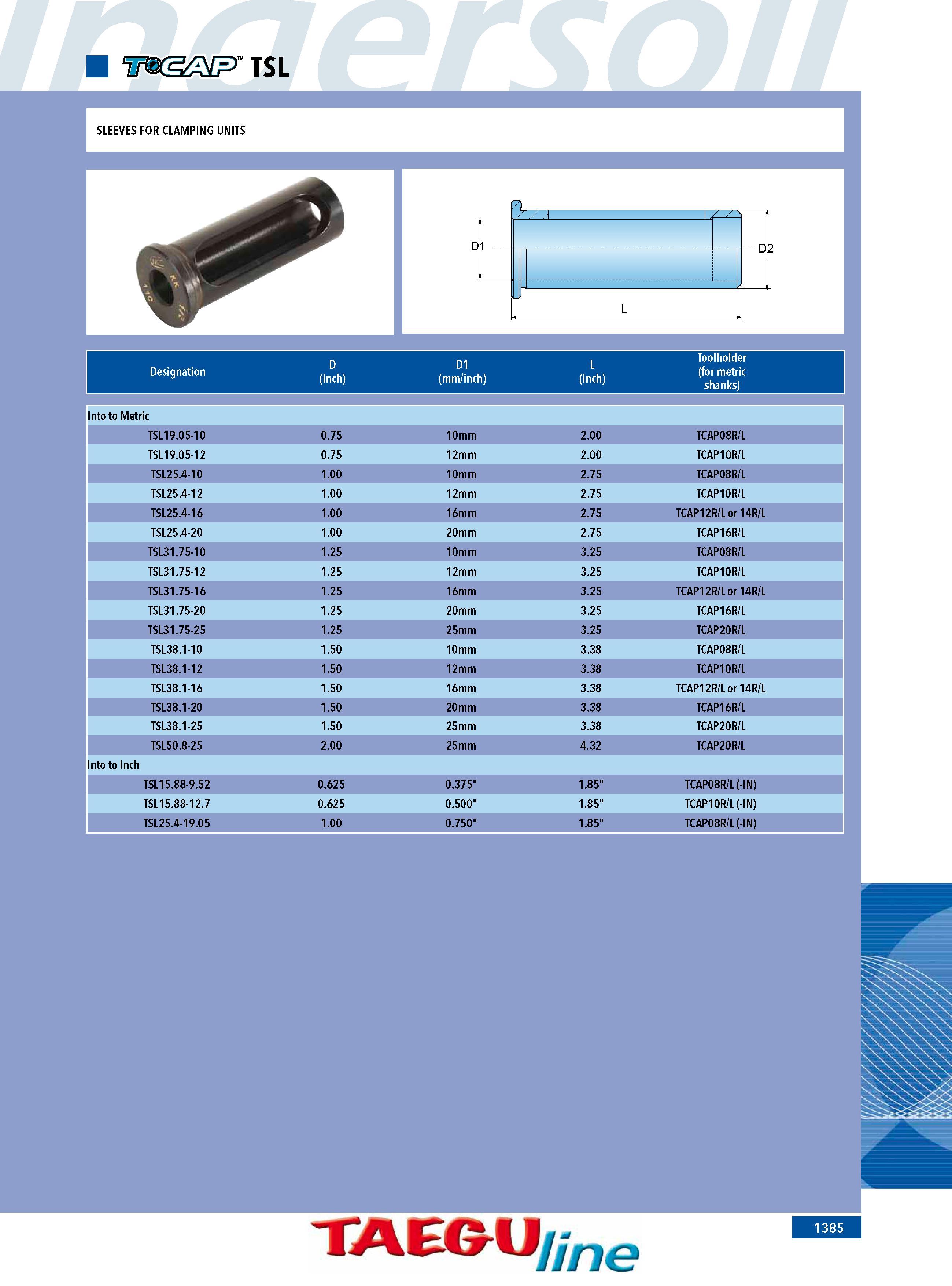

SLEEVES FOR CLAMPING UNITS Designation D1 (mm inch) Toolholder (for metric shanks) Into to Metric TSL19.05-10 0.75 10mm 2.00 TCAP08R L TSL19.05-12 0.75 12mm 2.00 TCAP10R L TSL25.4-10 1.00 10mm 2.75 TCAP08R L TSL25.4-12 1.00 12mm 2.75 TCAP10R L TSL25.4-16 1.00 16mm 2.75 TCAP12R L or 14R L TSL25.4-20 1.00 20mm 2.75 TCAP16R L TSL31.75-10 1.25 10mm 3.25 TCAP08R L TSL31.75-12 1.25 12mm 3.25 TCAP10R L TSL31.75-16 1.25 16mm 3.25 TCAP12R L or 14R L TSL31.75-20 1.25 20mm 3.25 TCAP16R L TSL31.75-25 1.25 25mm 3.25 TCAP20R L TSL38.1-10 1.50 10mm 3.38 TCAP08R L TSL38.1-12 1.50 12mm 3.38 TCAP10R L TSL38.1-16 1.50 16mm 3.38 TCAP12R L or 14R L TSL38.1-20 1.50 20mm 3.38 TCAP16R L TSL38.1-25 1.50 25mm 3.38 TCAP20R L TSL50.8-25 2.00 25mm 4.32 TCAP20R L Into to Inch TSL15.88-9.52 0.625 0.375" 1.85" TCAP08R L (-IN) TSL15.88-12.7 0.625 0.500" 1.85" TCAP10R L (-IN) TSL25.4-19.05 1.00 0.750" 1.85" TCAP08R L (-IN) TAEGU 7e D (inch) L (inch)
