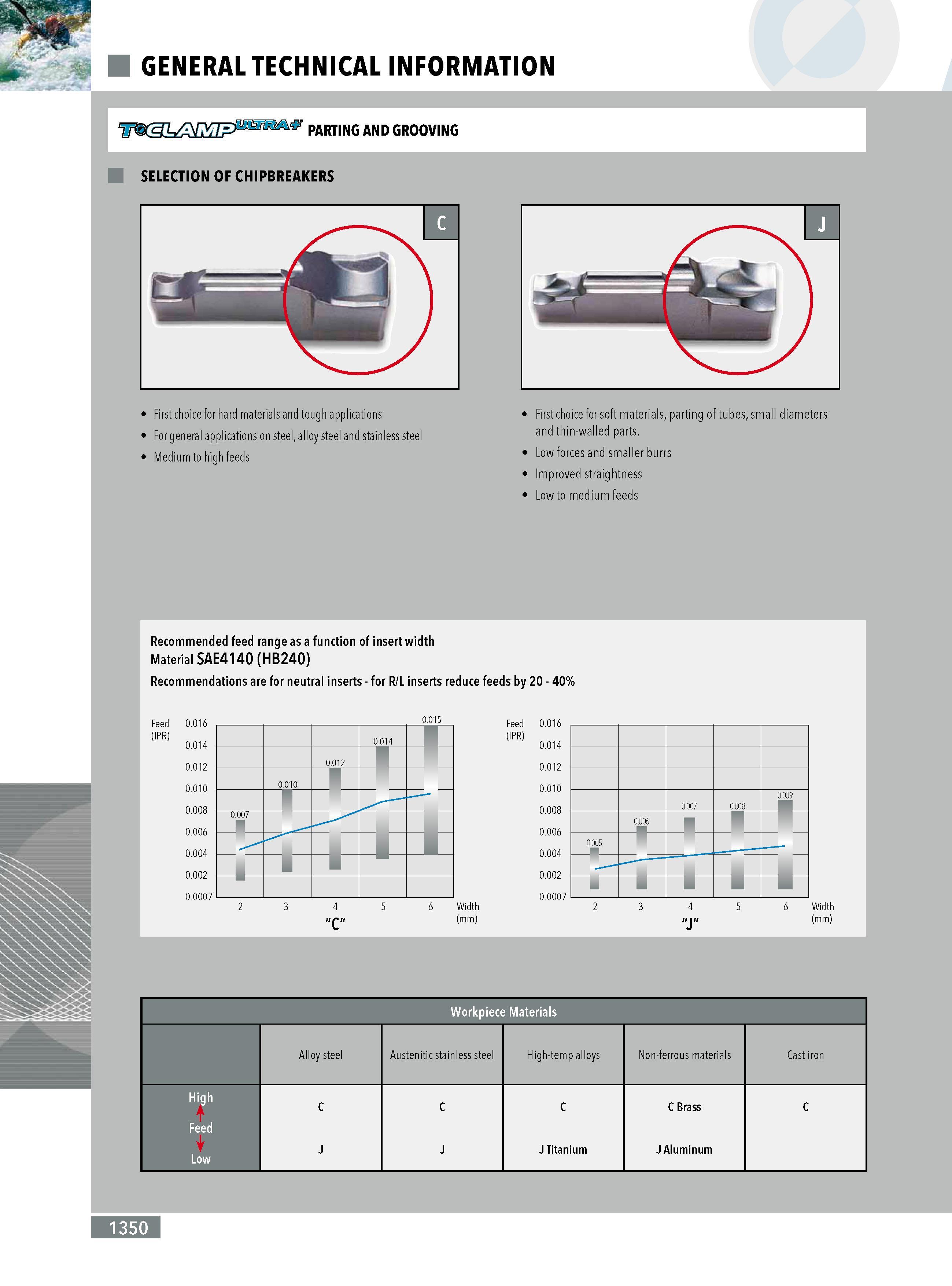

GENERAL TECHNICAL INFORMATION PARTING AND GROOVING SELECTION OF CHIPBREAKERS First choice for hard materials and tough applications For general applications on steel alloy steel and stainless steel Medium to high feeds First choice for soft materials parting of tubes small diameters and thin-walled parts. Low forces and smaller burrs Improved straightness Low to medium feeds Recommended feed range as a function of insert width Material SAE4140 (HB240) Recommendations are for neutral inserts - for R L inserts reduce feeds by 20 - 40% Feed 0.016 (IPR) 0.014 0.012 0.010 0.008 0.006 0.004 0.002 0.0007 0.014 0.012 1 0.010 1 1 0.00 1 1 1 4 "C" Width (mm) Feed 0.016 (IPR) 0.014 0.012 0.010 0.008 0.006 0.004 0.002 0.0007 0.007 0.008 0.009 0.006 0.005 I 4 "J" Width (mm) Workpiece Materials Alloy steel Austenitic stainless steel High-temp alloys Non-ferrous materials Cast iron High Feed D Low C C C C Brass C J J J Titanium J Aluminum 2 3 5 6 2 3 5 6 1350
