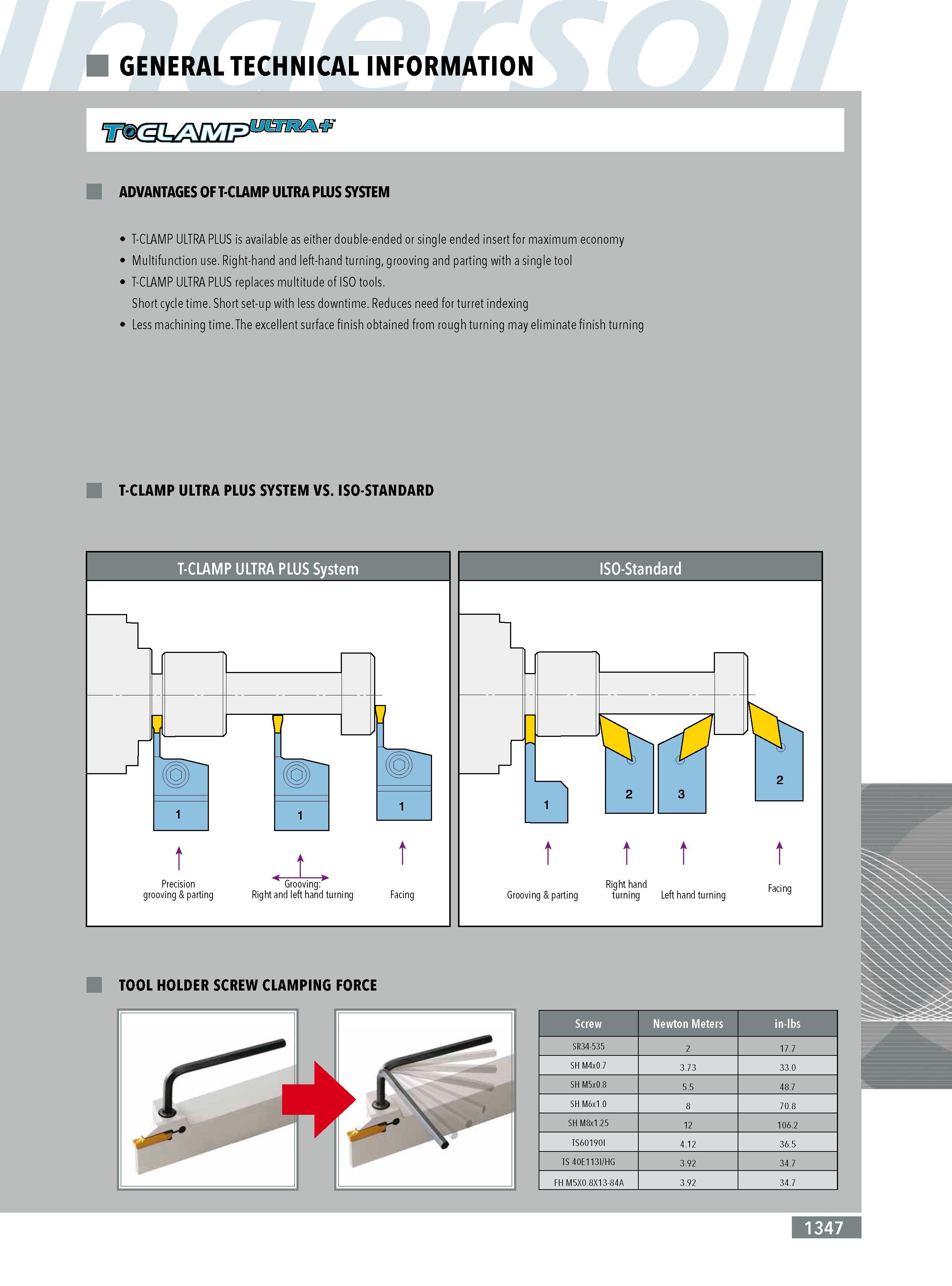

GENERAL TECHNICAL INFORMATION ADVANTAGES OFT-CLAMP ULTRA PLUS SYSTEM T-CLAMP ULTRA PLUS is available as either double-ended or single ended insert for maximum economy Multifunction use. Right-hand and left-hand turning grooving and parting with a single tool T-CLAMP ULTRA PLUS replaces multitude of ISO tools. Short cycle time. Short set-up with less downtime. Reduces need for turret indexing Less machining time. The excellent surface finish obtained from rough turning may eliminate finish turning T-CLAMP ULTRA PLUS SYSTEM VS. ISO-STANDARD T-CLAMP ULTRA PLUS System ISO-Standard TOOL HOLDER SCREW CLAMPING FORCE Screw Newton Meters in-lbs SR34-535 2 17.7 SH M4x0.7 3.73 33.0 SH M5x0.8 5.5 48.7 SH M6x1.0 8 70.8 SH M8x1.25 12 106.2 TS60190I 4.12 36.5 TS 40E113I HG 3.92 34.7 FH M5X0.8X13-84A 3.92 34.7 1347
