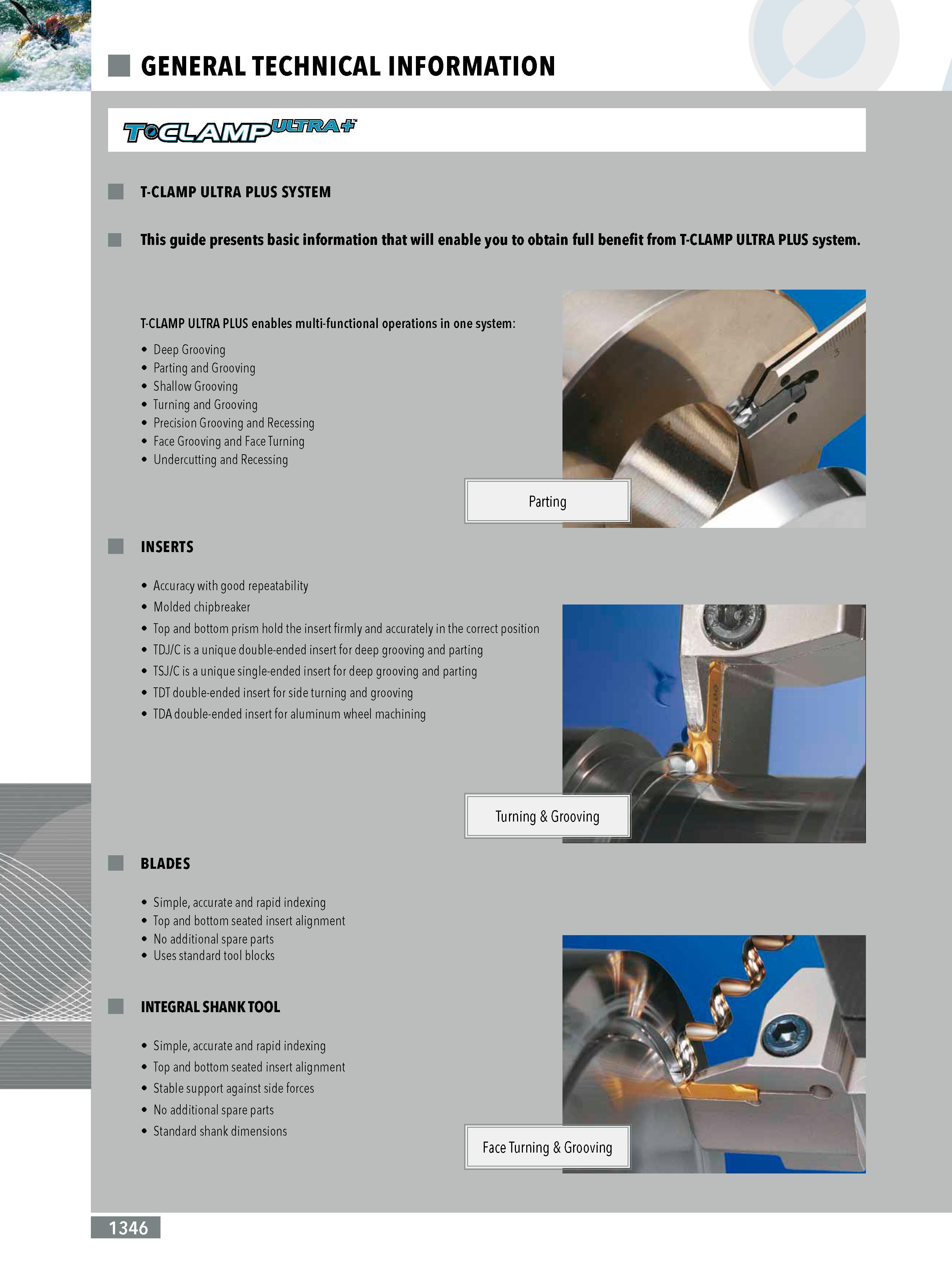

GENERAL TECHNICAL INFORMATION T-CLAMP ULTRA PLUS SYSTEM This guide presents basic information that will enable you to obtain full benefit from T-CLAMP ULTRA PLUS system. T-CLAMP ULTRA PLUS enables multi-functional operations in one system: Deep Grooving Parting and Grooving Shallow Grooving Turning and Grooving Precision Grooving and Recessing Face Grooving and Face Turning Undercutting and Recessing INSERTS Accuracy with good repeatability Molded chipbreaker Top and bottom prism hold the insert firmly and accurately in the correct position TDJ C is a unique double-ended insert for deep grooving and parting TSJ C is a unique single-ended insert for deep grooving and parting TDT double-ended insert for side turning and grooving TDA double-ended insert for aluminum wheel machining BLADES Simple accurate and rapid indexing Top and bottom seated insert alignment No additional spare parts Uses standard tool blocks INTEGRAL SHANK TOOL Simple accurate and rapid indexing Top and bottom seated insert alignment Stable support against side forces No additional spare parts Standard shank dimensions 1346
