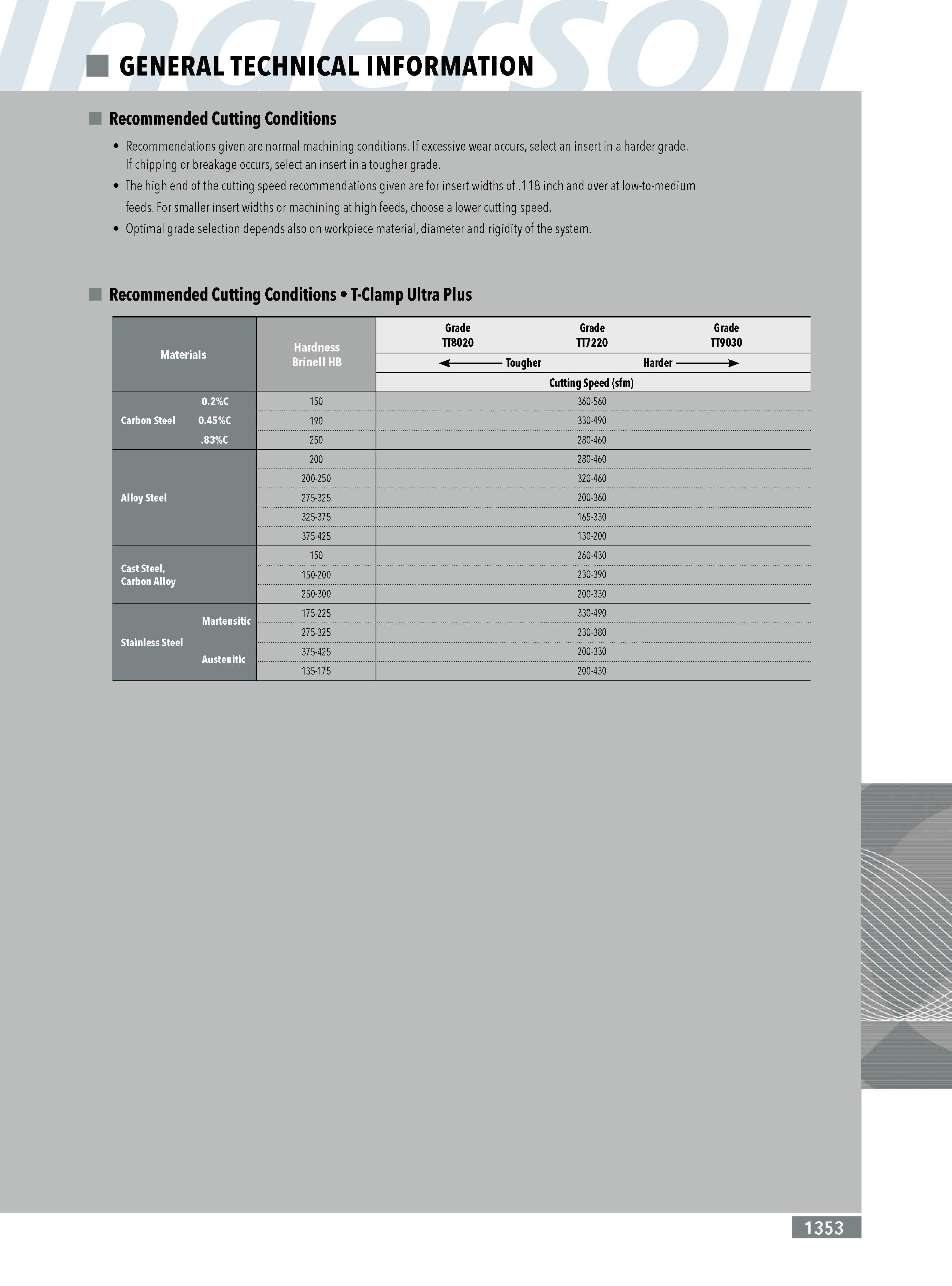

GENERAL TECHNICAL INFORMATION Recommended Cutting Conditions Recommendations given are normal machining conditions. If excessive wear occurs select an insert in a harder grade. If chipping or breakage occurs select an insert in a tougher grade. The high end of the cutting speed recommendations given are for insert widths of .118 inch and over at low-to-medium feeds. For smaller insert widths or machining at high feeds choose a lower cutting speed. Optimal grade selection depends also on workpiece material diameter and rigidity of the system. Recommended Cutting Conditions T-Clamp Ultra Plus Materials Hardness Grade Grade Grade TT8020 TT7220 TT9030 Brinell HB Tougher Harder 0.2%C Cutting Speed (sfm) 150 360-560 Carbon Steel 0.45%C 190 330-490 .83%C 250 280-460 Alloy Steel 200 280-460 200-250 320-460 275-325 200-360 Cast Steel 325-375 165-330 375-425 130-200 150 260-430 150-200 230-390 250-300 200-330 175-225 330-490 Stainless Steel 275-325 230-380 375-425 200-330 135-175 200-430 1353
