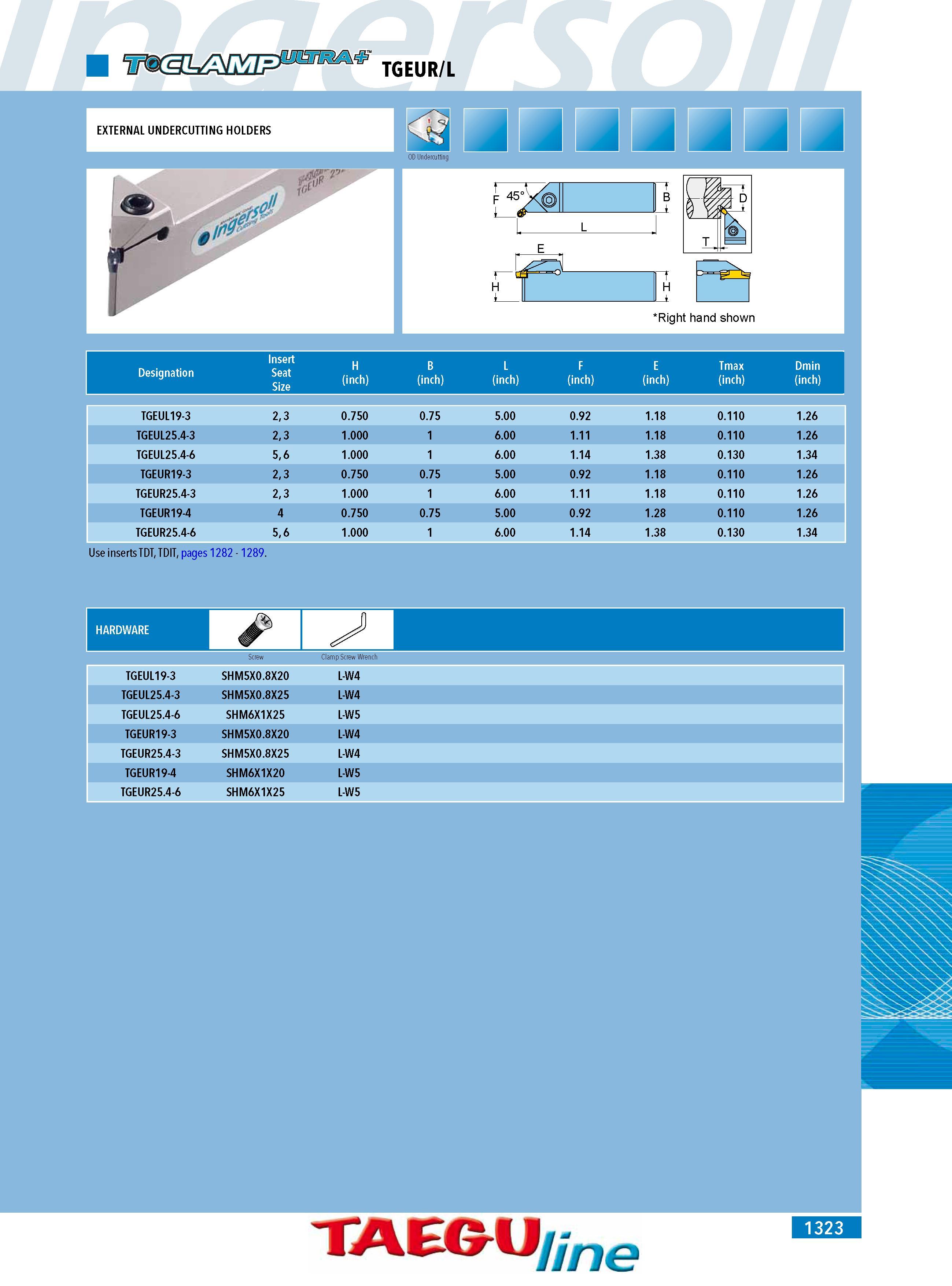

1321 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1323

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1323 1321 Lab2u

Designation Insert Seat Size H (inch) B (inch) L (inch) F (inch) E (inch) Tmax (inch) Dmin (inch) TGEUL19-3 2 3 0.750 0.75 5.00 0.92 1.18 0.110 1.26 TGEUL25.4-3 2 3 1.000 1 6.00 1.11 1.18 0.110 1.26 TGEUL25.4-6 5 6 1.000 1 6.00 1.14 1.38 0.130 1.34 TGEUR19-3 2 3 0.750 0.75 5.00 0.92 1.18 0.110 1.26 TGEUR25.4-3 2 3 1.000 1 6.00 1.11 1.18 0.110 1.26 TGEUR19-4 4 0.750 0.75 5.00 0.92 1.28 0.110 1.26 TGEUR25.4-6 5 6 1.000 1 6.00 1.14 1.38 0.130 1.34 Use inserts TDT TDIT pages 1282 - 1289. Screw Clamp Screw Wrench TGEUL19-3 SHM5X0.8X20 L-W4 TGEUL25.4-3 SHM5X0.8X25 L-W4 TGEUL25.4-6 SHM6X1X25 L-W5 TGEUR19-3 SHM5X0.8X20 L-W4 TGEUR25.4-3 SHM5X0.8X25 L-W4 TGEUR19-4 SHM6X1X20 L-W5 TGEUR25.4-6 SHM6X1X25 L-W5 TAEGU line 1323
