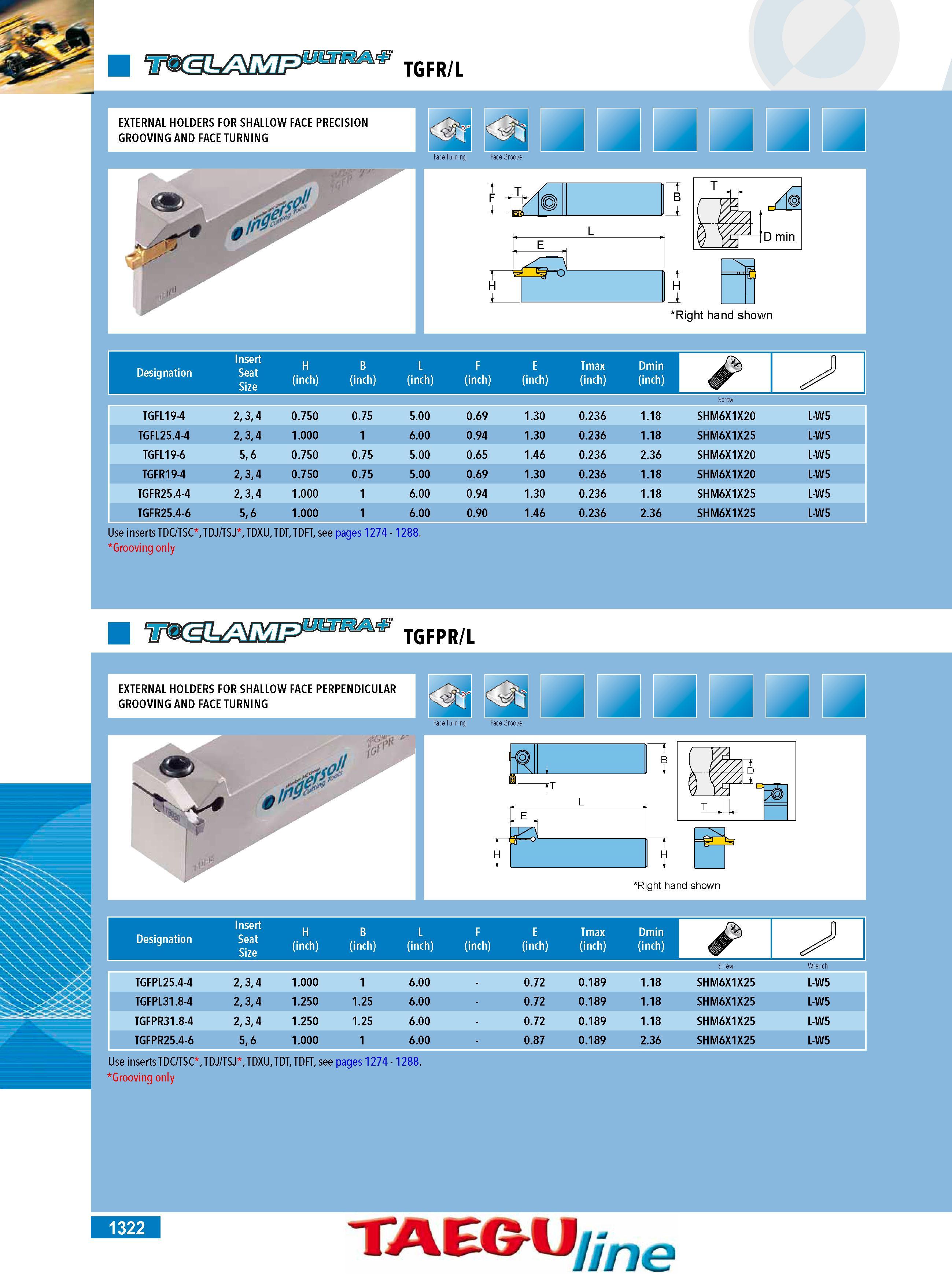

TGFR L EXTERNAL HOLDERS FOR SHALLOW FACE PRECISION GROOVING AND FACE TURNING Face Turning B L L Right hand shown Designation H B L F E Tmax Dmin (inch) (inch) (inch) (inch) (inch) (inch) (inch) Use inserts TDC TSC TDJ TSJ TDXU TDT TDFT see pages 1274 - 1288. Grooving only TGFL19-4 2 3 4 0.750 0.75 5.00 0.69 1.30 0.236 1.18 SHM6X1X20 L-W5 TGFL25.4-4 2 3 4 1.000 1 6.00 0.94 1.30 0.236 1.18 SHM6X1X25 L-W5 TGFL19-6 5 6 0.750 0.75 5.00 0.65 1.46 0.236 2.36 SHM6X1X20 L-W5 TGFR19-4 2 3 4 0.750 0.75 5.00 0.69 1.30 0.236 1.18 SHM6X1X20 L-W5 TGFR25.4-4 2 3 4 1.000 1 6.00 0.94 1.30 0.236 1.18 SHM6X1X25 L-W5 TGFR25.4-6 5 6 1.000 1 6.00 0.90 1.46 0.236 2.36 SHM6X1X25 L-W5 TGFPR L EXTERNAL HOLDERS FOR SHALLOW FACE PERPENDICULAR GROOVING AND FACE TURNING Face Turning Face Groove Right hand shown Designation Use inserts TDC TSC TDJ TSJ TDXU TDT TDFT see pages 1274 - 1288. Grooving only TGFPL25.4-4 2 3 4 1.000 1 6.00 0.72 0.189 1.18 SHM6X1X25 L-W5 TGFPL31.8-4 2 3 4 1.250 1.25 6.00 0.72 0.189 1.18 SHM6X1X25 L-W5 TGFPR31.8-4 2 3 4 1.250 1.25 6.00 0.72 0.189 1.18 SHM6X1X25 L-W5 TGFPR25.4-6 5 6 1.000 1 6.00 0.87 0.189 2.36 SHM6X1X25 L-W5 Insert Seat Size Insert Seat Size H (inch) TAEGU line 1322
