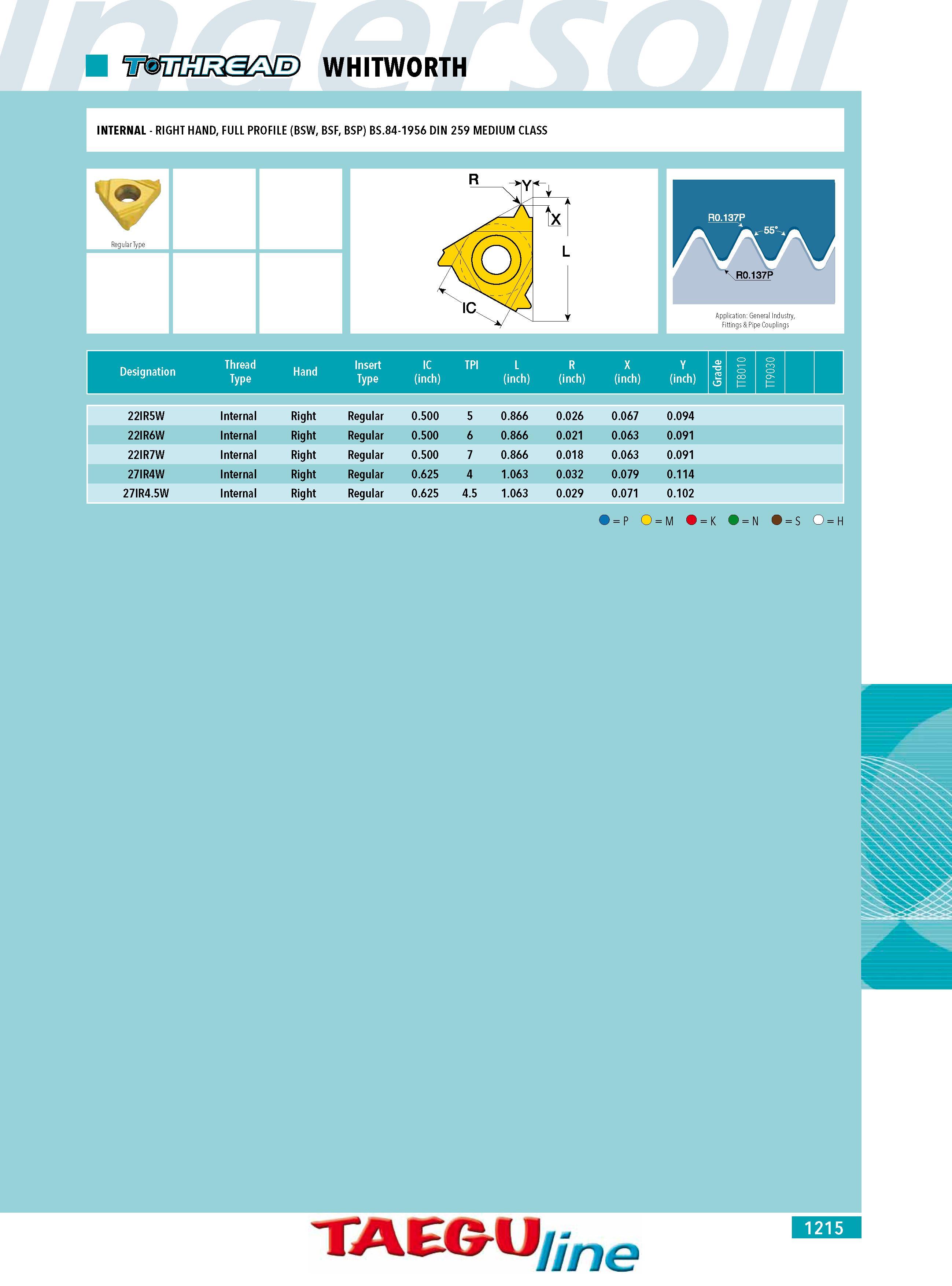

1213 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1215

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1215 1213 Lab2u

WHITWORTH INTERNAL - RIGHT HAND FULL PROFILE (BSW BSF BSP) BS.84-1956 DIN 259 MEDIUM CLASS xlY tx pj L IC O i Designation LRXY (inch) (inch) (inch) (inch) 22IR5W Internal Right Regular 0.500 5 0.866 0.026 0.067 0.094 22IR6W Internal Right Regular 0.500 6 0.866 0.021 0.063 0.091 22IR7W Internal Right Regular 0.500 7 0.866 0.018 0.063 0.091 27IR4W Internal Right Regular 0.625 4 1.063 0.032 0.079 0.114 27IR4.5W Internal Right Regular 0.625 4.5 1.063 0.029 0.071 0.102 ) P O M O K N ) S O H Insert Type IC (inch) TPI Hand TAEG-1l 7e
