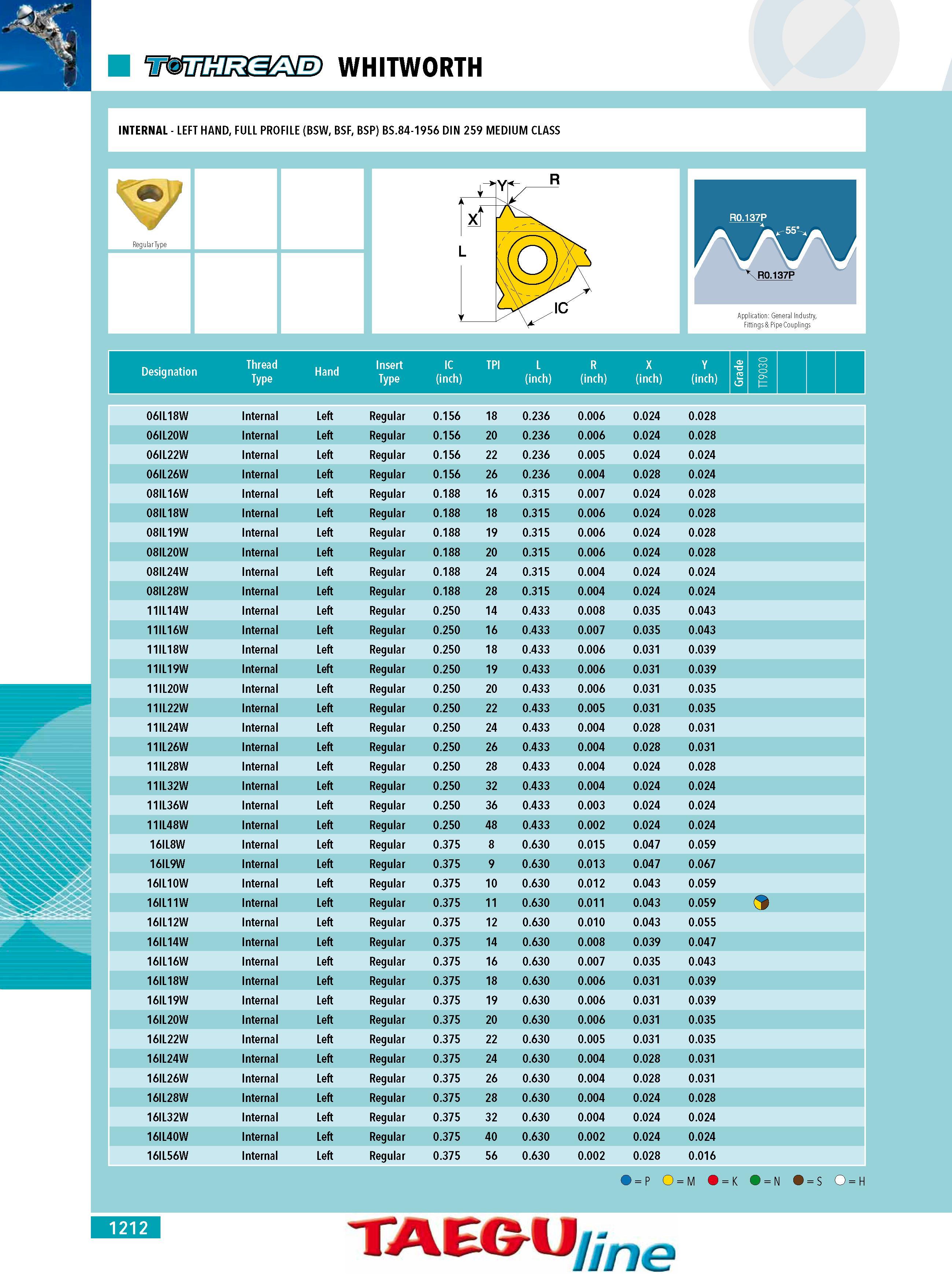

1210 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1212

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1212 1210 Lab2u

WHITWORTH Regular Type Designation t - Si y y L m v 1C L R X Y (inch) (inch) (inch) (inch) 06IL18W Internal Left Regular 0.156 18 0.236 0.006 0.024 0.028 06IL20W Internal Left Regular 0.156 20 0.236 0.006 0.024 0.028 06IL22W Internal Left Regular 0.156 22 0.236 0.005 0.024 0.024 06IL26W Internal Left Regular 0.156 26 0.236 0.004 0.028 0.024 08IL16W Internal Left Regular 0.188 16 0.315 0.007 0.024 0.028 08IL18W Internal Left Regular 0.188 18 0.315 0.006 0.024 0.028 08IL19W Internal Left Regular 0.188 19 0.315 0.006 0.024 0.028 08IL20W Internal Left Regular 0.188 20 0.315 0.006 0.024 0.028 08IL24W Internal Left Regular 0.188 24 0.315 0.004 0.024 0.024 08IL28W Internal Left Regular 0.188 28 0.315 0.004 0.024 0.024 11IL14W Internal Left Regular 0.250 14 0.433 0.008 0.035 0.043 11IL16W Internal Left Regular 0.250 16 0.433 0.007 0.035 0.043 11IL18W Internal Left Regular 0.250 18 0.433 0.006 0.031 0.039 11IL19W Internal Left Regular 0.250 19 0.433 0.006 0.031 0.039 11IL20W Internal Left Regular 0.250 20 0.433 0.006 0.031 0.035 11IL22W Internal Left Regular 0.250 22 0.433 0.005 0.031 0.035 11IL24W Internal Left Regular 0.250 24 0.433 0.004 0.028 0.031 11IL26W Internal Left Regular 0.250 26 0.433 0.004 0.028 0.031 11IL28W Internal Left Regular 0.250 28 0.433 0.004 0.024 0.028 11IL32W Internal Left Regular 0.250 32 0.433 0.004 0.024 0.024 11IL36W Internal Left Regular 0.250 36 0.433 0.003 0.024 0.024 11IL48W Internal Left Regular 0.250 48 0.433 0.002 0.024 0.024 16IL8W Internal Left Regular 0.375 8 0.630 0.015 0.047 0.059 16IL9W Internal Left Regular 0.375 9 0.630 0.013 0.047 0.067 16IL10W Internal Left Regular 0.375 10 0.630 0.012 0.043 0.059 16IL11W Internal Left Regular 0.375 11 0.630 0.011 0.043 0.059 16IL12W Internal Left Regular 0.375 12 0.630 0.010 0.043 0.055 16IL14W Internal Left Regular 0.375 14 0.630 0.008 0.039 0.047 16IL16W Internal Left Regular 0.375 16 0.630 0.007 0.035 0.043 16IL18W Internal Left Regular 0.375 18 0.630 0.006 0.031 0.039 16IL19W Internal Left Regular 0.375 19 0.630 0.006 0.031 0.039 16IL20W Internal Left Regular 0.375 20 0.630 0.006 0.031 0.035 16IL22W Internal Left Regular 0.375 22 0.630 0.005 0.031 0.035 16IL24W Internal Left Regular 0.375 24 0.630 0.004 0.028 0.031 16IL26W Internal Left Regular 0.375 26 0.630 0.004 0.028 0.031 16IL28W Internal Left Regular 0.375 28 0.630 0.004 0.024 0.028 16IL32W Internal Left Regular 0.375 32 0.630 0.004 0.024 0.024 16IL40W Internal Left Regular 0.375 40 0.630 0.002 0.024 0.024 16IL56W Internal Left Regular 0.375 56 0.630 0.002 0.028 0.016 Insert Type IC (inch) TPI Hand 1212 O P O M O K O N O S O H lACG U e
