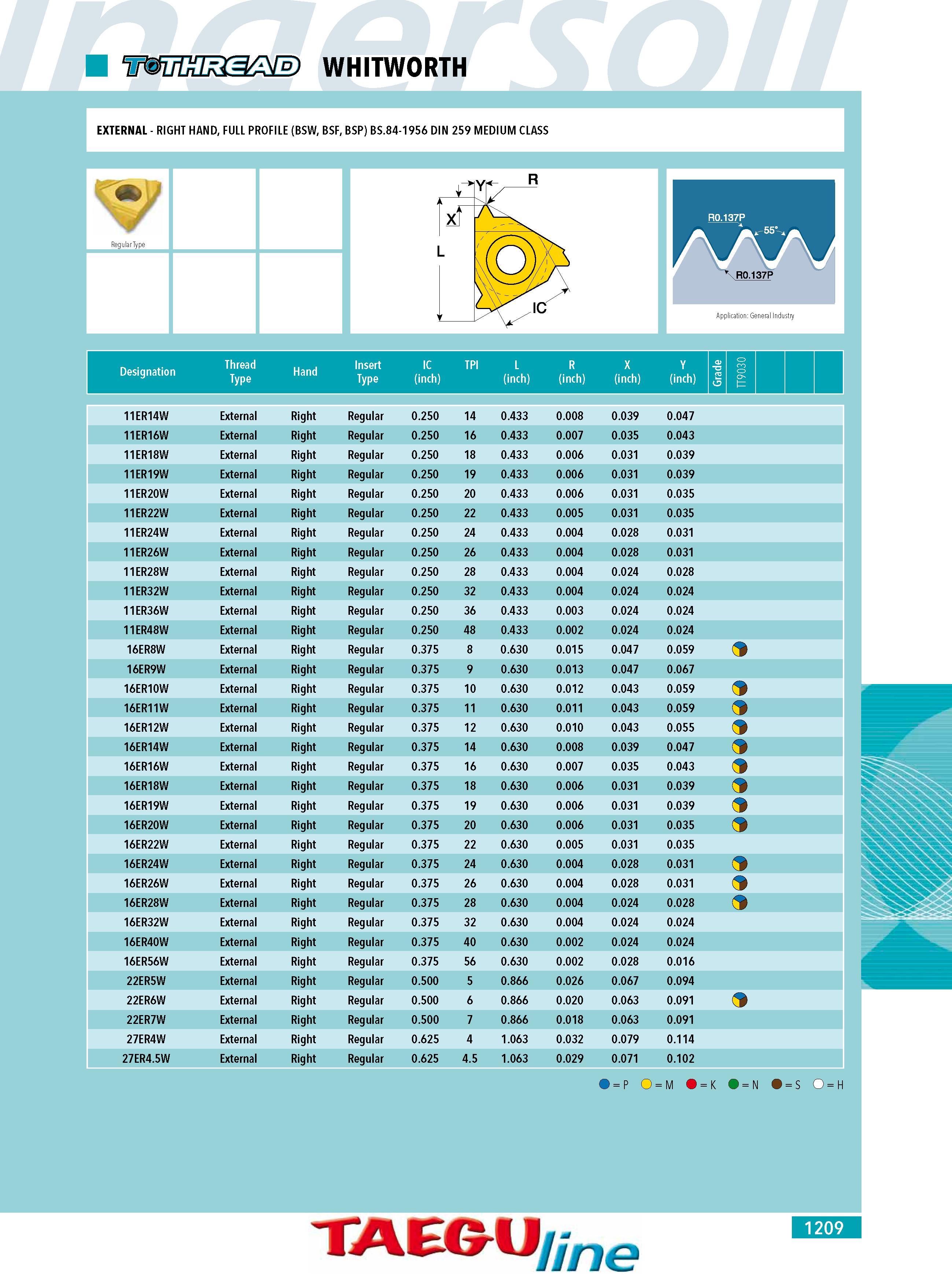

WHITWORTH Regular Type t '"xl Y y L IC Application: General Industry Designation Thread Type Hand Insert Type IC (inch) TPI L (inch) R (inch) X (inch) Y -g (inch) J O CO 1 11ER14W External Right Regular 0.250 14 0.433 0.008 0.039 0.047 11ER16W External Right Regular 0.250 16 0.433 0.007 0.035 0.043 11ER18W External Right Regular 0.250 18 0.433 0.006 0.031 0.039 11ER19W External Right Regular 0.250 19 0.433 0.006 0.031 0.039 11ER20W External Right Regular 0.250 20 0.433 0.006 0.031 0.035 11ER22W External Right Regular 0.250 22 0.433 0.005 0.031 0.035 11ER24W External Right Regular 0.250 24 0.433 0.004 0.028 0.031 11ER26W External Right Regular 0.250 26 0.433 0.004 0.028 0.031 11ER28W External Right Regular 0.250 28 0.433 0.004 0.024 0.028 11ER32W External Right Regular 0.250 32 0.433 0.004 0.024 0.024 11ER36W External Right Regular 0.250 36 0.433 0.003 0.024 0.024 11ER48W External Right Regular 0.250 48 0.433 0.002 0.024 0.024 16ER8W External Right Regular 0.375 8 0.630 0.015 0.047 0.059 16ER9W External Right Regular 0.375 9 0.630 0.013 0.047 0.067 16ER10W External Right Regular 0.375 10 0.630 0.012 0.043 0.059 16ER11W External Right Regular 0.375 11 0.630 0.011 0.043 0.059 O 16ER12W External Right Regular 0.375 12 0.630 0.010 0.043 0.055 o 16ER14W External Right Regular 0.375 14 0.630 0.008 0.039 0.047 16ER16W External Right Regular 0.375 16 0.630 0.007 0.035 0.043 16ER18W External Right Regular 0.375 18 0.630 0.006 0.031 0.039 16ER19W External Right Regular 0.375 19 0.630 0.006 0.031 0.039 16ER20W External Right Regular 0.375 20 0.630 0.006 0.031 0.035 o 16ER22W External Right Regular 0.375 22 0.630 0.005 0.031 0.035 16ER24W External Right Regular 0.375 24 0.630 0.004 0.028 0.031 o 16ER26W External Right Regular 0.375 26 0.630 0.004 0.028 0.031 16ER28W External Right Regular 0.375 28 0.630 0.004 0.024 0.028 16ER32W External Right Regular 0.375 32 0.630 0.004 0.024 0.024 16ER40W External Right Regular 0.375 40 0.630 0.002 0.024 0.024 16ER56W External Right Regular 0.375 56 0.630 0.002 0.028 0.016 22ER5W External Right Regular 0.500 5 0.866 0.026 0.067 0.094 22ER6W External Right Regular 0.500 6 0.866 0.020 0.063 0.091 o 22ER7W External Right Regular 0.500 7 0.866 0.018 0.063 0.091 27ER4W External Right Regular 0.625 4 1.063 0.032 0.079 0.114 27ER4.5W External Right Regular 0.625 4.5 1.063 0.029 0.071 0.102 O P O M O K O N O S O H TAEG-tl 7e 1209
