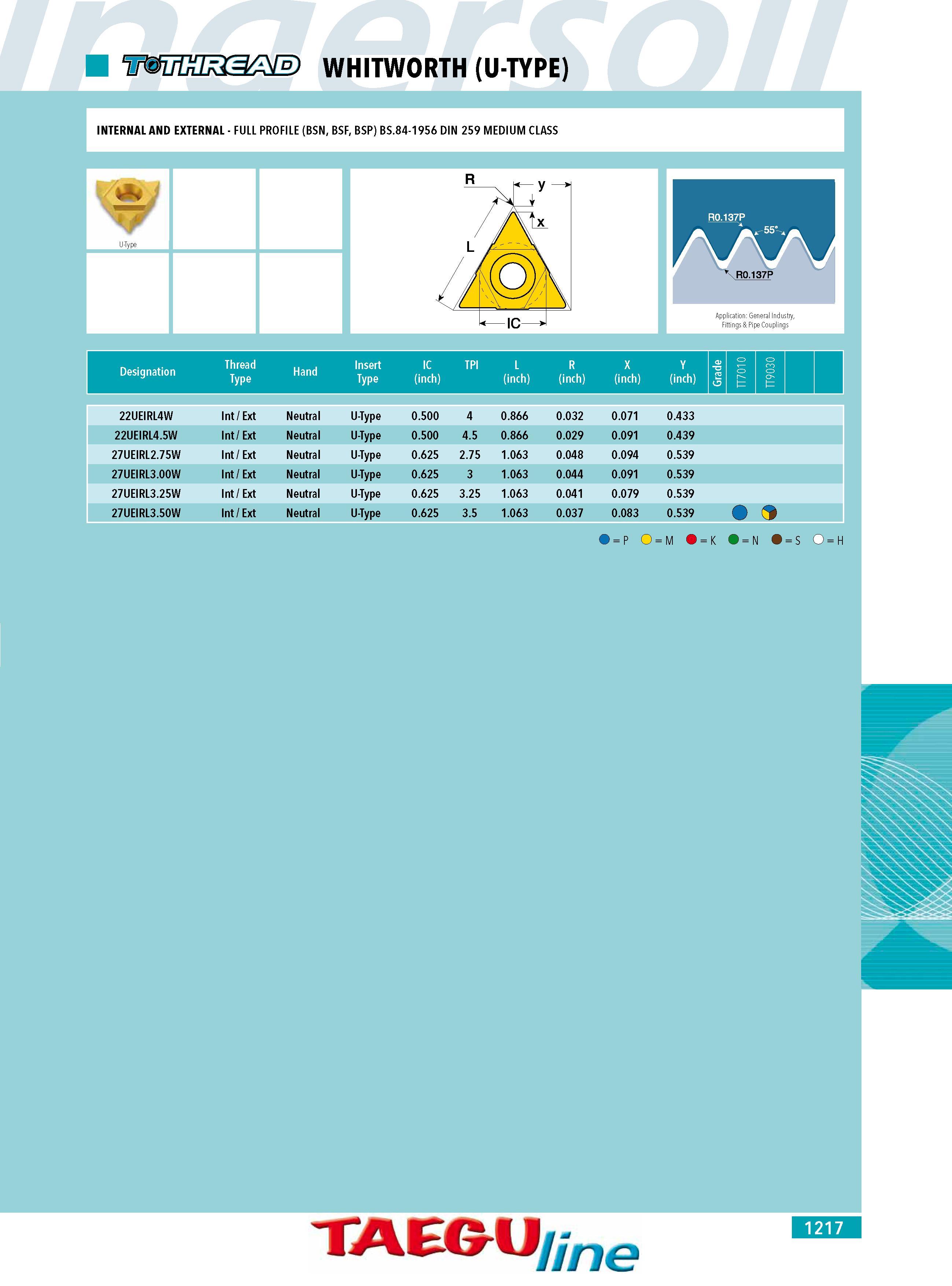

WHITWORTH (U-TYPE) U-Type n U Designation L R X Y (inch) (inch) (inch) (inch) TT7010 TT9030 22UEIRL4W Int Ext Neutral U-Type 0.500 4 0.866 0.032 0.071 0.433 22UEIRL4.5W Int Ext Neutral U-Type 0.500 4.5 0.866 0.029 0.091 0.439 27UEIRL2.75W Int Ext Neutral U-Type 0.625 2.75 1.063 0.048 0.094 0.539 27UEIRL3.00W Int Ext Neutral U-Type 0.625 3 1.063 0.044 0.091 0.539 27UEIRL3.25W Int Ext Neutral U-Type 0.625 3.25 1.063 0.041 0.079 0.539 27UEIRL3.50W Int Ext Neutral U-Type 0.625 3.5 1.063 0.037 0.083 0.539 9 ) P O M ) K ) N ) S O H Insert Type IC (inch) TPI Hand TAEG-1l 7e 1217
