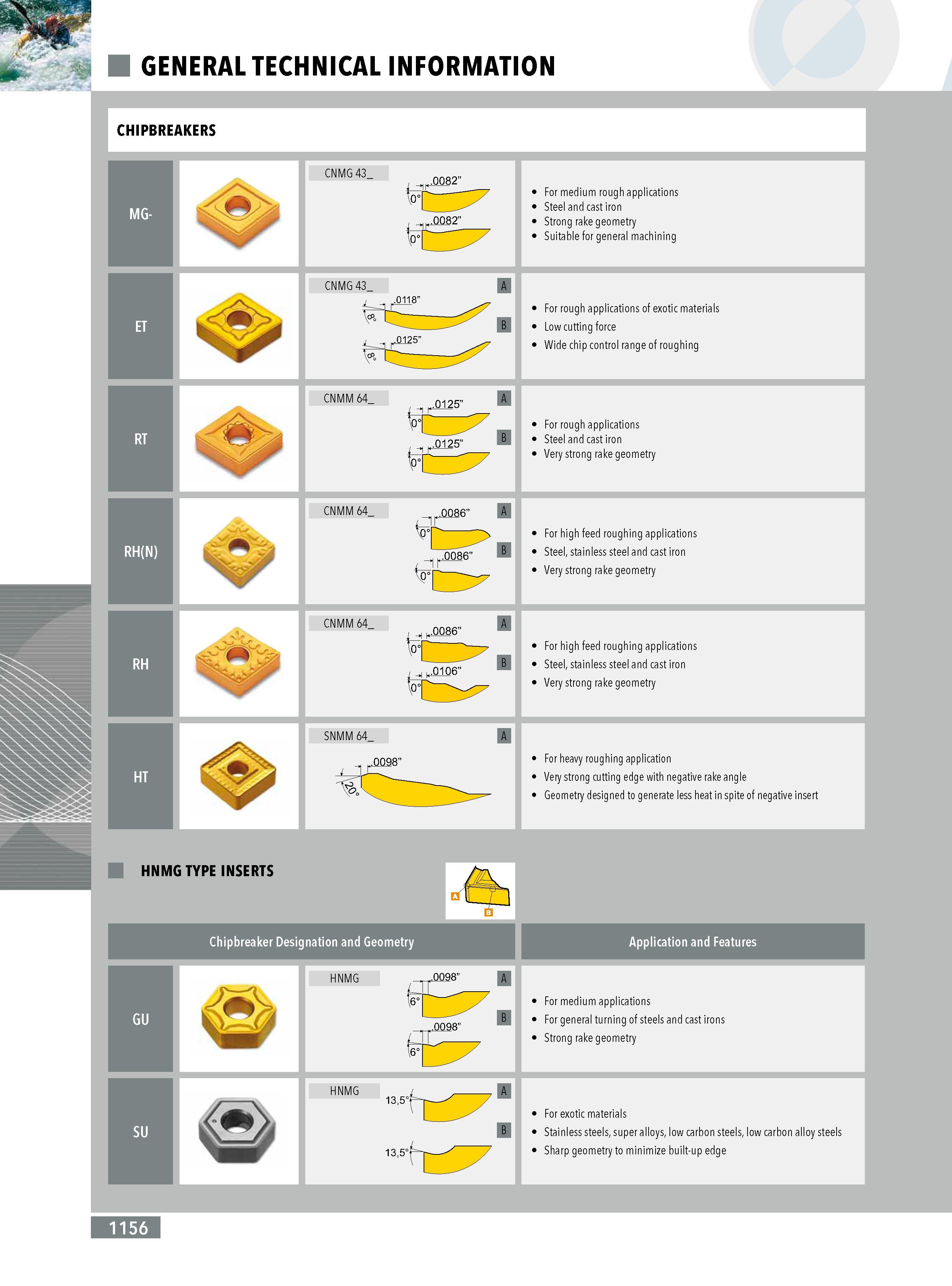

GENERAL TECHNICAL INFORMATION CHIPBREAKERS HNMG TYPE INSERTS CNMG 43 .0082 CNMG 43. For medium rough applications Steel and cast iron Strong rake geometry Suitable for general machining For rough applications of exotic materials Low cutting force Wide chip control range of roughing CNMM 64 CNMM 64 .0086" For rough applications Steel and cast iron Very strong rake geometry For high feed roughing applications Steel stainless steel and cast iron Very strong rake geometry CNMM 64 SNMM 64 A .0098 For high feed roughing applications Steel stainless steel and cast iron Very strong rake geometry For heavy roughing application Very strong cutting edge with negative rake angle Geometry designed to generate less heat in spite of negative insert Chipbreaker Designation and Geometry Application and Features HNMG HNMG 135 135 For medium applications For general turning of steels and cast irons Strong rake geometry For exotic materials Stainless steels super alloys low carbon steels low carbon alloy steels Sharp geometry to minimize built-up edge GU SU 1156
