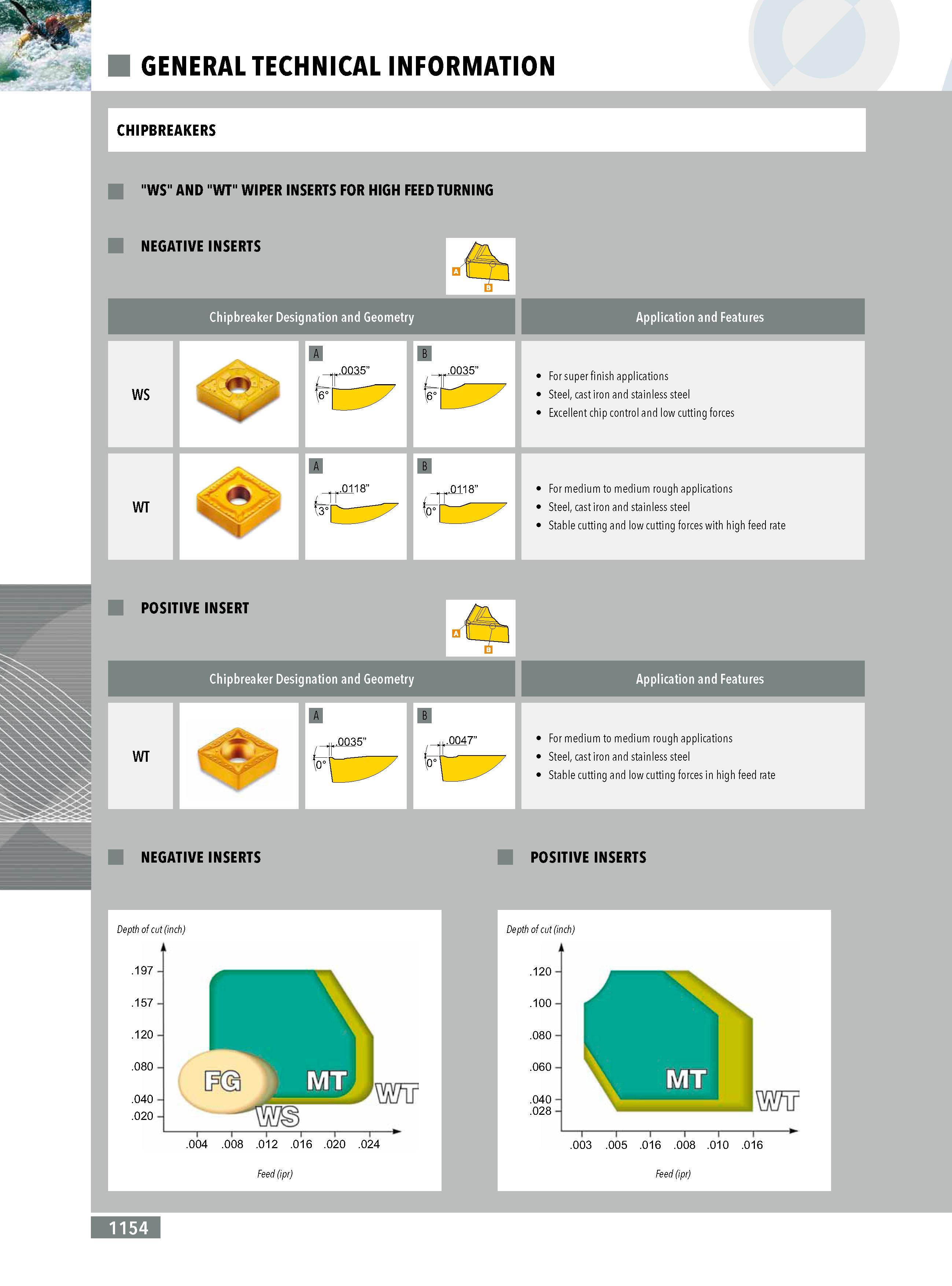

GENERAL TECHNICAL INFORMATION CHIPBREAKERS "WS" AND "WT" WIPER INSERTS FOR HIGH FEED TURNING NEGATIVE INSERTS WS WT Chipbreaker Designation and Geometry A A .0118" B .0035" B .0118" Application and Features For super finish applications Steel cast iron and stainless steel Excellent chip control and low cutting forces For medium to medium rough applications Steel cast iron and stainless steel Stable cutting and low cutting forces with high feed rate POSITIVE INSERT Chipbreaker Designation and Geometry WT A t .0035 W Application and Features For medium to medium rough applications Steel cast iron and stainless steel Stable cutting and low cutting forces in high feed rate NEGATIVE INSERTS POSITIVE INSERTS Depth of cut (inch) .004 .008 .012 .016 .020 .024 Feed (ipr) Depth of cut (inch) T 1 1 I I T .003 .005 .016 .008 .010 .016 Feed (ipr) 1154
