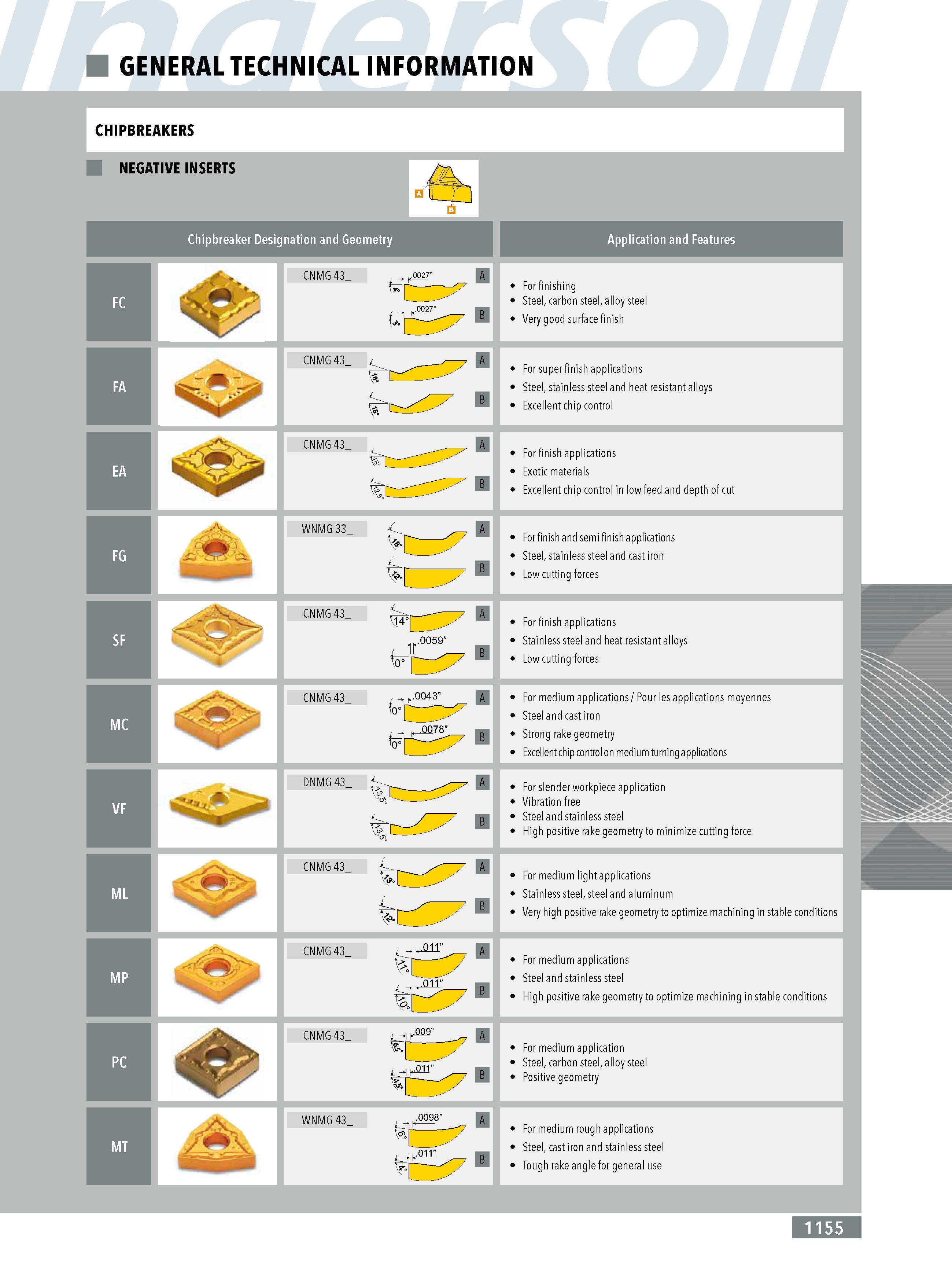

GENERAL TECHNICAL INFORMATION CHIPBREAKERS NEGATIVE INSERTS Chipbreaker Designation and Geometry Application and Features CNMG 43 CNMG 43 CNMG 43 WNMG 33 CNMG 43 CNMG 43 DNMG 43 CNMG 43 CNMG 43 CNMG 43 WNMG 43 .0043 .011" .011" .0098" A B A B A B A B A B A B A B A B For finishing Steel carbon steel alloy steel Very good surface finish For super finish applications Steel stainless steel and heat resistant alloys Excellent chip control For finish applications Exotic materials Excellent chip control in low feed and depth of cut For finish and semi finish applications Steel stainless steel and cast iron Low cutting forces For finish applications Stainless steel and peat resistant alloys Low cutting forces For medium applications Pour les applications moyennes Steel and cast iron Strong rake geometry Excellent chip control on medium turning applications For slender workpiece application Vibration free Steel and stainless steel High positive rake geometry to minimize cutting force For medium light applications Stainless steel steel and aluminum Very high positive rake geometry to optimize machining in stable conditions For medium applications Steel and stainless steel High positive rake geometry to optimize machining in stable conditions For medium application Steel carbon steel alloy steel Positive geometry For medium rough applications Steel cast iron and stainless steel Tough rake angle for general use H55
