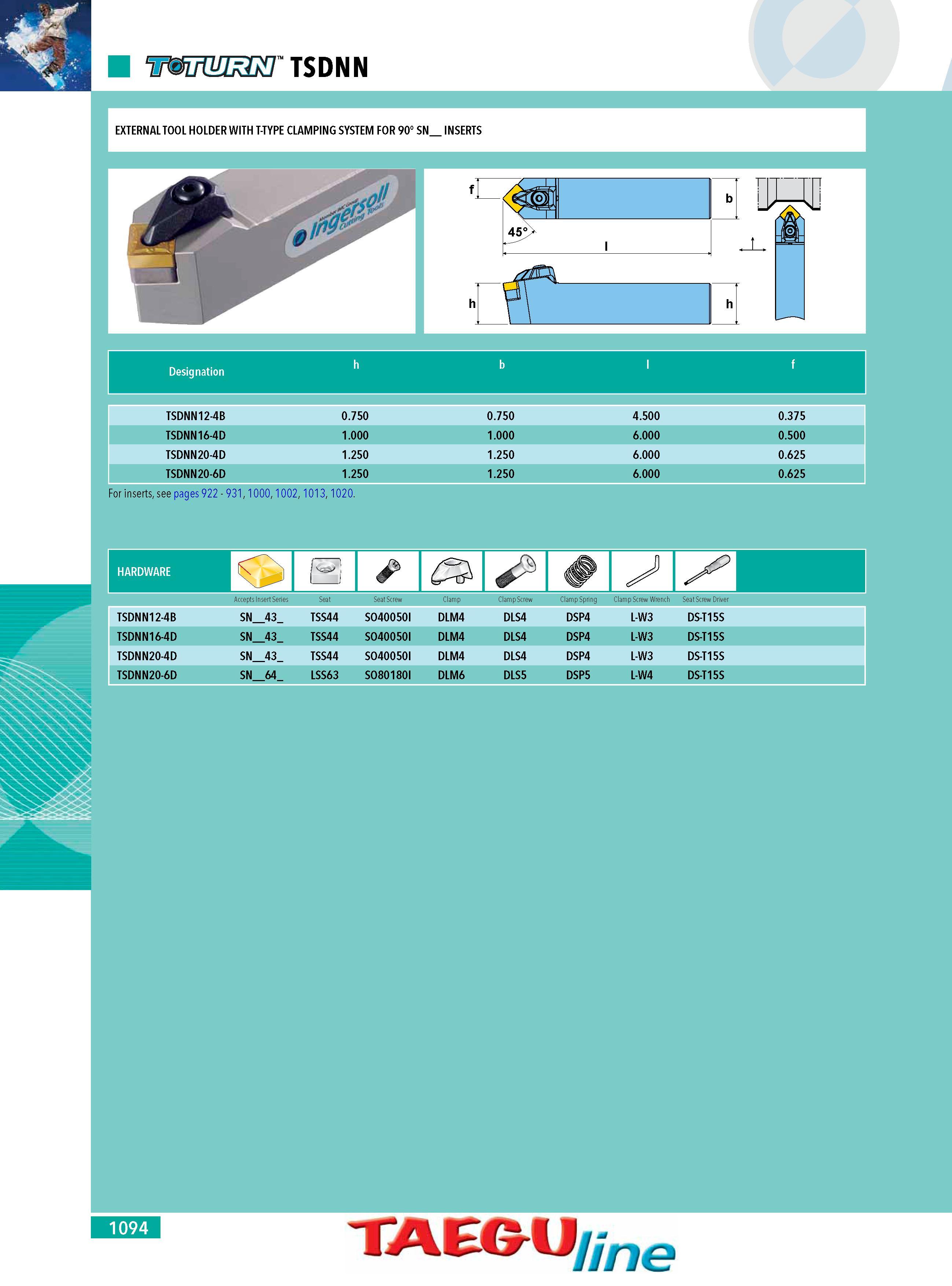

TSDNN EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 90 SN INSERTS Designation TSDNN12-4B 0.750 0.750 4.500 0.375 TSDNN16-4D 1.000 1.000 6.000 0.500 TSDNN20-4D 1.250 1.250 6.000 0.625 TSDNN20-6D 1.250 1.250 6.000 0.625 For inserts see pages 922 - 931 1000 1002 1013 1020. Accepts Insert Series Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TSDNN12-4B SN 43 TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSDNN16-4D SN 43 TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSDNN20-4D SN 43 TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSDNN20-6D SN 64 LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S 1094 i G4J ie
