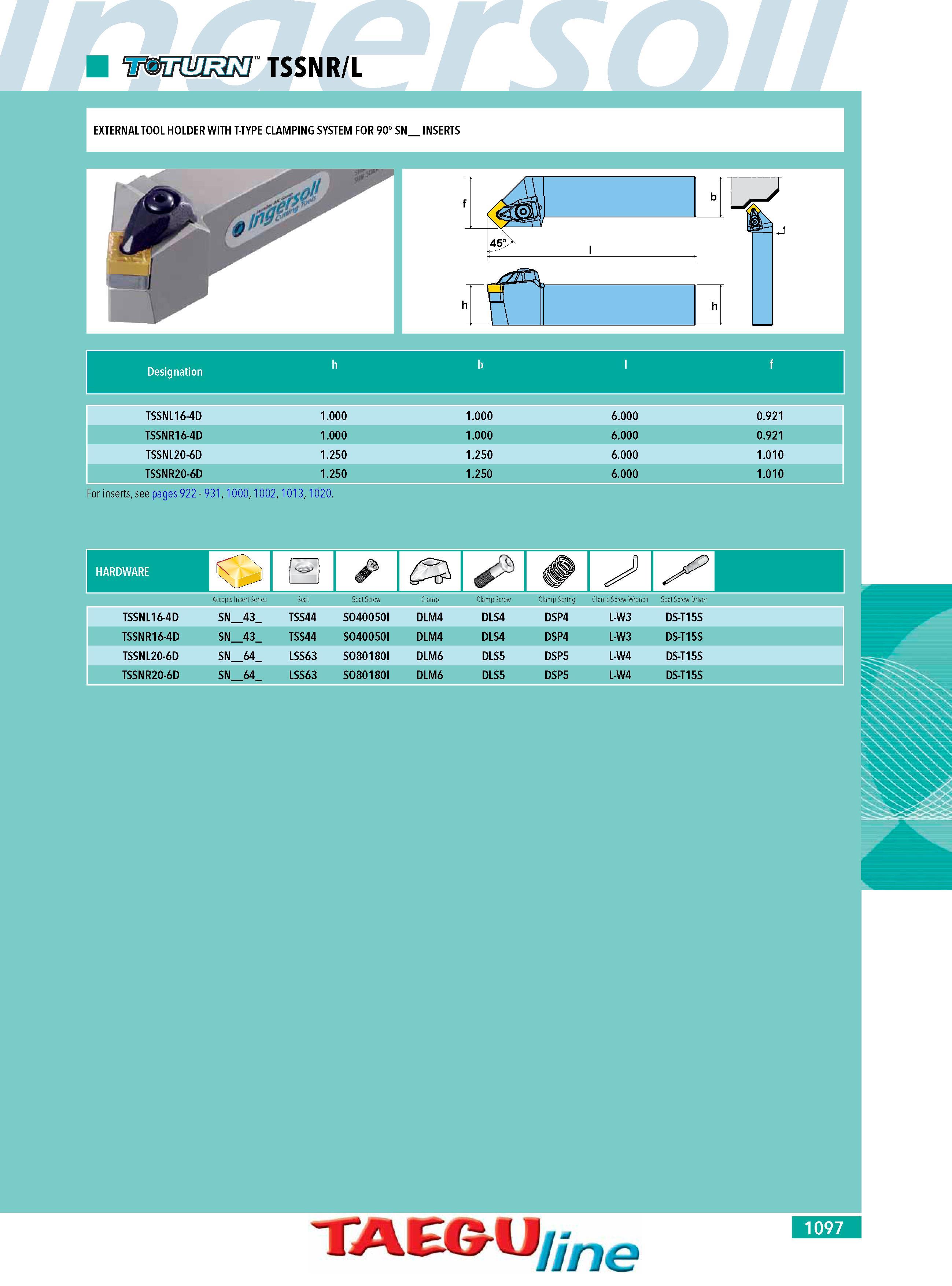

tssnr EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 90 SN INSERTS Designation TSSNL16-4D 1.000 1.000 6.000 0.921 TSSNR16-4D 1.000 1.000 6.000 0.921 TSSNL20-6D 1.250 1.250 6.000 1.010 TSSNR20-6D 1.250 1.250 6.000 1.010 For inserts see pages 922 - 931 1000 1002 1013 1020. Accepts Insert Series Seat Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TSSNL16-4D SN 43 TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSSNR16-4D SN 43 TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSSNL20-6D SN 64 LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S TSSNR20-6D SN 64 LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S TAEGU line 1097
