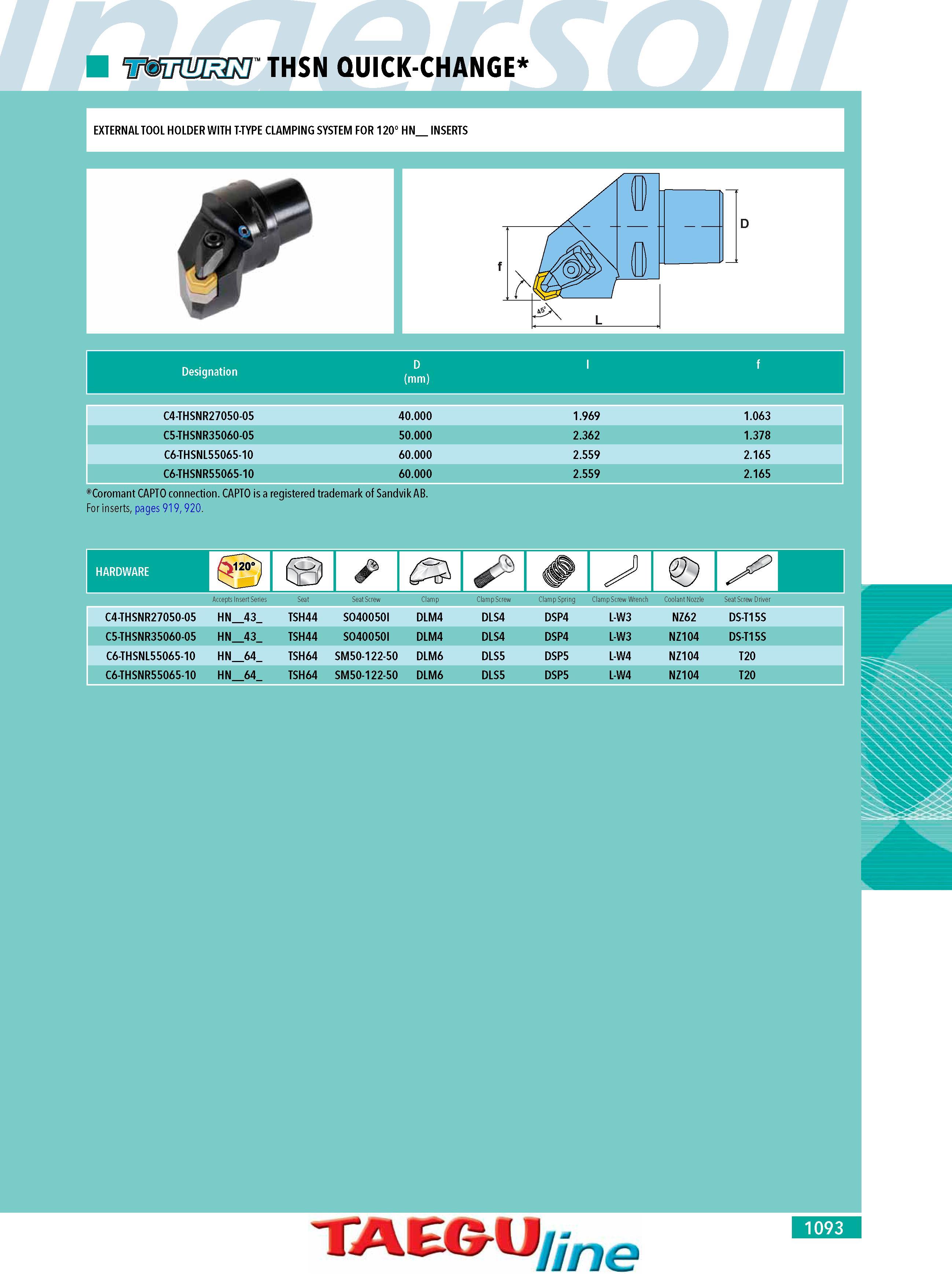

thsn quick-change EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 120 HN INSERTS Designation (J C4-THSNR27050-05 40.000 1.969 1.063 C5-THSNR35060-05 50.000 2.362 1.378 C6-THSNL55065-10 60.000 2.559 2.165 C6-THSNR55065-10 60.000 2.559 2.165 Coromant CAPTO connection. CAPTO is a registered trademark of Sandvik AB. For inserts pages 919 920. Accepts Insert Series Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Coolant Nozzle Seat Screw Driver C4-THSNR27050-05 HN 43 TSH44 SO40050I DLM4 DLS4 DSP4 L-W3 NZ62 DS-T15S C5-THSNR35060-05 HN 43 TSH44 SO40050I DLM4 DLS4 DSP4 L-W3 NZ104 DS-T15S C6-THSNL55065-10 HN 64 TSH64 SM50-122-50 DLM6 DLS5 DSP5 L-W4 NZ104 T20 C6-THSNR55065-10 HN 64 TSH64 SM50-122-50 DLM6 DLS5 DSP5 L-W4 NZ104 T20 j S&l3 jne 1093
