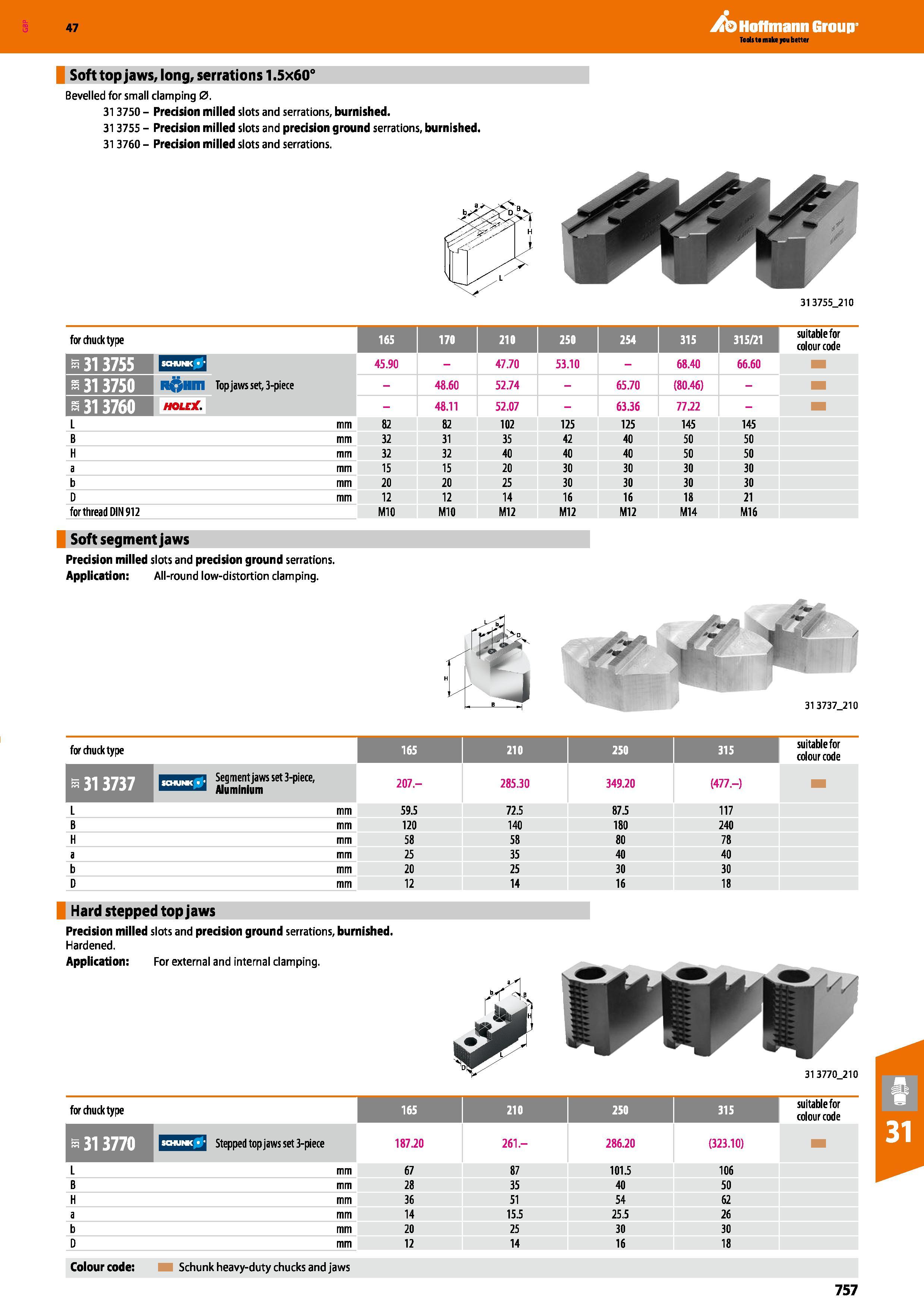

Hoffmann Group 47 Soft top jaws, long, serrations 1.5x60° Bevelled for small clamping 0. 31 3750 - Precision milled slots and serrations, burnished. 31 3755 - Precision milled slots and precision ground serrations, burnished. 31 3760 - Precision milled slots and serrations. for chuck type 165 170 210 250 254 315 315/21 suitable for colour code 313755 45.90 - 47.70 53.10 - 68.40 66.60 313750 ROHm Top jaws set, 3-piece - 48.60 52.74 - 65.70 (80.46) - 313760 HOLE . - 48.11 52.07 - 63.36 77.22 - L mm 82 82 102 125 125 145 145 B mm 32 31 35 42 40 50 50 H mm 32 32 40 40 40 50 50 a mm 15 15 20 30 30 30 30 b mm 20 20 25 30 30 30 30 D mm 12 12 14 16 16 18 21 for thread DIN 912 M10 M10 Ml 2 Ml 2 Ml 2 M14 Ml 6 Soft segment jaws Precision milled slots and precision ground serrations. Application: All-round low-distortion clamping. for chuck type 165 210 250 suitable for colour code 313737 mrmwr Segment jaws set 3-piece, Aluminium 207- 285.30 349.20 (477.-) L mm 59.5 72.5 87.5 117 B mm 120 140 180 240 H mm 58 58 80 78 a mm 25 35 40 40 b mm 20 25 30 30 D mm 12 14 16 18 Hard stepped top jaws Precision milled slots and precision ground serrations, burnished. Hardened. Application: For external and internal clamping. 31 3770_210 for chuck type 165 210 250 315 suitable for colour code Stepped top jaws set 3-piece 187.20 261.- 286.20 (323.10) - L mm 67 87 101.5 106 B mm 28 35 40 50 H mm 36 51 54 62 a mm 14 15.5 25.5 26 b mm 20 25 30 30 D mm 12 14 16 18 Colour code: Schunk heavy-duty chucks and jaws 31 3755_210 757
