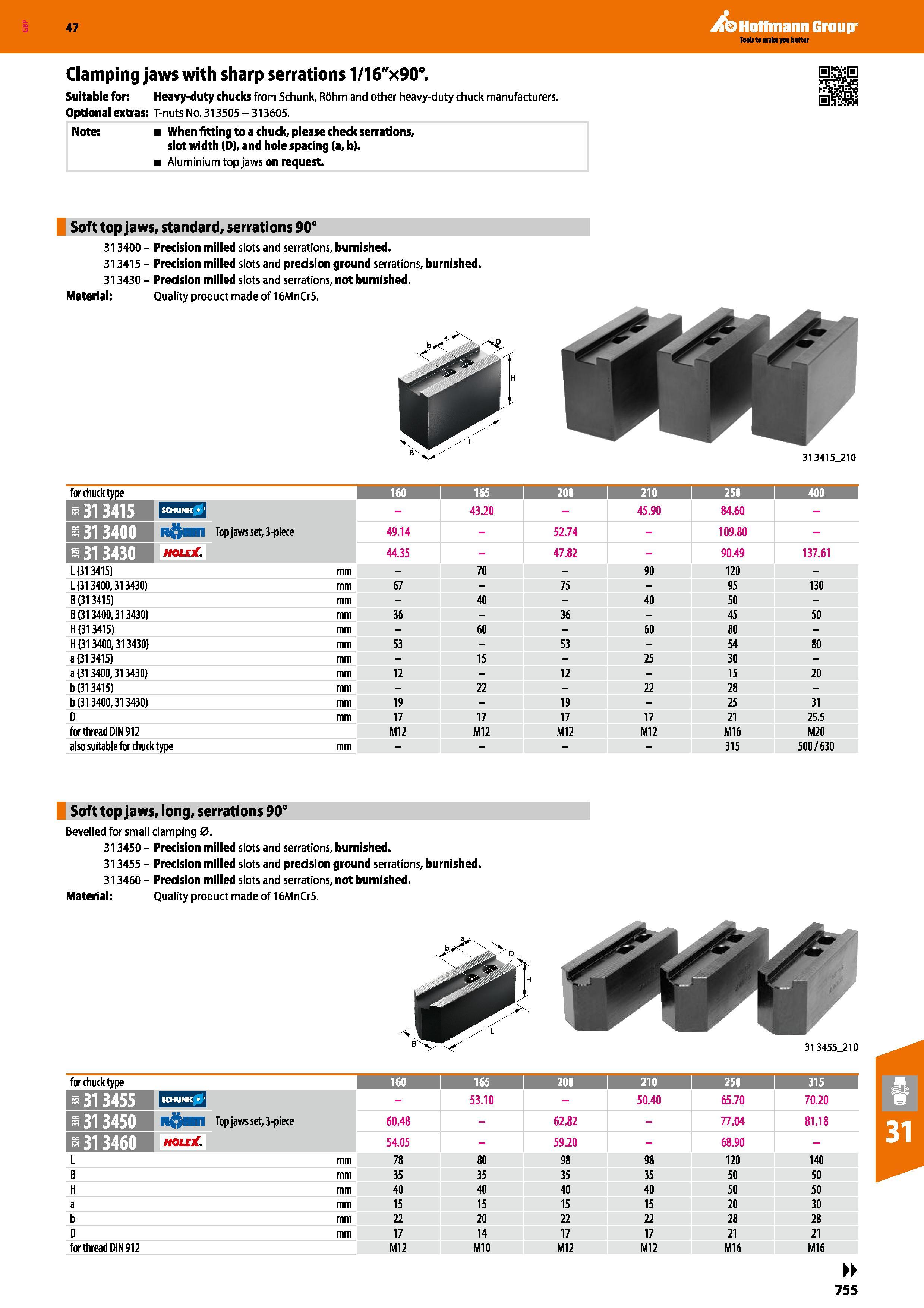

47 Hoffmann Group Clamping jaws with sharp serrations 1/16"x90°. Suitable for: Heavy-duty chucks from Schunk, Rohm and other heavy-duty chuck manufacturers. Optional extras: T-nuts No. 313505 - 313605. Note: When fitting to a chuck, please check serrations, slot width (D), and hole spacing (a, b). Aluminium top jaws on request. Soft top jaws, standard, serrations 90° 313400 - Precision milled slots and serrations, burnished. 313415 - Precision milled slots and precision ground serrations, burnished. 313430 - Precision milled slots and serrations, not burnished. Material: Quality product made of 16MnCr5. 313415 210 for chuck type 160 I 165 200 210 i 250 I 400 IllciKE - 43.20 - 45.90 84.60 - R Hm Top jaws set, 3-piece 49.14 - 52.74 - 109.80 - h 313430 E33 44.35 - 47.82 - 90.49 137.61 L (313415 mm - 70 - 90 120 - L (313400,313430) mm 67 - 75 - 95 130 B (313415) mm - 40 - 40 50 - B (313400,313430) mm 36 - 36 - 45 50 H (313415) mm - 60 - 60 80 - H (313400,313430) mm 53 - 53 - 54 80 a (313415) mm - 15 - 25 30 - a (313400,313430) mm 12 - 12 - 15 20 b (313415) mm - 22 - 22 28 - b (313400,313430) mm 19 - 19 - 25 31 D mm 17 17 17 17 21 25.5 for thread DIN 912 M12 M12 M12 M12 M16 M20 also suitable for chuck type mm 315 500 / 630 Soft top jaws, long, serrations 90° Bevelled for small clamping 0. 313450 - Precision milled slots and serrations, burnished. 313455 - Precision milled slots and precision ground serrations, burnished. 313460 - Precision milled slots and serrations, not burnished. Material: Quality product made of 16MnCr5. 31 3455_210 for chuck type HHU 160 i 165 200 i 210 1 250 315 - 53.10 - 50.40 65.70 70.20 R Hm Top jaws set, 3-piece 60.48 - 62.82 - 77.04 81.18 -313460 OS 54.05 - 59.20 - 68.90 - L mm 78 80 98 98 120 140 B mm 35 35 35 35 50 50 H mm 40 40 40 40 50 50 a mm 15 15 15 15 20 30 b mm 22 20 22 22 28 28 D mm 17 14 17 17 21 21 forthread DIN912 M12 M10 M12 M12 M16 M16 755
