754 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.754

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 754 0754 ENG Lab2u

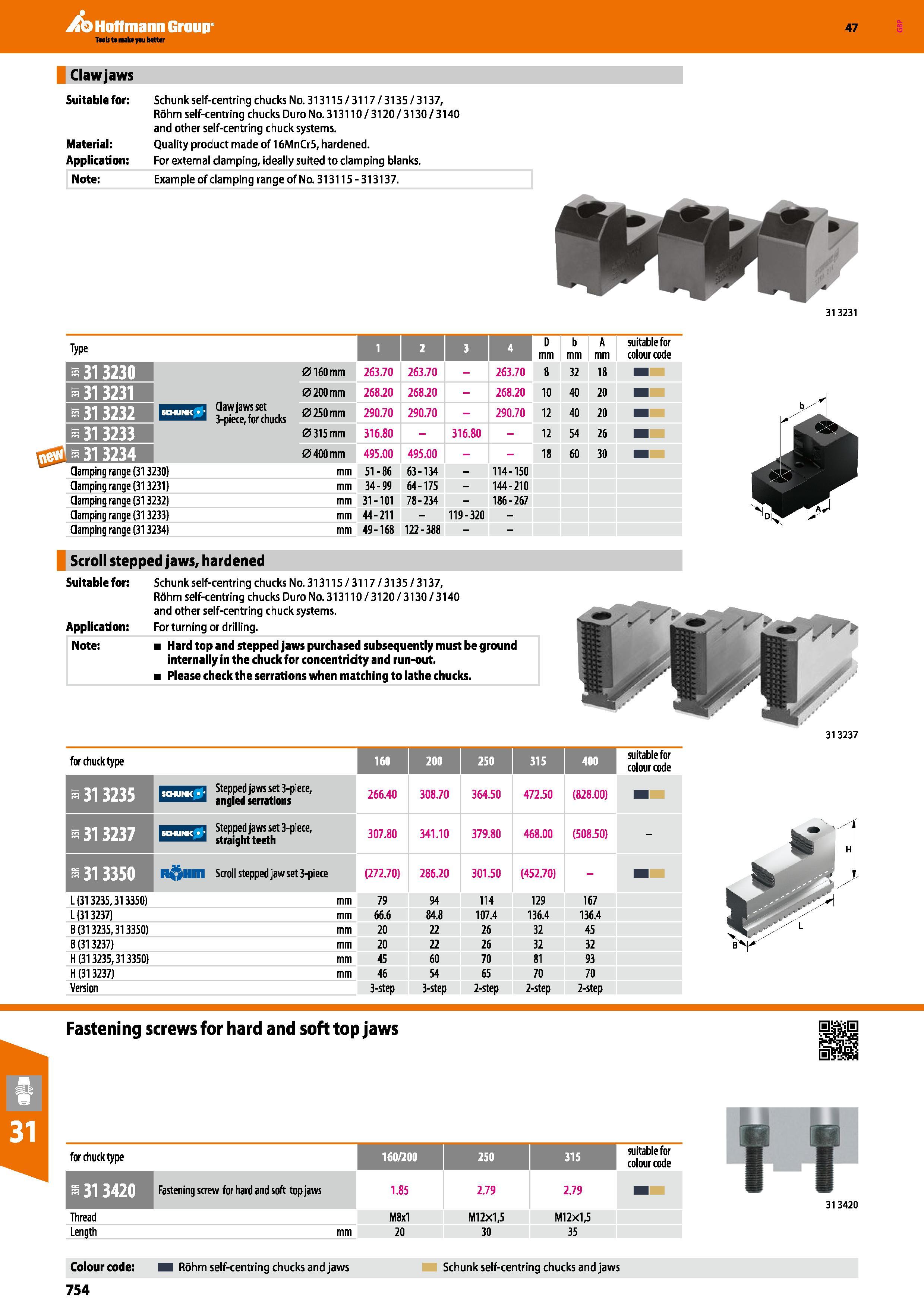

Hoffmann Group 47 Clawjaws Suitable for: Material: Application: Note: Schunkself-centring chucks No.313115/3117/3135/3137, Rohm self-centring chucks Duro No. 313110/3120/3130/3140 and other self-centring chuck systems. Quality product made of 16MnCr5, hardened. For external clamping, ideally suited to clamping blanks. Example of clamping range of No. 313115 -313137. 313231 Type 1 2 3 D D mm b mm A mm suitable for colour code 313230 0160 mm 263.70 263.70 - 263.70 8 32 18 313231 Clawjaws set 3-piece, for chucks 0200 mm 268.20 268.20 - 268.20 10 40 20 313232 0250 mm 290.70 290.70 - 290.70 12 40 20 313233 0315 mm 316.80 - 316.80 - 12 54 26 ipn 0400 mm 495.00 495.00 18 60 30 Clamping range (31 3230) mm 51-86 63-134 - 114-150 Clamping range (31 3231) mm 34-99 64-175 - 144-210 Clamping range (31 3232) mm 31-101 78-234 - 186-267 Clamping range (31 3233) mm 44-211 - 119-320 - Clamping range (313234) mm 49-168 122-388 Scroll stepped jaws, hardened Suitable for: Schunk self-centring chucks No. 313115 / 3117 / 3135 / 3137, Rohm self-centring chucks Duro No. 313110/3120/3130/3140 and other self-centring chuck systems. Application: For turning or drilling. Note: Hard top and stepped jaws purchased subsequently must be ground internally in the chuck for concentricity and run-out. Please check the serrations when matching to lathe chucks. 313237 for chuck type 160 250 315 suitable for colour code 5 313235 paPTMfB Stepped jaws set 3-piece, “ “I angled serrations 266.40 308.70 364.50 472.50 (828.00) a 313237 BPPT Stepped jaws set 3-piece, lunint straight teeth 307.80 341.10 379.80 468.00 (508.50) - 313350 R&HIT1 Scroll stepped jaw set 3-piece (272.70) 286.20 301.50 (452.70) - L (313235,313350) mm 79 94 114 129 167 L (313237) mm 66.6 84.8 107.4 136.4 136.4 B (313235,313350) mm 20 22 26 32 45 B (313237) mm 20 22 26 32 32 H (313235,313350) mm 45 60 70 81 93 H (313237) mm 46 54 65 70 70 Version 3-step 3-step 2-step 2-step 2-step Fastening screws for hard and soft top jaws for chuck type 160/200 250 315 suitable for colour code Fastening screw for hard and soft top jaws 1.85 2.79 2.79 Thread M8x1 M12x1,5 M12x1,5 Length mm 20 30 35 11 313420 Colour code: Rohm self-centring chucks and jaws 754 Schunk self-centring chucks and jaws
