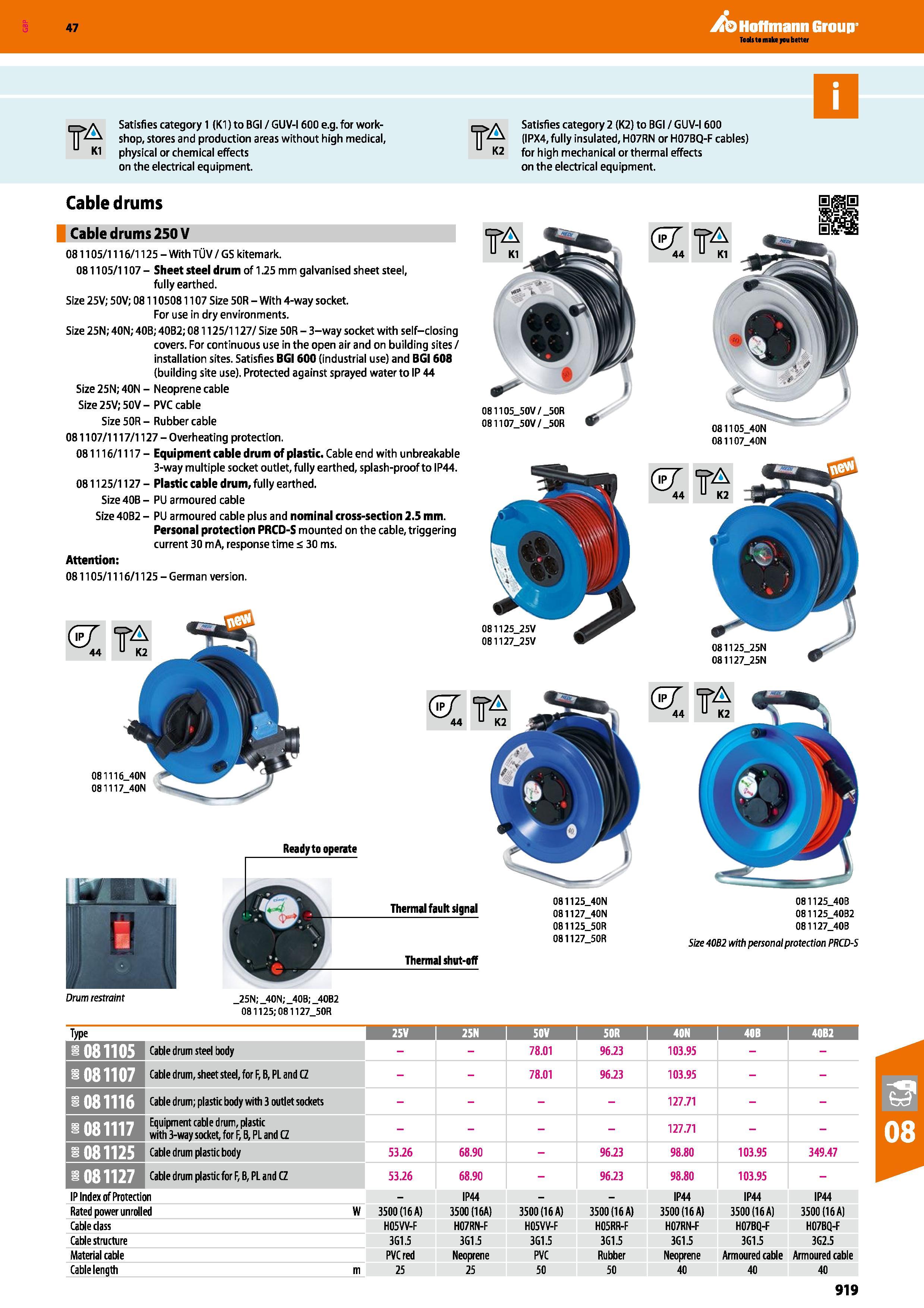

n. Satisfies category 1 (K1) to BGI / GUV-1600 e.g. for workshop, stores and production areas without high medical, K1 physical or chemical effects on the electrical equipment. TA u K2 , Satisfies category 2 (K2) to BGI / GUV-1600 (IPX4, fully insulated, H07RN or H07BQ-F cables) for high mechanical or thermal effects on the electrical equipment. Cable drums Cable drums 250 V _50R _50R 081105_50V/ 081107_50V/ 081125_40N 081127_40N 081125_50R 081127_50R 081105/1116/1125 - With TOV / GS kitemark. 081105/1107 - Sheet steel drum of 1.25 mm galvanised sheet steel, fully earthed. Size 25V; 50V; 081105081107 Size 50R - With 4-way socket. For use in dry environments. Size 25N; 40N; 40B; 40B2; 081125/1127/ Size 50R - 3-way socket with self-closing covers. For continuous use in the open air and on building sites / installation sites. Satisfies BGI 600 (industrial use) and BGI 608 (building site use). Protected against sprayed water to IP 44 Size 25N; 40N - Neoprene cable Size 25V; 50V- PVC cable Size50R- Rubber cable 081107/1117/1127 - Overheating protection. 081116/1117 - Equipment cable drum of plastic. Cable end with unbreakable 3-way multiple socket outlet, fully earthed, splash-proof to IP44. 081125/1127 - Plastic cable drum, fully earthed. Size 40B - PU armoured cable Size 40B2 - PU armoured cable plus and nominal cross-section 2.5 mm. Personal protection PRCD-S mounted on the cable, triggering current 30 mA, response time < 30 ms. Attention: 081105/1116/1125 - German version. 0811 0811 Ready to operate Thermal fault signal Thermal shut-off 081125_40B 081125_40B2 081127_40B Size 40B2 with personal protection PRCD-S Drum restraint _25N; _40N; _40B; _40B2 081125; 081127_50R Type 25V 25N 50V 50R 40N i 40B 40B2 I l fc ll l Cable drum steel body 78.01 96.23 103.95 S ll;f iy Cable drum, sheet steel, for F, B, PL and CZ 78.01 96.23 103.95 I fcTil Cable drum; plastic body with 3 outlet sockets - 127.71 Equipment cable drum, plastic with 3-way socket, for F, B, PL and CZ - 127.71 s Cable drum plastic body 53.26 68.90 - 96.23 98.80 103.95 349.47 I IlKtfcEJl Cable drum plastic for F,B, PL and CZ 53.26 68.90 - 96.23 98.80 103.95 - IP Index of Protection - IP44 IP44 IP44 IP44 Rated power unrolled W 3500 (16 A) 3500 (16A) 3500 (16 A) 3500 (16 A) 3500 (16 A) 3500 (16A) 3500 (16A) Cable dass H05VV-F H07RN-F H05VV-F H05RR-F H07RN-F H07BQ-F H07BQ-F Cable structure 3G1.5 3G1.5 3G1.5 3G1.5 3G1.5 3G1.5 3G2.5 Material cable PVC red Neoprene PVC Rubber Neoprene Armoured cable Armoured cable Cable length m 25 25 50 50 40 40 40 081107_40N 919
