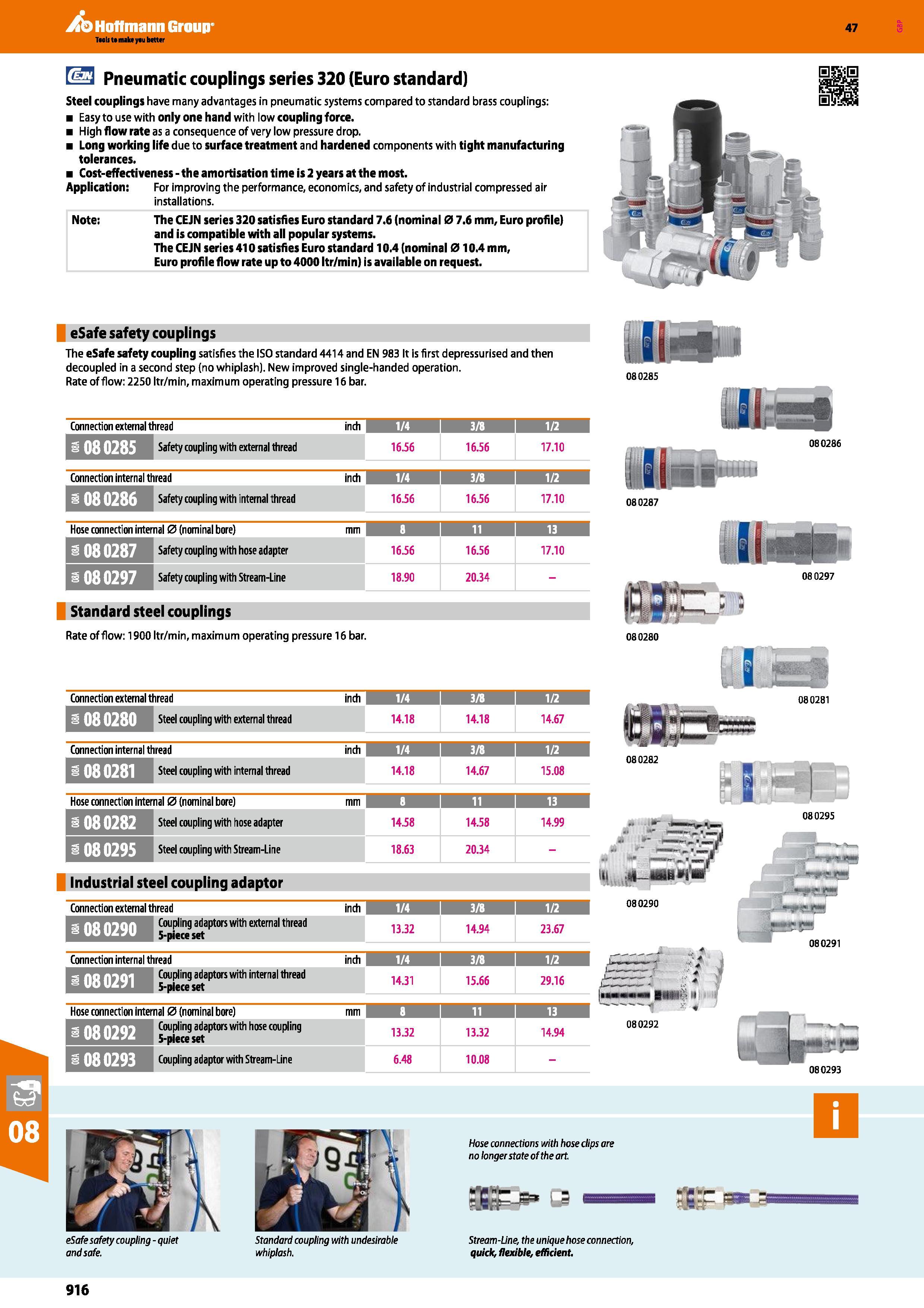

Hoffmann Group 47 Pneumatic couplings series 320 (Euro standard) Steel couplings have many advantages in pneumatic systems compared to standard brass couplings: Easy to use with only one hand with low coupling force. High flow rate as a consequence of very low pressure drop. Long working life due to surface treatment and hardened components with tight manufacturing tolerances. Cost-effectiveness - the amortisation time is 2 years at the most. Application: For improving the performance, economics, and safety of industrial compressed air installations. Note: The CEJN series 320 satisfies Euro standard 7.6 (nominal 0 7.6 mm, Euro profile) and is compatible with all popular systems. The CEJN series 410 satisfies Euro standard 10.4 (nominal 010.4 mm, Euro profile flow rate up to 4000 Itr/min) is available on request. eSafe safety couplings The eSafe safety coupling satisfies the ISO standard 4414 and EN 983 It is first depressurised and then decoupled in a second step (no whiplash). New improved single-handed operation. Rate of flow: 2250 Itr/min, maximum operating pressure 16 bar. 080285 Connection external thread ll'IM'M Safety coupling with external thread inch S 1/4 3/8 i 16.56 16.56 17.10 Connection internal thread inch 1/4 3/8 I 1/2 1 Safety coupling with internal thread 16.56 16.56 17.10 080286 1 080287 Hose connection internal 0 (nominal bore) mm 1 I 11 1 13 MIKIIEi B Safety coupling with hose adapter 16.56 16.56 17.10 Safety coupling with Stream-Line 18.90 20.34 - Standard steel couplings Rate of flow: 1900 Itr/min, maximum operating pressure 16 bar. 080280 Connection internal thread inch 1/4 3/8 I 1/2 Steel coupling with internal thread 14.18 14.67 15.08 080282 Hose connection internal 0 (nominal bore) mm I 11 1 13 1 Steel coupling with hose adapter 14.58 14.58 14.99 BjlKllpm Steel coupling with Stream-Line 18.63 20.34 - b Industrial steel coupling adaptor III Connection external thread inch 1/4 j 3/8 080290 Coupling adaptors with external thread 5-piece set 13.32 14.94 23.67 Connection internal thread inch 1/4 1 3/8 1/2 1 Coupling adaptors with internal thread 5-piece set 14.31 15.66 29.16 Hose connection internal 0 (nominal bore) mm 1 11 i 13 nm 1080292 Coupling adaptors with hose coupling 5-piece set 13.32 13.32 080292 14.94 080293 Coupling adaptor with Stream-Line 6.48 10.08 - eSafe safety coupling - quiet and safe. Standard coupling with undesirable whiplash. Hose connections with hose clips are no longer state of the art Stream-Line, the unique hose connection, quick, flexible, efficient. 080297 s Connection external thread inch 1/4 3/8 I 1/2 1 080281 MIKIiWjTM Steel coupling with external thread 14.18 14.18 14.67 080295 080291 T 5 5 080293 916
