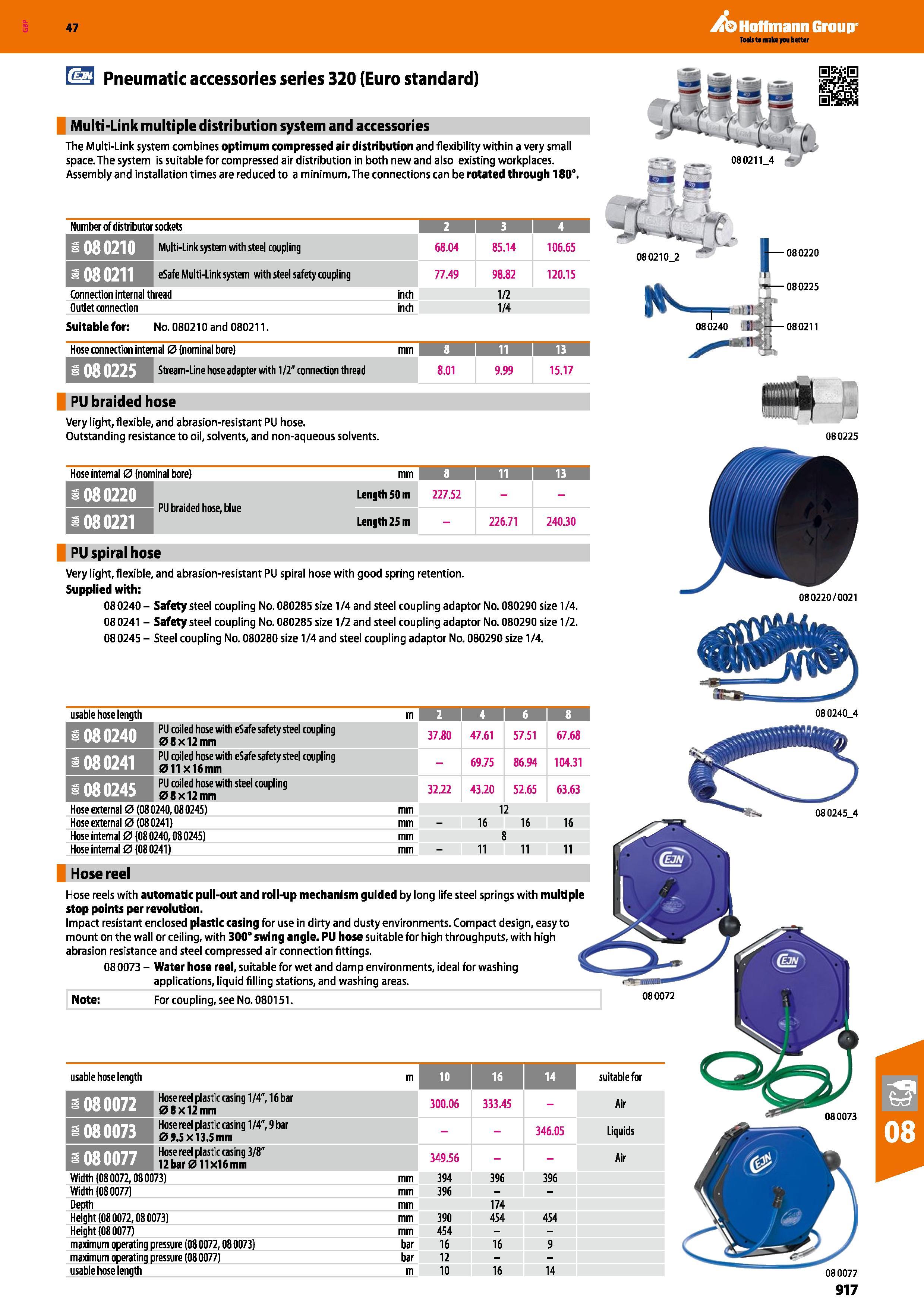

Hoffmann Group 47 Pneumatic accessories series 320 (Euro standard) Multi-Link multiple distribution system and accessories The Multi-Link system combines optimum compressed air distribution and flexibility within a very small space. The system is suitable for compressed air distribution in both new and also existing workplaces. Assembly and installation times are reduced to a minimum. The connections can be rotated through 180°. Number of distributor sockets 1 2 I 3 1 4 E 080210 Multi-Link system with steel coupling 68.04 85.14 106.65 1 080211 eSafe Multi-Link system with steel safety coupling 77.49 98.82 120.15 Connection internal thread inch 1/2 Outlet connection inch 1/4 Suitable for: No. 080210 and 080211. Hose connection internal 0 (nominal bore) mm 8 I 11 1 13 E 080225 Stream-Line hose adapter with 1/2" connection thread 8.01 9.99 15.17 PU braided hose Very light, flexible, and abrasion-resistant PU hose. Outstanding resistance to oil, solvents, and non-aqueous solvents. Hose internal 0 (nominal bore) mm 1 11 1 13 I i 08 0220 PU braided hose, blue Length 50 m 227.52 1080221 Length 25 m 226.71 240.30 PU spiral hose Very light, flexible, and abrasion-resistant PU spiral hose with good spring retention. Supplied with: 080240 - Safety steel coupling No. 080285 size 1/4 and steel coupling adaptor No. 080290 size 1/4. 080241 - Safety steel coupling No. 080285 size 1/2 and steel coupling adaptor No. 080290 size 1/2. 080245 - Steel coupling No. 080280 size 1/4 and steel coupling adaptor No. 080290 size 1/4. 080225 080220/0021 usable hose length m 2 1 4 8 PU coiled hose with eSafe safety steel coupling 08x12 mm 37.80 47.61 57.51 67.68 1080241 PU coiled hose with eSafe safety steel coupling 011 x 16 mm - 69.75 86.94 104.31 i 08 0245 PU coiled hose with steel coupling 08x12 mm 32.22 43.20 52.65 63.63 Hose external 0 (08 0240,08 0245) mm 12 Hose external 0(080241) mm - 16 16 16 Hose internal 0 (08 0240,08 0245) mm 8 Hose internal 0 (080241) mm - 11 11 11 Hose reel Hose reels with automatic pull-out and roll-up mechanism guided by long life steel springs with multiple stop points per revolution. Impact resistant enclosed plastic casing for use in dirty and dusty environments. Compact design, easy to mount on the wall or ceiling, with 300° swing angle. PU hose suitable for high throughputs, with high abrasion resistance and steel compressed air connection fittings. 08 0073 - Water hose reel, suitable for wet and damp environments, ideal for washing applications, liquid filling stations, and washing areas. Note: For coupling, see No. 080151. m suitable for 300.06 333.45 - Air 346.05 Liquids 349.56 mm 394 396 396 mm 396 mm 174 mm 390 454 454 mm 454 bar 16 16 9 bar 12 m 10 16 14 usable hose length Hose reel plastic casing 1/4", 16 bar 08x12 mm Hose reel plastic casing 1/4", 9 bar 09.5x13.5 mm Hose reel plastic casing 3/8" 12 bar 011x16 mm Width (080072,080073 Width (080077) Depth Height (08 0072,08 0073) Height (08 0077) maximum operating pressure (08 0072,08 0073) maximum operating pressure (08 0077) usable hose length 080072 080073 080077 08 0240_4 08 0245_4 08 0077 917 080073
