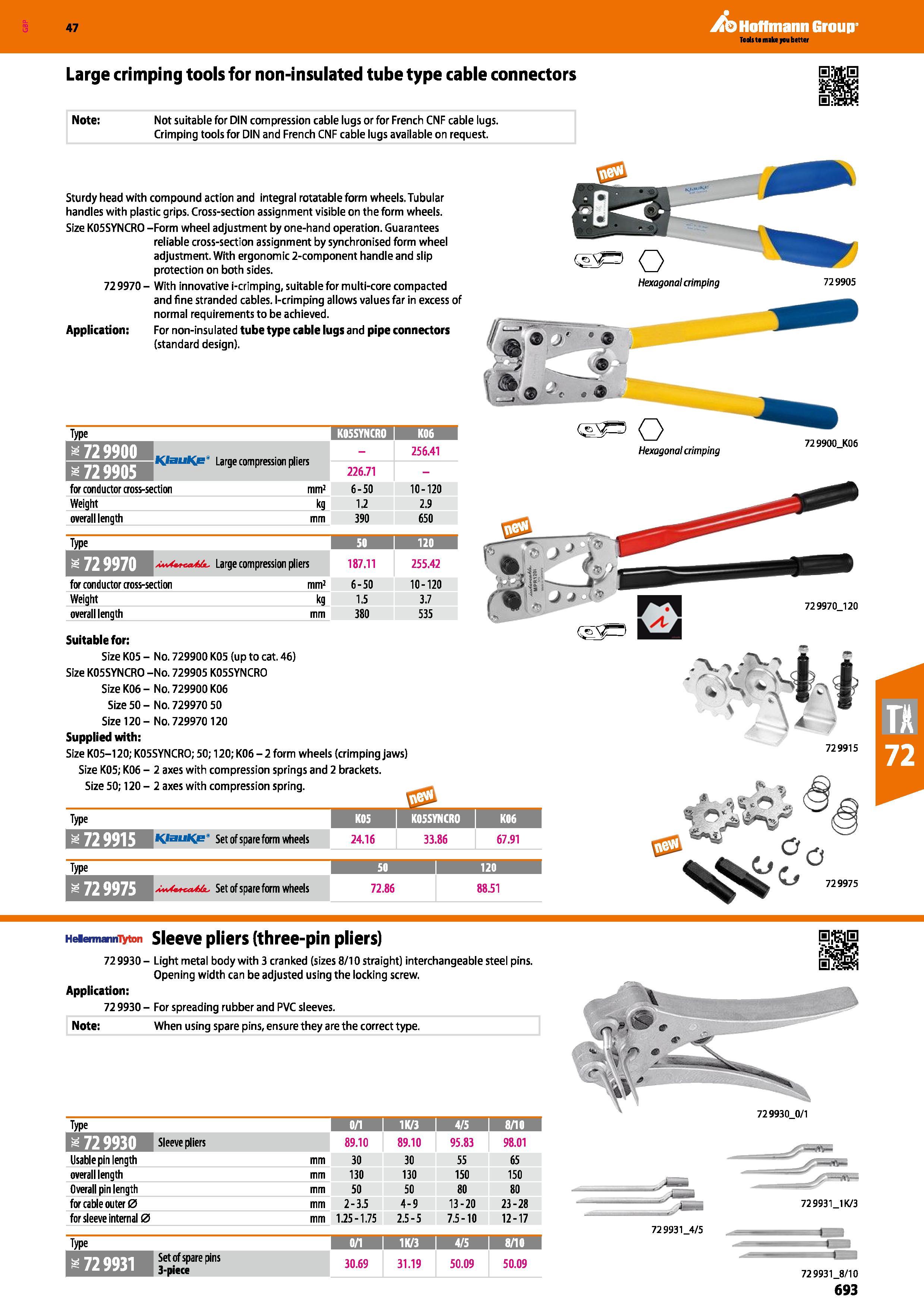

Hoffmann Group 47 Large crimping tools for non-insulated tube type cable connectors Pii Note: Not suitable for DIN compression cable lugs or for French CNF cable lugs. Crimping tools for DIN and French CNF cable lugs available on request. Sturdy head with compound action and integral rotatable form wheels. Tubular handles with plastic grips. Cross-section assignment visible on the form wheels. Size K05SYNCRO -Form wheel adjustment by one-hand operation. Guarantees reliable cross-section assignment by synchronised form wheel adjustment. With ergonomic 2-component handle and slip protection on both sides. 729970- With innovative i-crimping, suitable for multi-core compacted and fine stranded cables. I-crimping allows values far in excess of normal requirements to be achieved. Application: For non-insu lated tube type cable lugs and pipe connectors (standard design). Type K05SYNCR0 IBS 72 9900 KfaiiKe’ Large compression pliers - 256.41 -729905 226.71 - for conductor cross-section mm1 6-50 10-120 Weight kg 1.2 2.9 overall length mm 390 650 Type 50 I 120 i 72 9970 1 MvfvmU&u Large compression pliers 187.11 255.42 for conductor cross-section mm1 6-50 10-120 Weight kg 1.5 3.7 overall length mm 380 535 Suitable for: Size K05 - No. 729900 K05 (up to cat. 46) Size K05SYNCRO -No. 729905 KOSSYNCRO Size K06 - No. 729900 K06 Size 50 - No. 729970 50 Size 120- No. 729970 120 Supplied with: Size K05-120; KOSSYNCRO; 50; 120; K06 - 2 form wheels (crimping jaws) Size K05; K06 - 2 axes with compression springs and 2 brackets. Size 50; 120-2 axes with compression spring. O Hexagonal crimping 72 990O_KO6 729970_120 729915 Type K05 K05SYNCR0 K 06 72 9915 KfauKe Set of spare form wheels 24.16 33.86 67.91 Type SO i 120 729975 oMl. Set of spare form wheels 72.86 88.51 Helervnanniyton Sleeve pliers (three-pin pliers) 72 9930 - Light metal body with 3 cranked (sizes 8/10 straight interchangeable steel pins. Opening width can be adjusted using the locking screw. Application: 72 9930 - For spreading rubber and PVC sleeves. Note: When using spare pins, ensure they are the correct type. Hexagonal crimping 729905 Type 0/1 IK/3 I 4/5 I 8/10 k 72 9930 E99 89.10 89.10 95.83 98.01 Usable pin length mm 30 30 55 65 overall length mm 130 130 150 150 Overall pin length mm 50 50 80 80 for cable outer 0 mm 2-3.5 4-9 13-20 23-28 for sleeve internal 0 mm 1.25-1.75 2.5-5 7.5-10 12-17 Type 0/1 i IK/3 1 4/5 8/10 Set of spare pins 3-piece 30.69 31.19 50.09 50.09 729931_4/5 72 9931 _1K/3 72 9931_8/10 693
