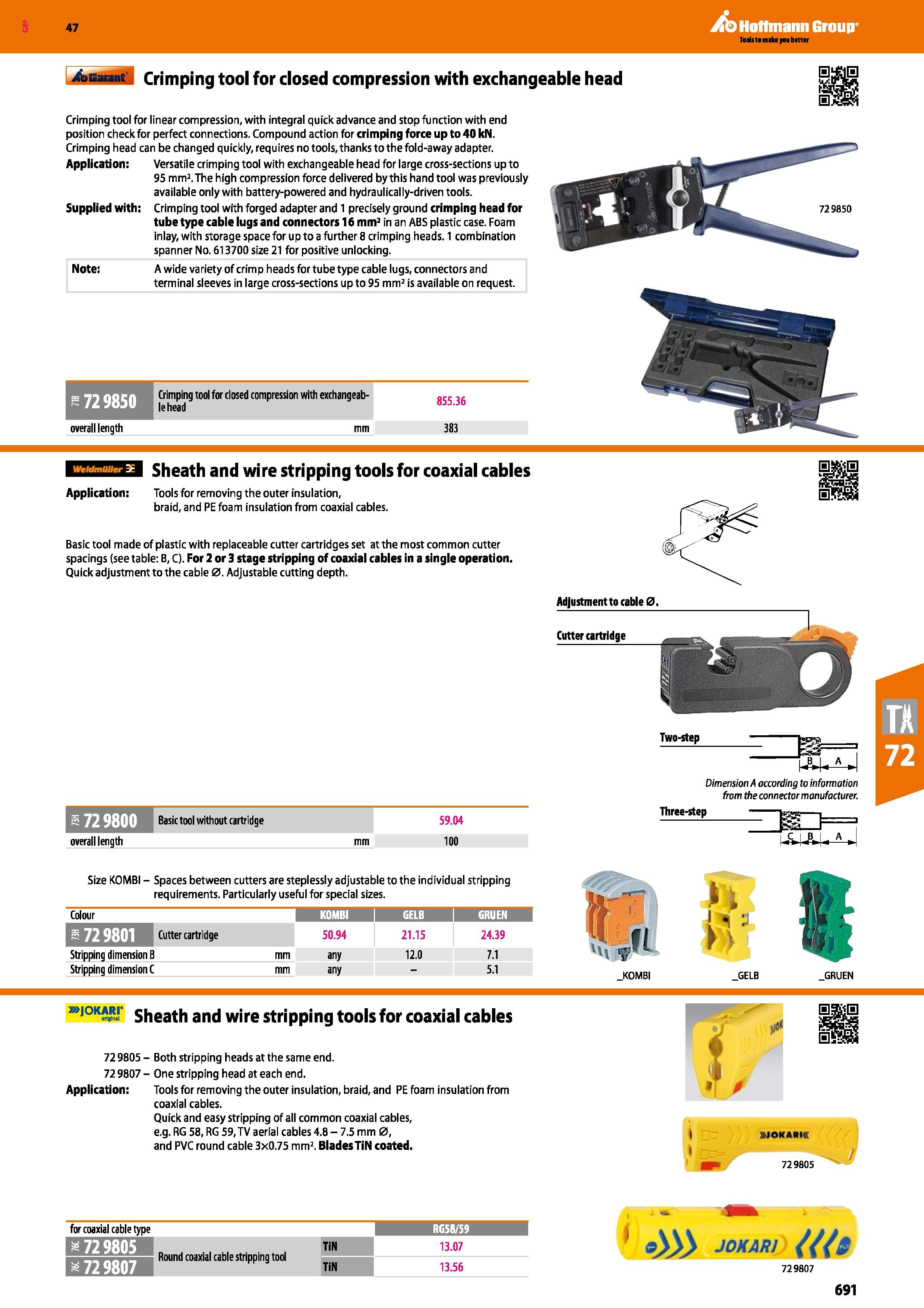

Hoffmann Group 47 4aBa vi Crimping tool for closed compression with exchangeable head Crimping tool for linear compression, with integral quick advance and stop function with end position check for perfect connections. Compound action for crimping force up to 40 kN. Crimping head can be changed quickly, requires no tools, thanks to the fold-away adapter. Application: Versatile crimping tool with exchangeable head for large cross-sections up to 95 mm2. The high compression force delivered by this hand tool was previously available only with battery-powered and hydraulically-driven tools. Supplied with: Crimping tool with forged adapter and 1 precisely ground crimping head for tube type cable lugs and connectors 16 mm3 in an ABS plastic case. Foam inlay, with storage space for up to a further 8 crimping heads. 1 combination spanner No. 613700 size 21 for positive unlocking. Note: A wide variety of crimp heads for tube type cable lugs, connectors and terminal sleeves in large cross-sections up to 95 mm2 is available on request. "72 9850 Crimping tool for closed compression with exchangeable head 855.36 overall length mm 383 Sheath and wire stripping tools for coaxial cables Application: Tools for removing the outer insulation, braid, and PE foam insulation from coaxial cables. Basic tool made of plastic with replaceable cutter cartridges set at the most common cutter spacings (see table: B, C). For 2 or 3 stage stripping of coaxial cables in a single operation. Quick adjustment to the cable 0. Adjustable cutting depth. Two-step Dimension A according to information from the connector manufacturer. 729800 overall length Basic tool without cartridge 59.04 100 Three-step Size KOMBI - Spaces between cutters are steplessly adjustable to the individual stripping requirements. Particularly useful for special sizes. Colour GELB GRUEN 1 72 9801 50.94 21.15 24.39 Stripping dimension B mm any 12.0 7.1 Stripping dimension C mm any - 5.1 M \\v _KOMBI n \ GELB _GRUEN > JOKARIe original Sheath and wire stripping tools for coaxial cables 729805 - Both stripping heads at the same end. 72 9807 - One stripping head at each end. Application: Tools for removing the outer insulation, braid, and PE foam insulation from coaxial cables. Quick and easy stripping of all common coaxial cables, e.g. RG 58, RG 59, TV aerial cables 4.8 - 7,5 mm 0, and PVC round cable 3x0.75 mm2. Blades TiN coated. JOKA 729805 for coaxial cable type RG58/59 k 72 9805 Round coaxial cable stripping tool TiN 13.07 729807 TiN 13.56 JOKAR1 729807 691 729850
