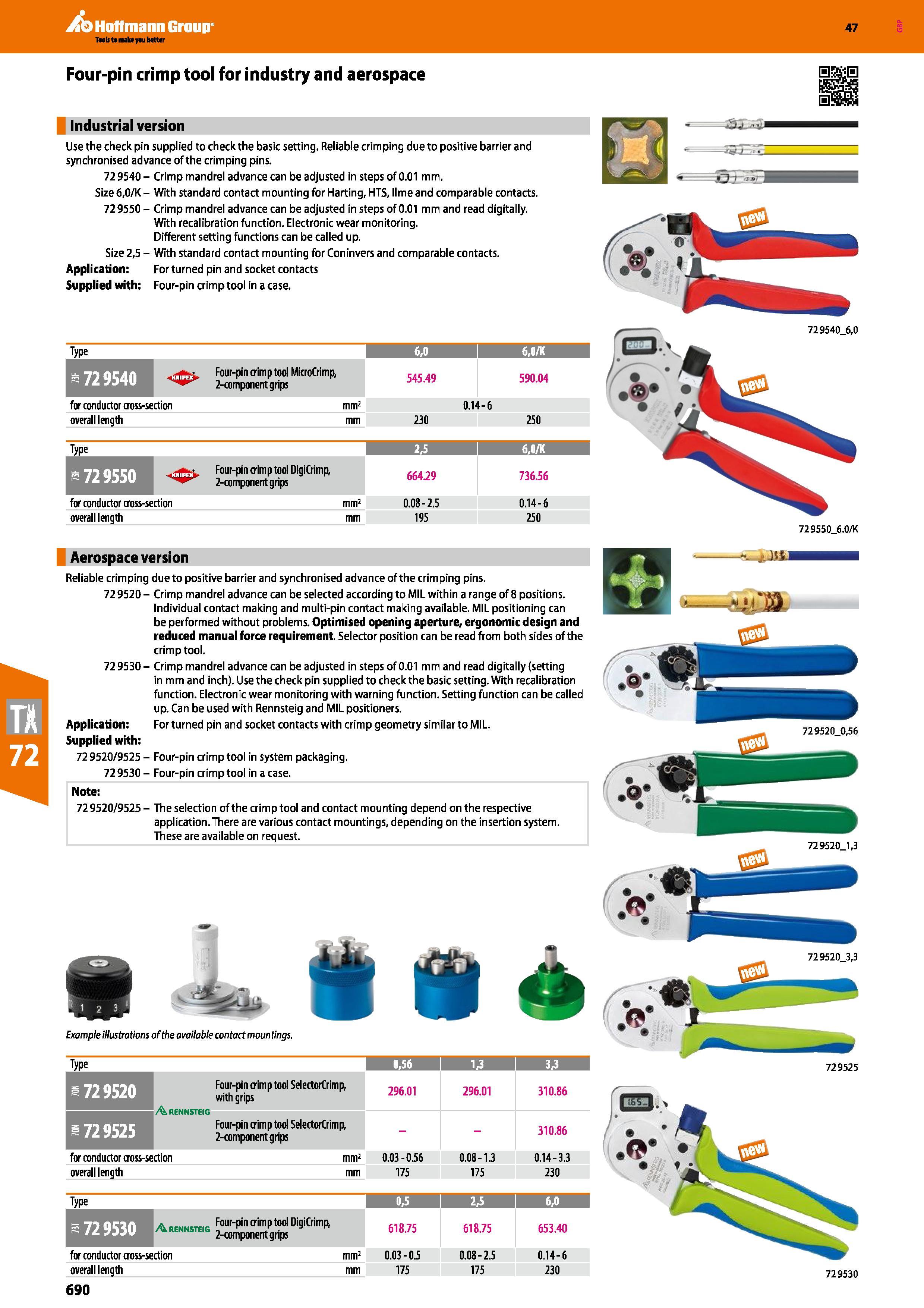

Hoffmann Group 47 Four-pin crimp tool for industry and aerospace Industrial version Use the check pin supplied to check the basic setting. Reliable crimping due to positive barrier and synchronised advance of the crimping pins. 729540 - Crimp mandrel advance can be adjusted in steps of 0.01 mm. Size 6,0/K - With standard contact mounting for Harting, HTS, lime and comparable contacts. 729550 - Crimp mandrel advance can be adjusted in steps of 0.01 mm and read digitally. With recalibration function. Electronic wear monitoring. Different setting functions can be called up. Size 2,5 - With standard contact mounting for Coninvers and comparable contacts. Application: For turned pin and socket contacts Supplied with: Four-pin crimp tool in a case. Type 6,0 Four-pin crimptool MicroCrimp, 2-component grips 545.49 590.04 for conductor cross-section mm2 0.14-6 overall length mm 230 250 Type 2,5 fi 72 9550 Four-pin crimptool DigiCrimp, 2-component grips 664.29 736.56 for conductor cross-section mm2 0.08-2.5 0.14-6 overall length mm 195 250 Aerospace version Reliable crimping due to positive barrier and synchronised advance of the crimping pins. 72 9520 - Crimp mandrel advance can be selected according to MIL within a range of 8 positions. Individual contact making and multi-pin contact making available. MIL positioning can be performed without problems. Optimised opening aperture, ergonomic design and reduced manual force requirement. Selector position can be read from both sides of the crimp tool. 729530- Crimp mandrel advance can be adjusted in steps of 0.01 mm and read digitally (setting in mm and inch). Use the check pin supplied to check the basic setting. With recalibration function. Electronic wear monitoring with warning function. Setting function can be called up. Can be used with Rennsteig and MIL positioners. Application: For turned pin and socket contacts with crimp geometry similar to MIL. Supplied with: 729520/9525 - Four-pin crimp tool in system packaging. 72 9530 - Four-pin crimp tool in a case. Note: 729520/9525- The selection of the crimp tool and contact mounting depend on the respective application. There are various contact mountings, depending on the insertion system. These are available on request. Y Example illustrations of the available contact moun tings. Type 0,56 I 1,3 3,3 b 72 9520 Four-pin crimp tool SelectorCrimp, with grips 296.01 296.01 310.86 s 72 9525 RENNSTEIG Four-pin crimp tool SelectorCrimp, 2-component grips 310.86 for conductor cross-section mm2 0.03-0.56 0.08-1.3 0.14-3.3 overall length mm 175 175 230 Type 0,5 2,5 j 6,0 E 72 9530 A RENNSTEIG Four-pin crimptool DigiCrimp 2-component grips 618.75 618.75 653.40 for conductor cross-section mm2 0.03-0.5 0.08-2.5 0.14-6 overall length mm 175 175 230 690 72 9540_6,0 729550_6.0/K 72 9520_0,56 729520_1,3 72 9520_3,3 729525 729530
