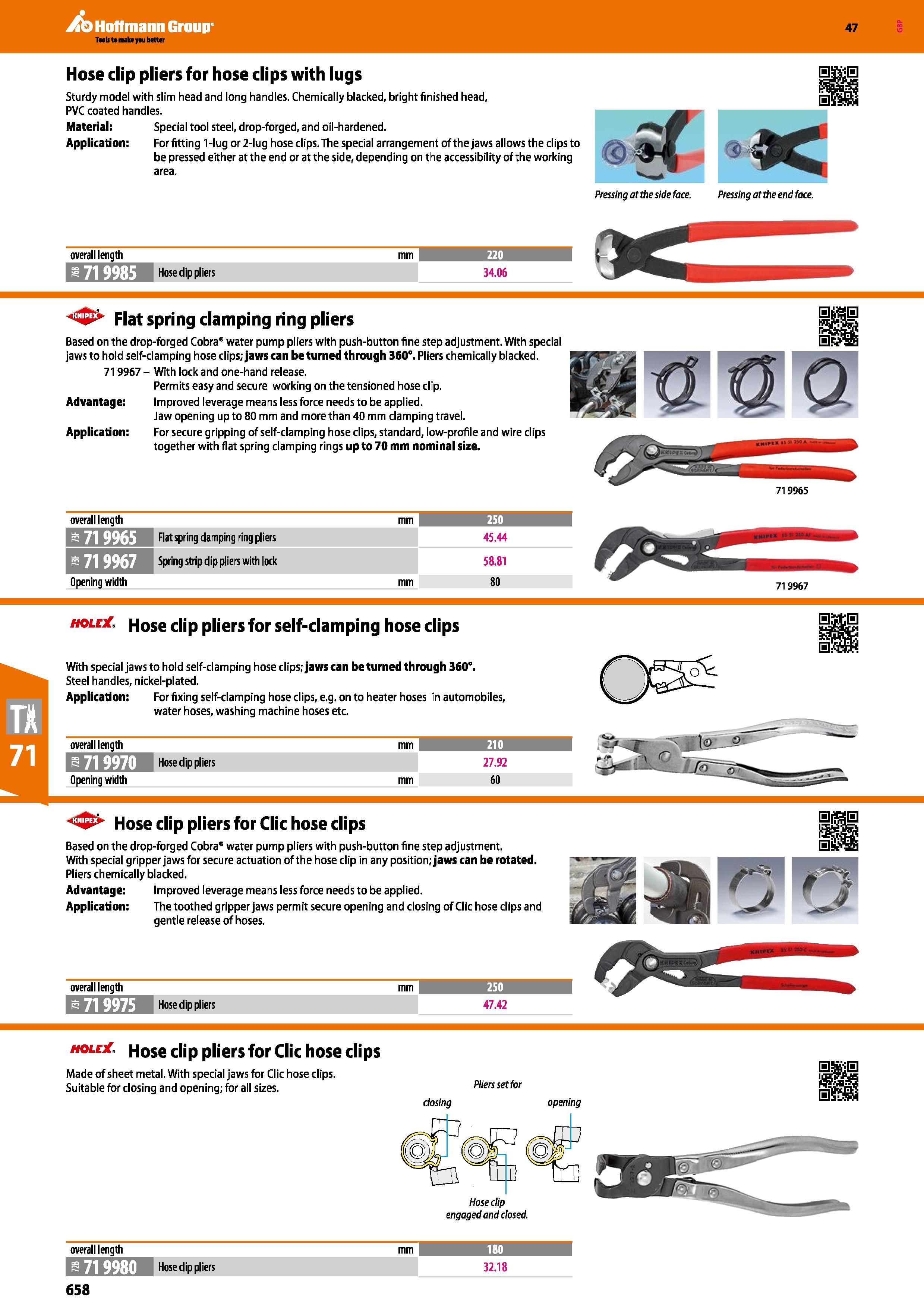

Hoffmann Group 47 Hose clip pliers for hose clips with lugs Sturdy model with slim head and long handles. Chemically blacked, bright finished head, PVC coated handles. Material; Special tool steel, drop-forged, and oil-hardened. Application: For fitting 1 -lug or 2-lug hose clips. The special arrangement of the jaws allows the clips to be pressed either at the end or at the side, depending on the accessibility of the working area. B Pressing at the side face. Pressing at the end face. overall length mm 220 j Hose clip pliers 34.06 Flat spring clamping ring pliers Based on the drop-forged Cobra” water pump pliers with push-button fine step adjustment. With special jaws to hold self-damping hose clips; jaws can be turned through 360°. Pliers chemically blacked. 719967 - With lock and one-hand release. Permits easy and secure working on the tensioned hose clip. Advantage: Improved leverage means less force needs to be applied. Jaw opening up to 80 mm and more than 40 mm clamping travel. Application: For secure gripping of self-clamping hose clips, standard, low-profile and wire clips together with flat spring clamping rings up to 70 mm nominal size. 719965 overall length mm 250 I a 719965 Flat spring damping ring pliers 45.44 fi 719967 Spring strip dip pliers with lock 58.81 Opening width 80 71 9967 hole . Hose clip pliers for self-damping hose clips With special jaws to hold self-damping hose clips; jaws can be turned through 360°. Steel handles, nickel-plated. Application: For fixing self-damping hose clips, e.g. on to heater hoses in automobiles, water hoses, washing machine hoses etc. overall length mm 210 I Hose clip pliers 27.92 Opening width 60 Hose clip pliers for Clic hose clips Based on the drop-forged Cobra" water pump pliers with push-button fine step adjustment. With special gripper jaws for secure actuation of the hose clip in any position; jaws can be rotated. Pliers chemically blacked. Advantage: Improved leverage means less force needs to be applied. Application: The toothed gripper jaws permit secure opening and closing of Clic hose clips and gentle release of hoses. overall length mm 250 I a 719975 47.42 holex. Hose clip pliers for Clic hose clips Made of sheet metal. With special jaws for Clic hose clips. Suitable for closing and opening; for all sizes. Pliers set for closing opening Hose clip engaged and closed. overall length mm 180 i 1 fi 719980 32.18 658
