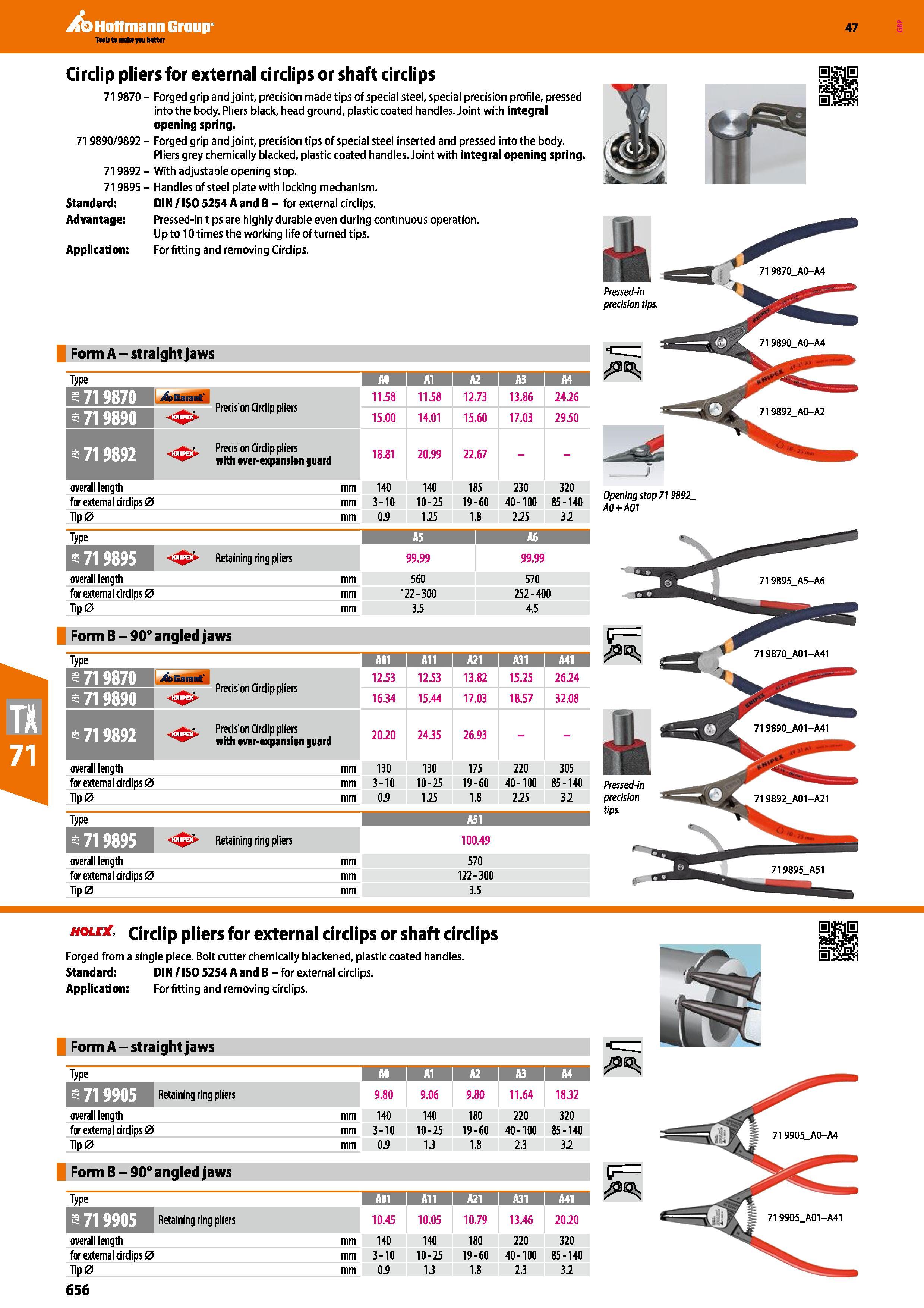

Hoffmann Group 47 Circlip pliers for external cirdips or shaft cirdips 719870 - Forged grip and joint, precision made tips of special steel, special precision profile, pressed into the body. Pliers black, head ground, plastic coated handles. Joint with integral opening spring. 719890/9892 - Forged grip and joint, precision tips of special steel inserted and pressed into the body. Pliers grey chemically blacked, plastic coated handles. Joint with integral opening spring. 719892 - With adjustable opening stop. 719895 - Handles of steel plate with locking mechanism. Standard: DIN /ISO 5254 A and B- for external circlips. Advantage: Pressed-in tips are highly durable even during continuous operation. Upto 10 times the working life of turned tips. Application: For fitting and removing Circlips. IT Form A - straight jaws Type AO 1 1 1 A2 1 B I A4 s 719870 Gamut" 11.58 11.58 12.73 13.86 24.26 b 719890 _ . Precision Circlip pliers 15.00 14.01 15.60 17.03 29.50 B 719892 Precision Circlip pliers with over-expansion guard 18.81 20.99 22.67 overall length mm 140 140 185 230 320 for external circlips 0 1 mm 3-10 10-25 19-60 40-100 85-140 Tip0 mm 0.9 1.25 1.8 2.25 3.2 Type A5 1 A6 Retaining ring pliers 99.99 99.99 overall length mm 560 570 for external circlips 0 1 mm 122-300 252 - 400 Tip0 mm 3.5 4.5 Opening stop 77 9892_ A0+A01 Form B - 90° angled jaws Type A01 I All 1 A21 1 A31 I Ml 1 s 719870 i&Gaiant" 12.53 12.53 13.82 15.25 26.24 b 719890 _ . Precision Circlip pliers 16.34 15.44 17.03 18.57 32.08 b 719892 Precision Circlip pliers with over-expansion guard 20.20 24.35 26.93 overall length mm 130 130 175 220 305 for external circlips 0 1 mm 3-10 10-25 19-60 40-100 85-140 Tip0 mm 0.9 1.25 1.8 2.25 3.2 Type A51 b 719895 Retaining ring pliers 100.49 overall length mm 570 for external circlips 0 1 mm 122-300 Tip0 mm 3.5 holcX, circlip pliers for external circlips or shaft circlips Forged from a single piece. Bolt cutter chemically blackened, plastic coated handles. Standard: DIN /ISO 5254 A and B - for external circlips. Application: For fitting and removing circlips. Form A - straight jaws Form B - 90° angled jaws Type 1 A0 A1 2 i 1 A4 Retaining ring pliers 9.80 9.06 9.80 11.64 18.32 overall length mm 140 140 180 220 320 for external circlips 0 mm 3-10 10-25 19-60 40-100 85-140 Tip0 mm 0.9 1.3 1.8 2.3 3.2 Type A01 I All 1 A21 1 A31 I Ml I Retaining ring pliers 10.45 10.05 10.79 13.46 20.20 overall length mm 140 140 180 220 320 for external circlips 0 mm 3-10 10-25 19-60 40-100 85-140 Tip0 mm 0.9 1.3 1.8 2.3 3.2 656 Pressed-in precision tips. 71 9870 A0-A4 71 9890 A0-A4 7 9892 A0-A2 Pressed-in precision tips. 71 9895_A5-A6 71 9890_A01-A41 71 9892_A01-A21 71 9895_A51
